Canister Purge Solenoid: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the air cleaner box.
3. Disconnect the electrical connector.
4. Disconnect the vacuum hoses.

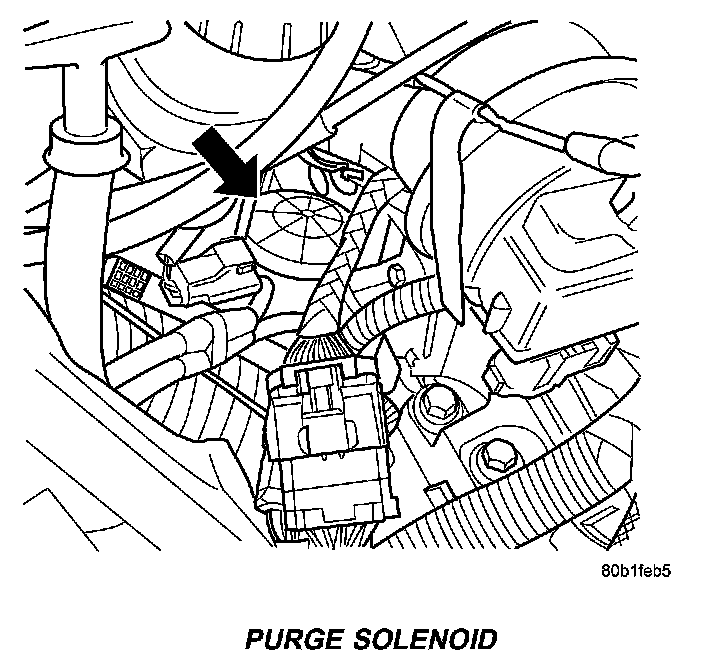

Purge Solenoid:

5. Remove purge solenoid from the bracket.

INSTALLATION
1. Install purge solenoid onto bracket.
2. Connect the vacuum hoses.
3. Connect the electrical connector.
4. Install the air cleaner box.
5. Connect the negative battery cable.
