Liquid Line

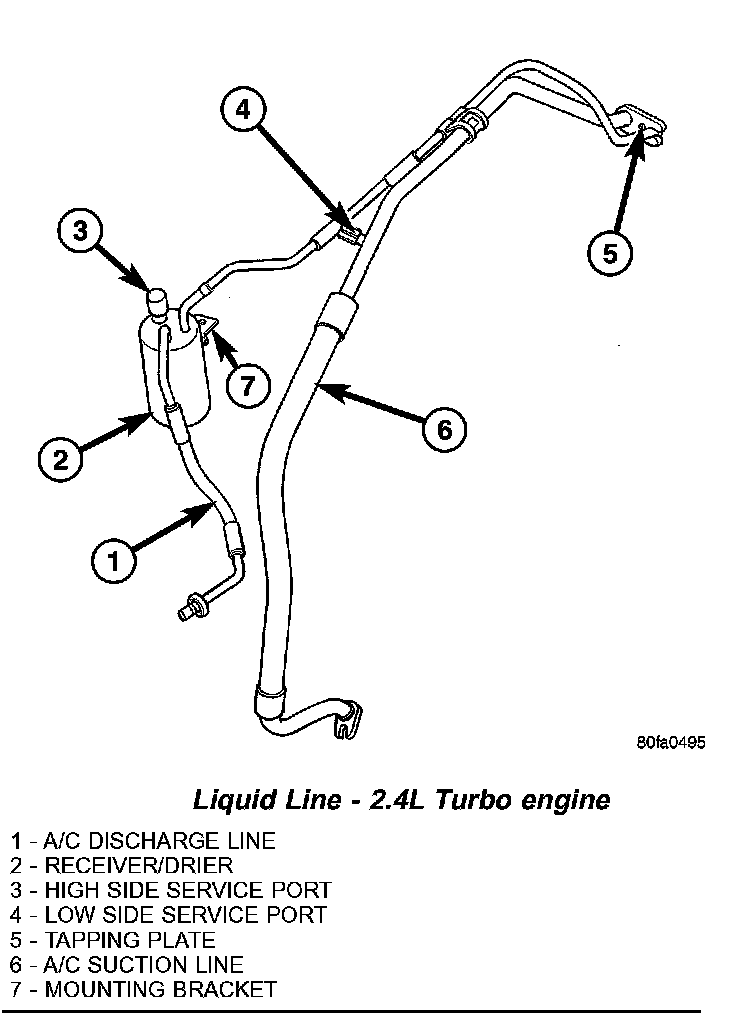

Liquid Line - 2.4L Turbo Engine:

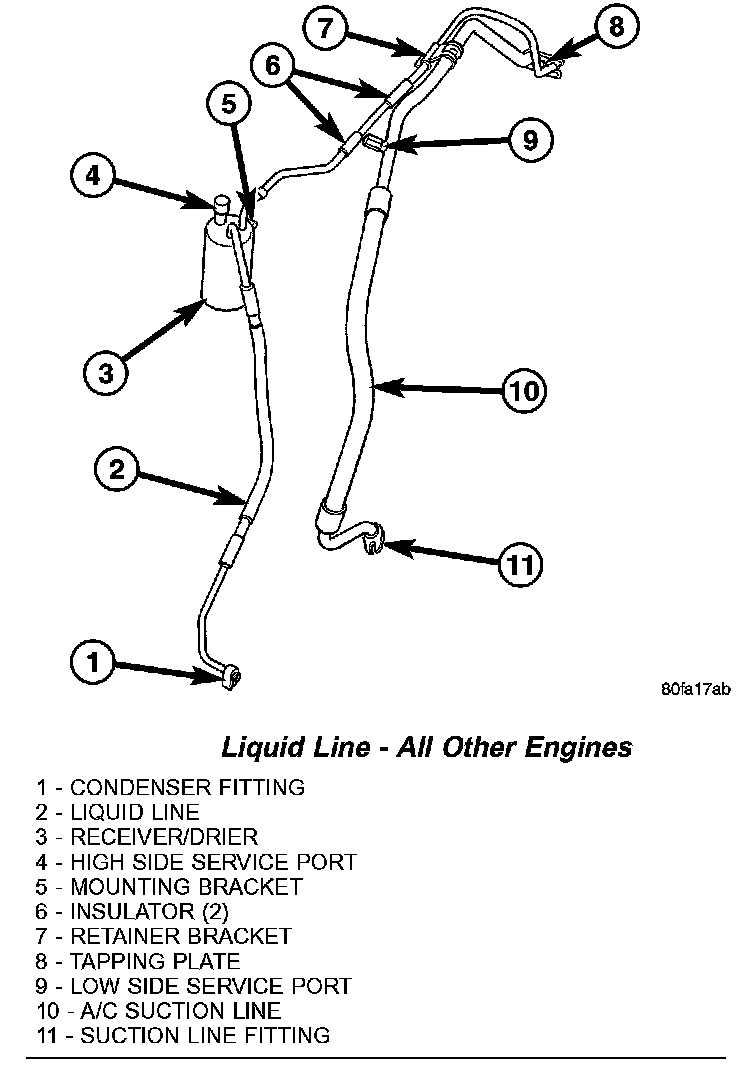

Liquid Line - All Other Engines:

The liquid line is the refrigerant line that goes from the A/C condenser to the A/C expansion valve. The receiver/drier and the high side service port are integral to the liquid line.

CAUTION: Use only O-ring seals specified for the vehicle. Failure to use correct O-ring seal will cause the refrigerant system connection to leak.

The liquid line has no serviceable parts except the rubber O-ring seals, the service port valve core and it's protective cap. The O-ring seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant. The O-ring seals must be replaced whenever the liquid line is removed and installed.

If the liquid line is found to be leaking or is damaged, it must be replaced.
