Connector Views
Connector Views

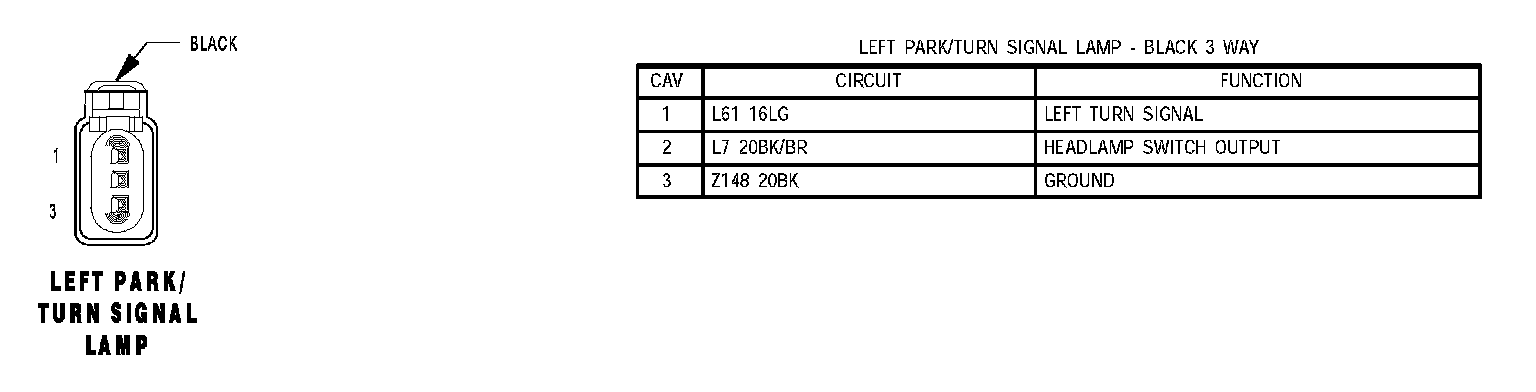

Left Park/Turn Signal Lamp:
Left Turn Lamp (Chrysler/Except JR41 Dodge):

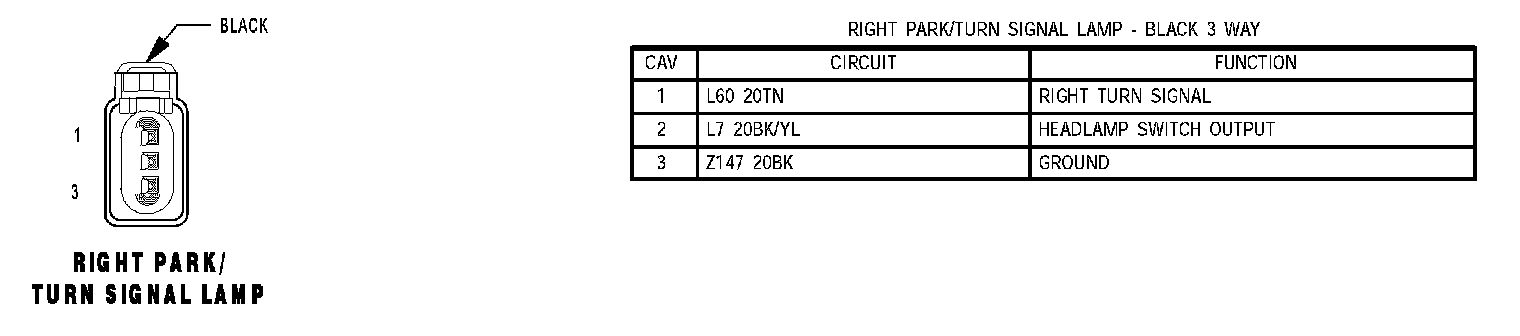

Right Park/Turn Signal Lamp:

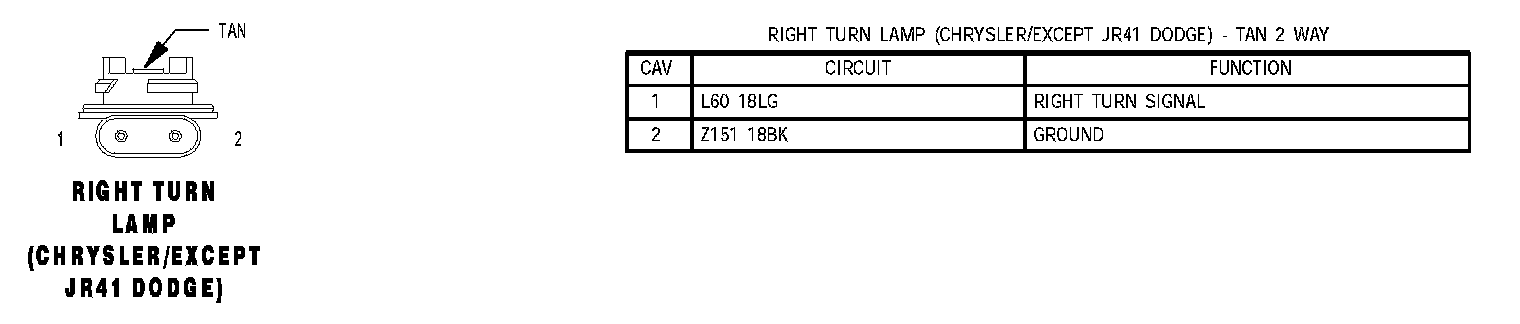

Right Turn Lamp (Chrysler/Expect JR41 Dodge):
