Horn System

CAUTION: Continuous sounding of horns will cause horn to fail.

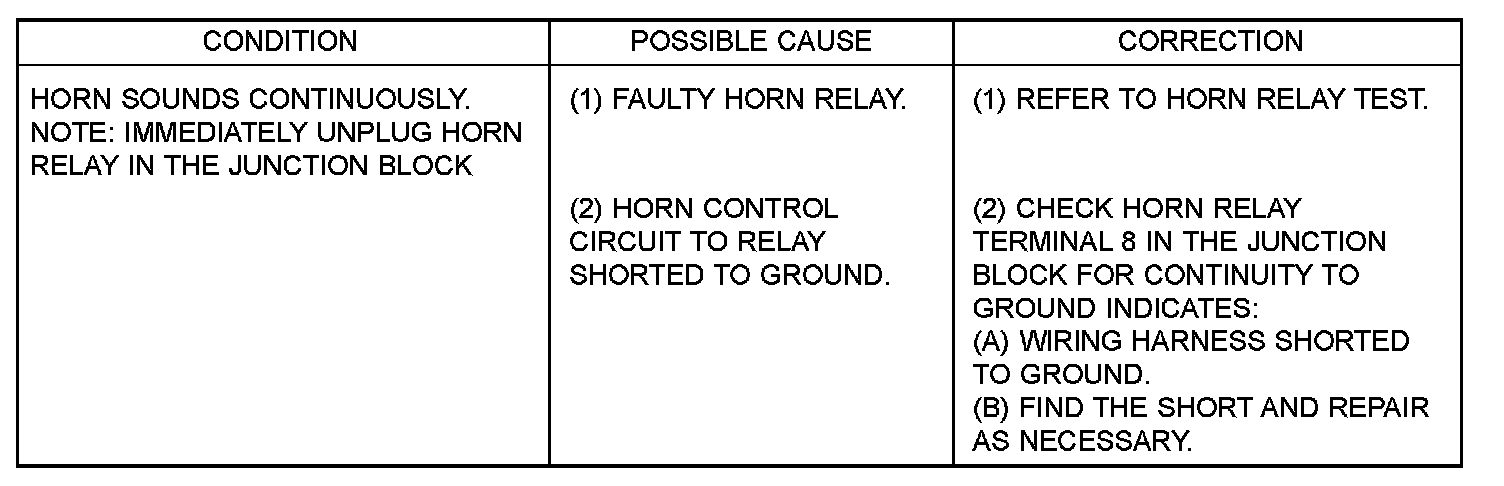

Horn System Test Part 1:

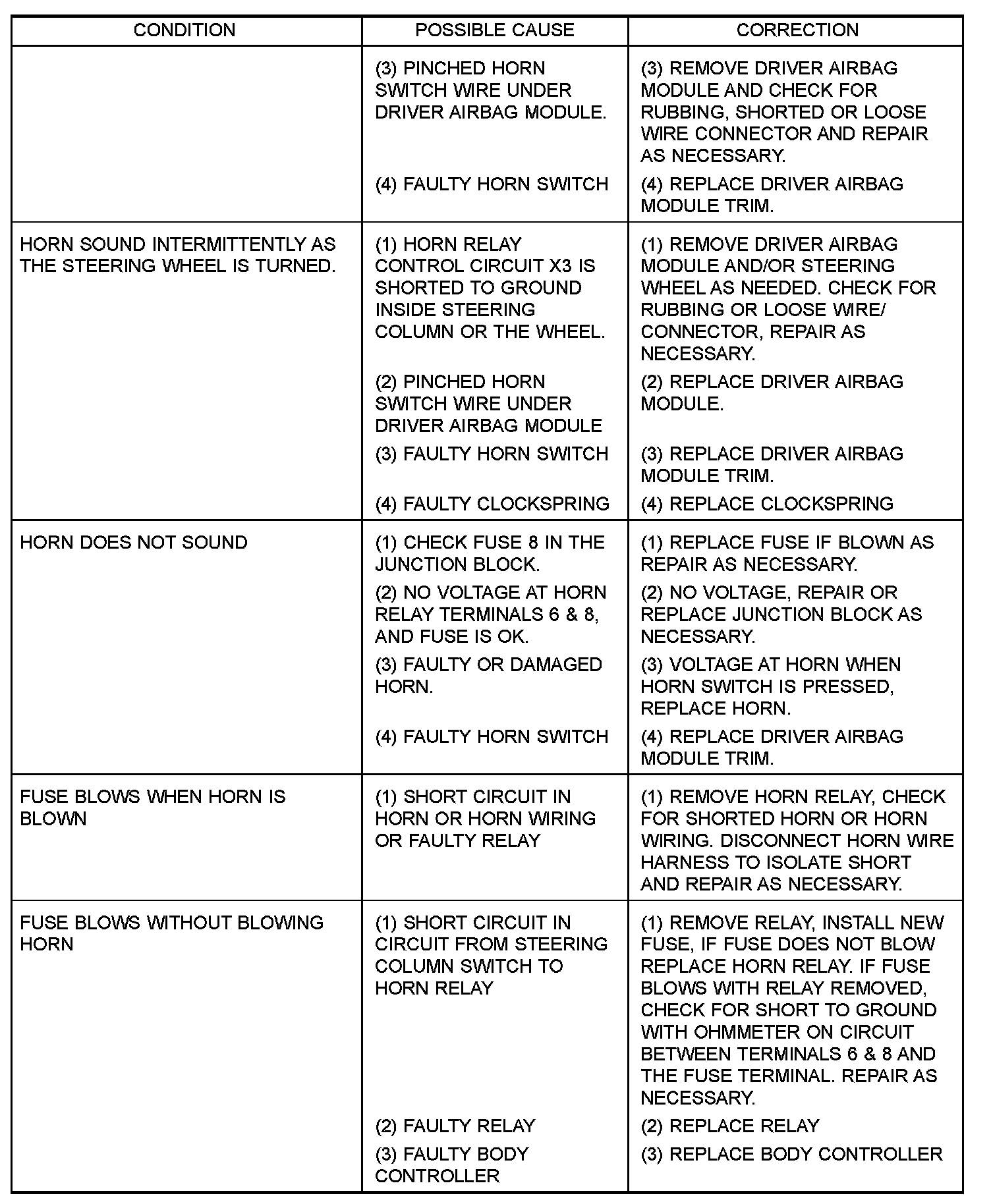

Horn System Part 2:

Check fuse 8 in the Junction Block. and refer to Horn System Test table.

Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds.
