Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Hazard Warning Lamps >> Hazard Warning Flasher >> Testing and Inspection

Hazard Warning Flasher: Testing and Inspection

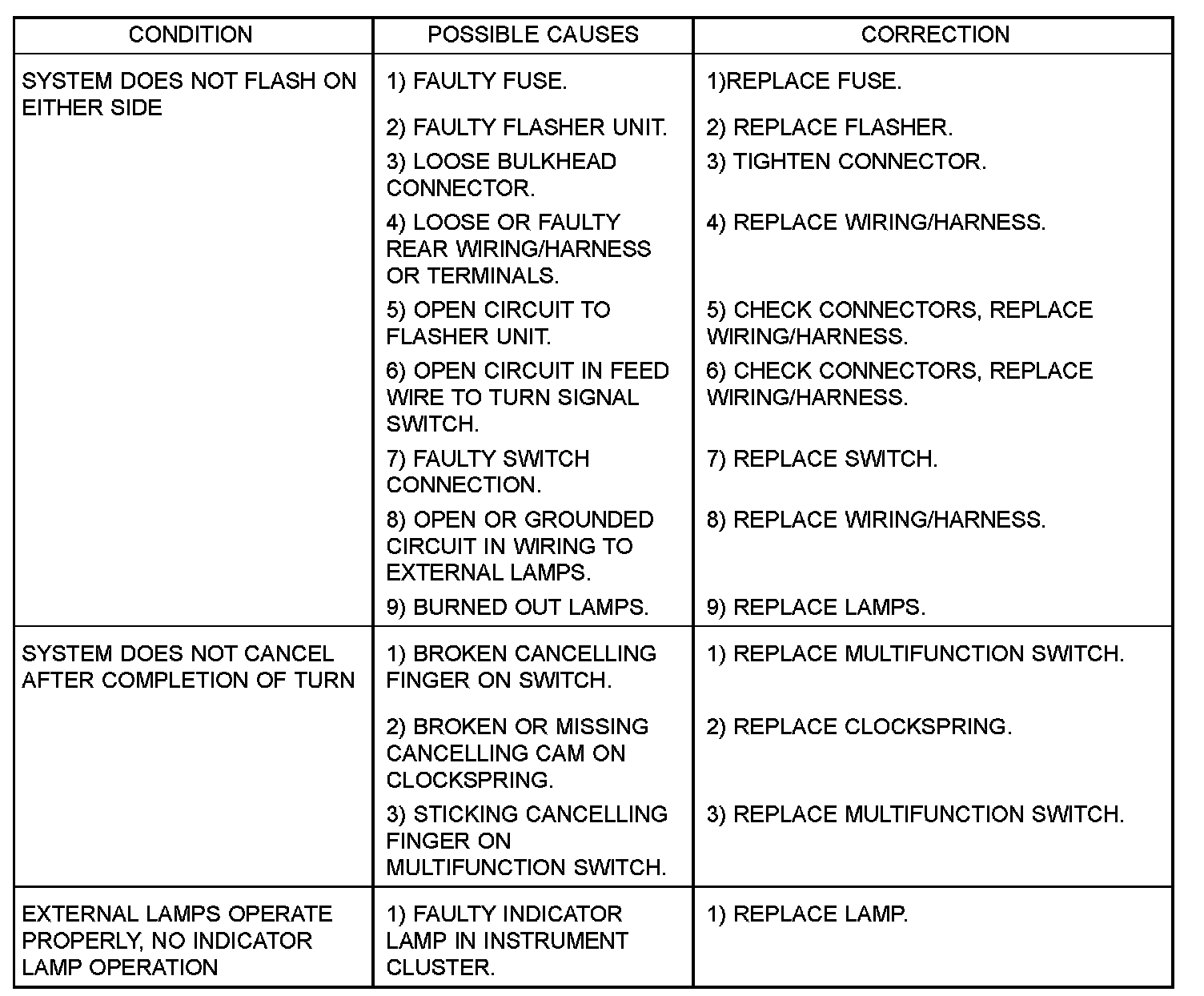

Combination Flasher Diagnosis Part 1:

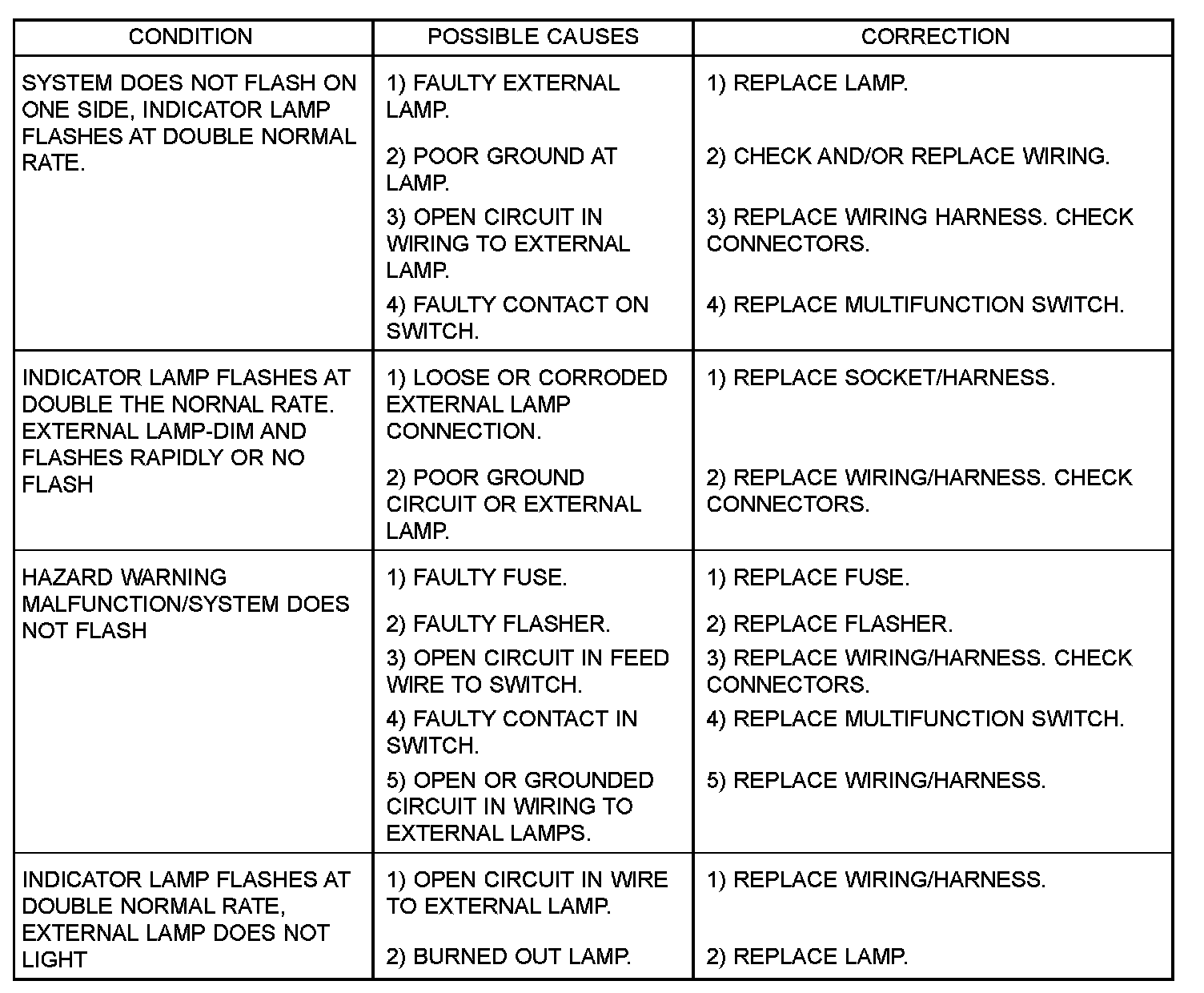

Combination Flasher Diagnosis Part 2:
