Fog Lamp Unit Alignment

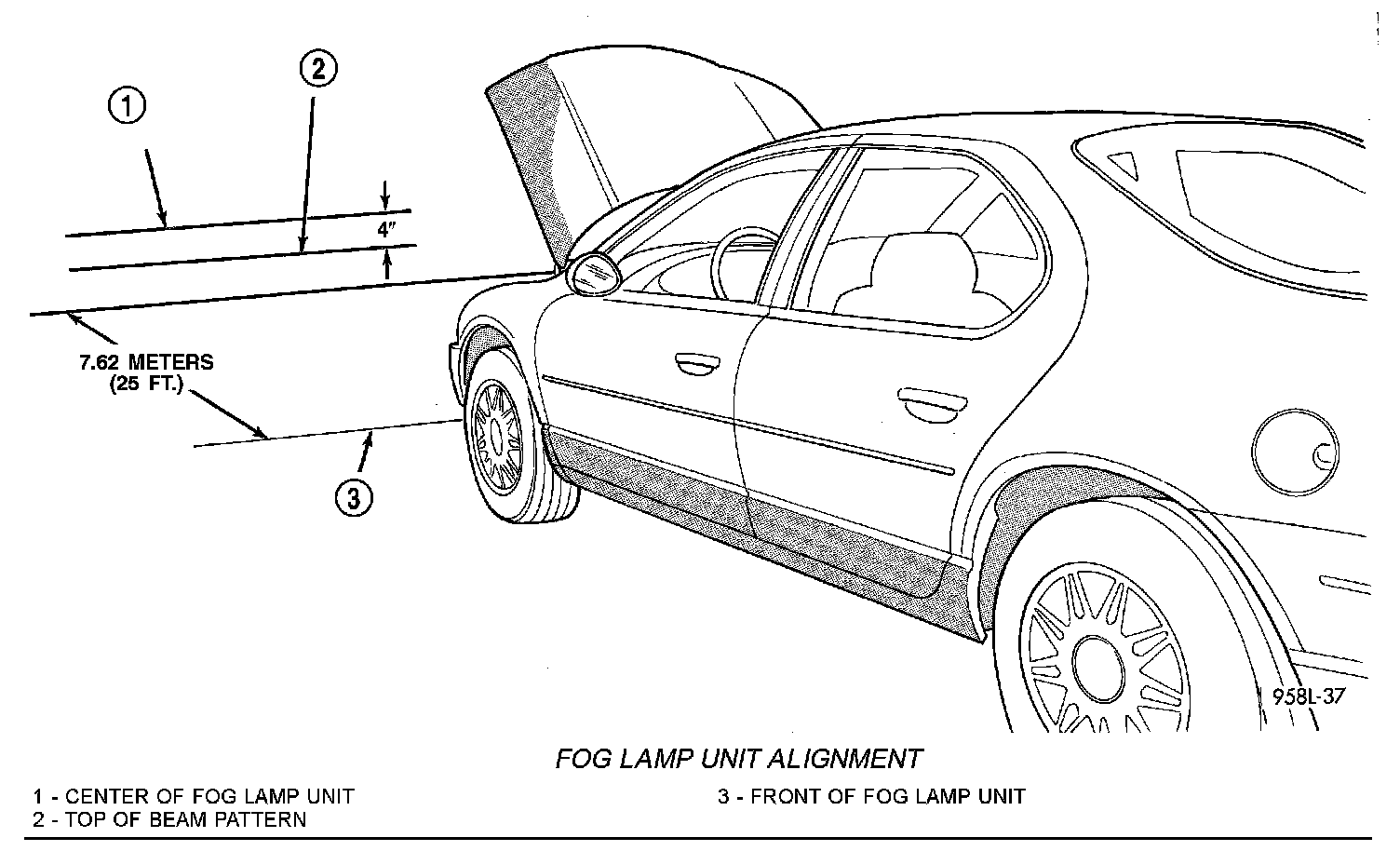

Fog Lamp Unit Alignment:

Prepare a alignment screen. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - ADJUSTMENTS). A properly aligned fog lamp unit will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead.

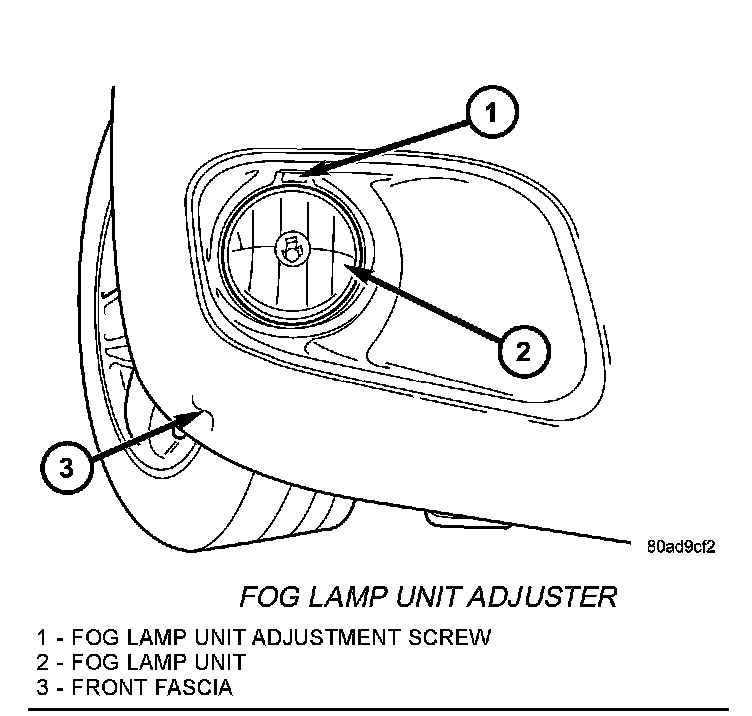

Fog Lamp Unit Adjuster:

To adjust fog lamp unit alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.
