Center Mounted Brake Lamp: Service and Repair

REMOVAL
1. Lower the convertible top.
2. Disconnect and isolate the battery negative cable.
3. Open trunk lid, and remove deck upper panel molding fasteners.
4. Pull back trunk liner to access wire harness.
5. Disconnect wire harness connector.
6. Remove molding from vehicle.

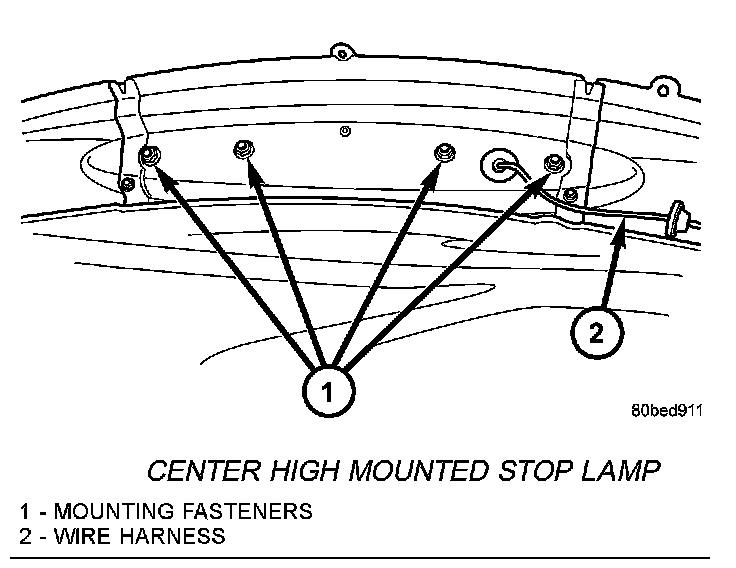

Center High Mounted Stop Lamp:

7. Remove CHMSL mounting fastener.
8. Remove CHMSL from molding.

INSTALLATION
1. Install CHMSL to molding.
2. Tighten mounting fasteners.
3. Install molding to vehicle.
4. Connect wire harness connector.
5. Place trunk liner into position.
6. Install deck upper panel molding fasteners.
7. Connect the battery negative cable.
