Floor Distribution Duct

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN AN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY OR DEATH.

1. Remove the HVAC housing from the vehicle.

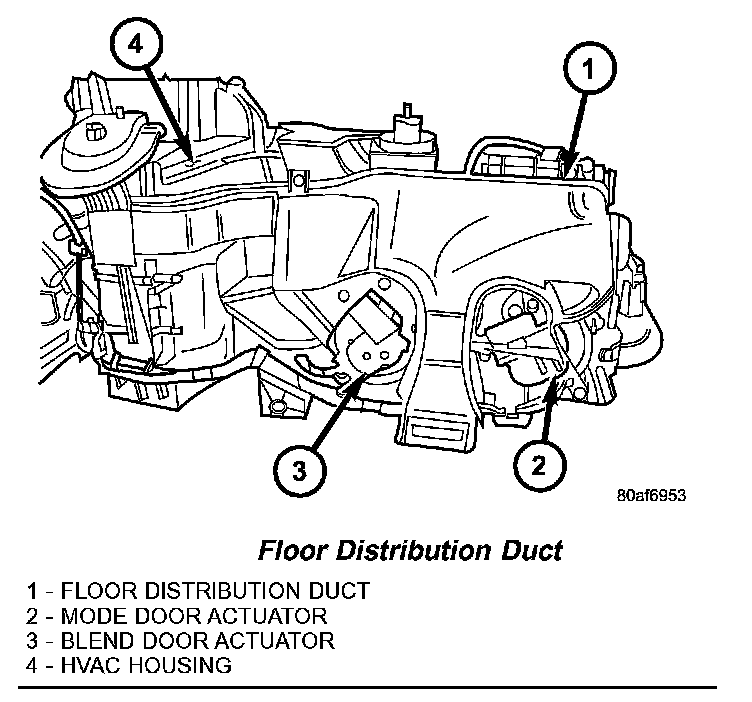

Floor Distribution Duct:

2. Remove the screws that secure the floor distribution duct to the bottom of the HVAC housing.
3. Remove the floor distribution duct from the HVAC housing.

INSTALLATION
1. Position the floor distribution duct to the bottom of the HVAC housing.
2. Install the screws that secure the floor distribution duct to the HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
3. Install the HVAC housing.
