Service Specifications
2.7L ENGINE

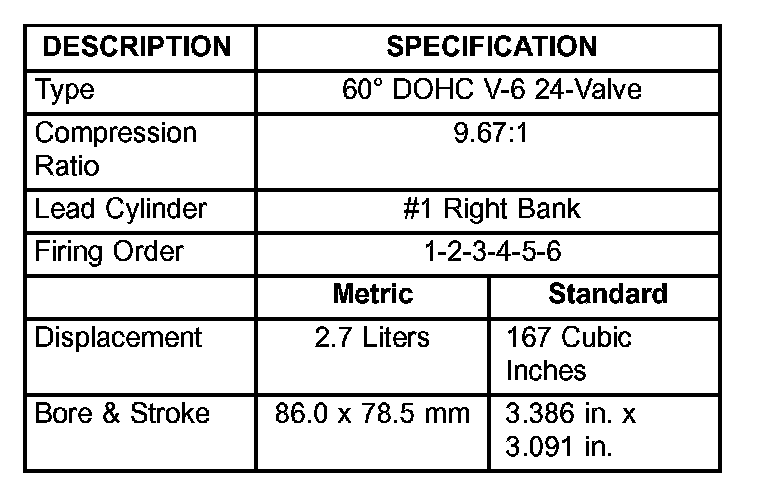

GENERAL SPECIFICATIONS

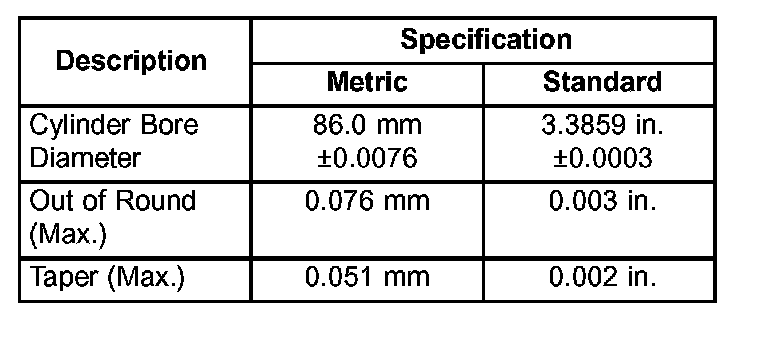

CYLINDER BLOCK

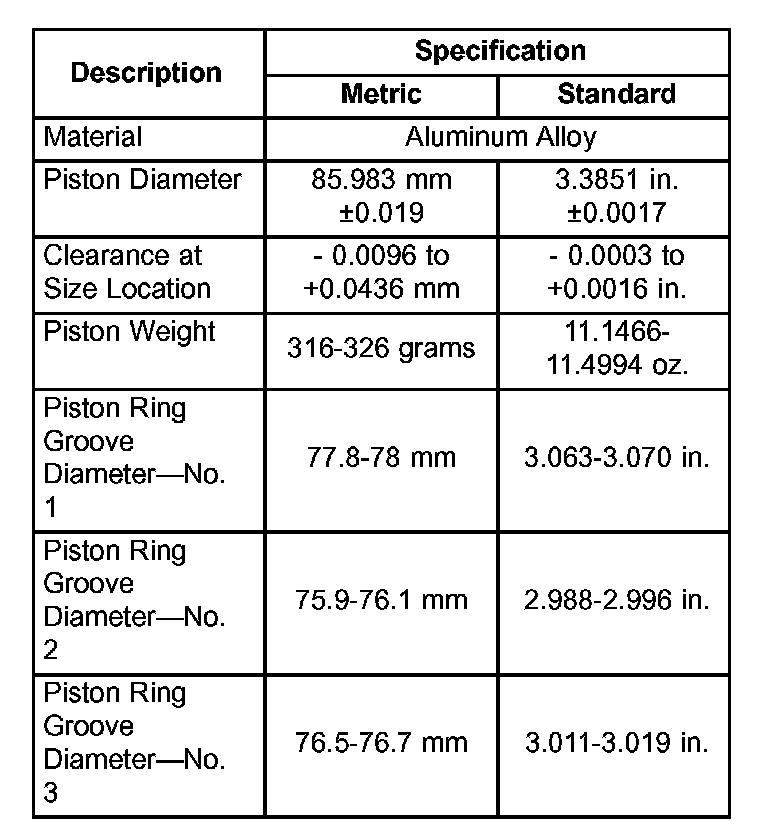

PISTONS

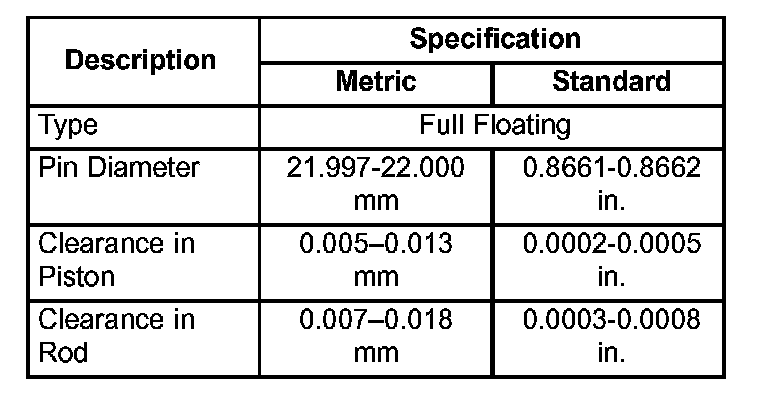

PISTON PINS

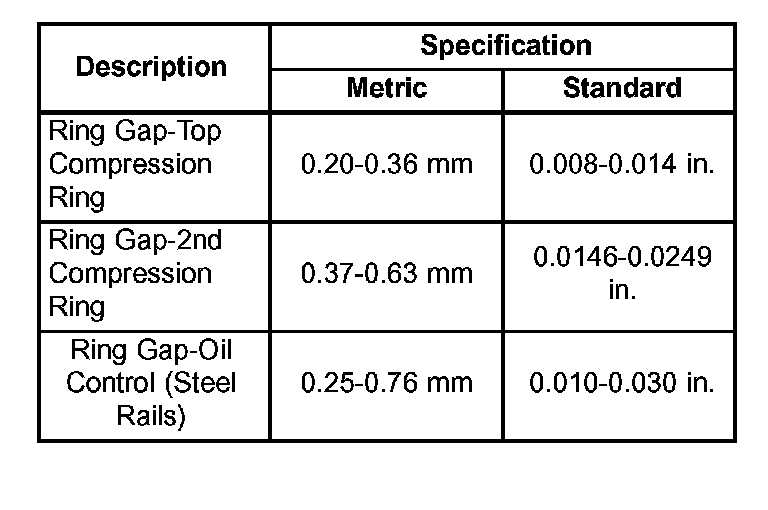

PISTON RINGS

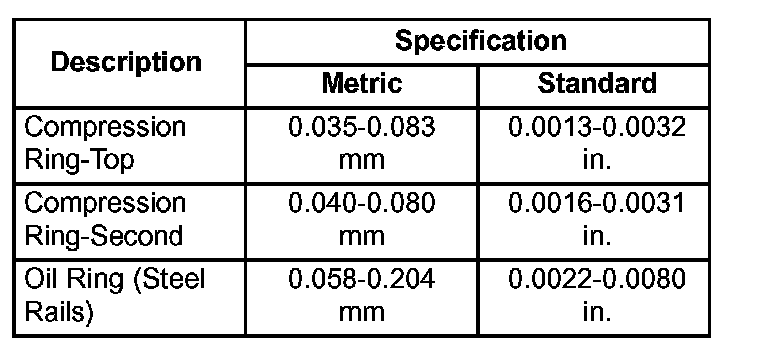

PISTON RING SIDE CLEARANCE

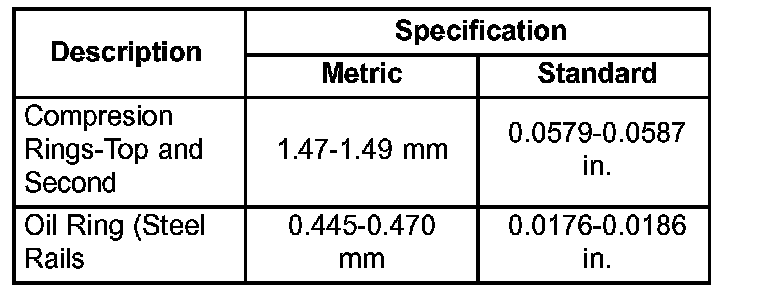

PISTON RING WIDTH

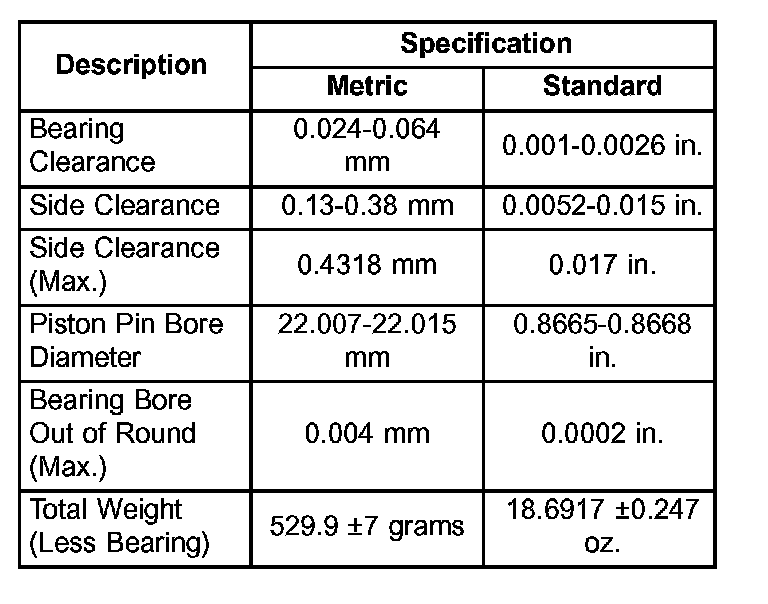

CONNECTING RODS

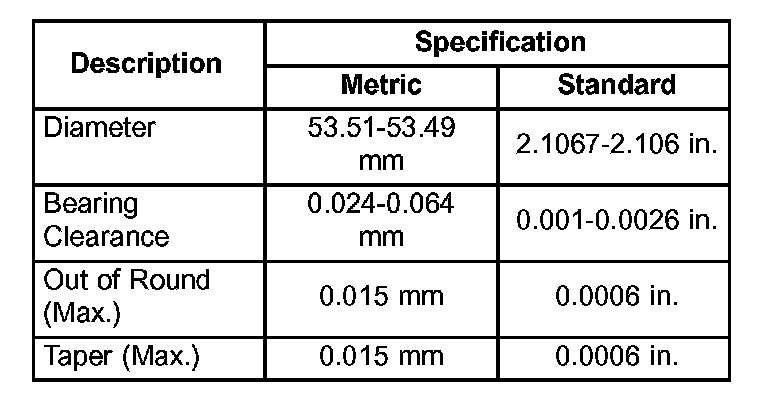

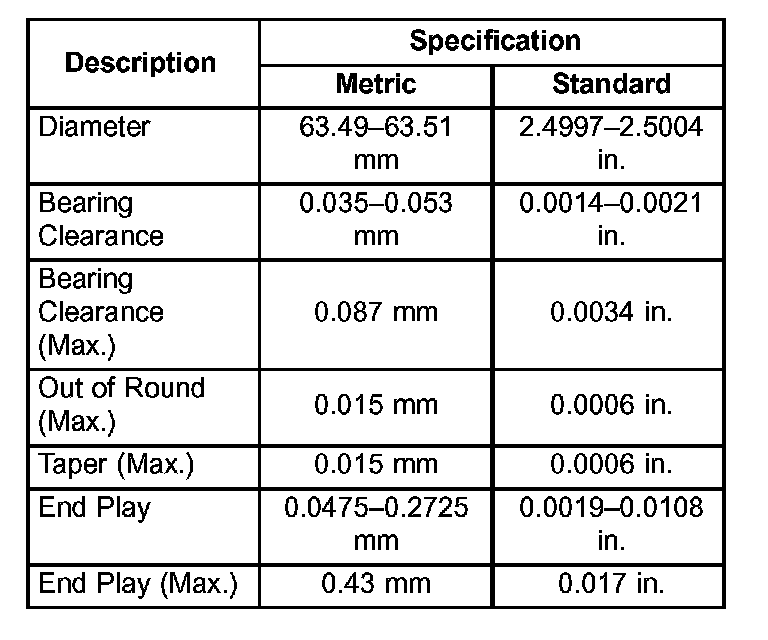

CRANKSHAFT MAIN BEARING JOURNALS
CONNECTING ROD JOURNALS

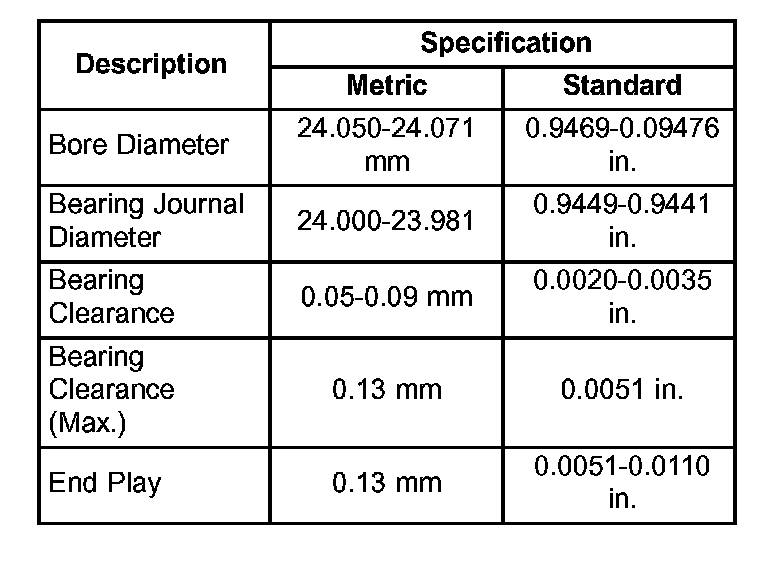

CAMSHAFT

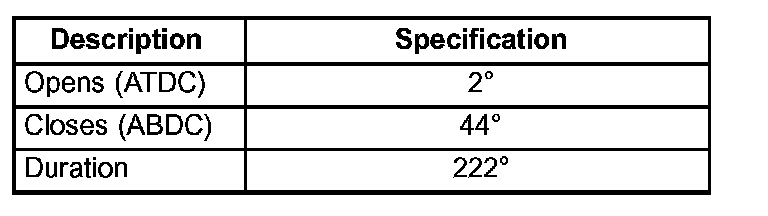

VALVE TIMING-INTAKE VALVES

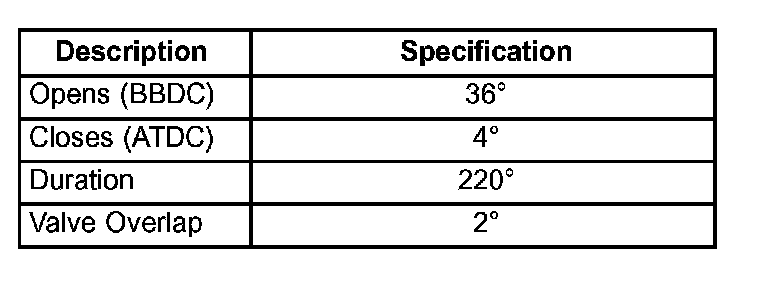

VALVE TIMING-EXHAUST VALVES

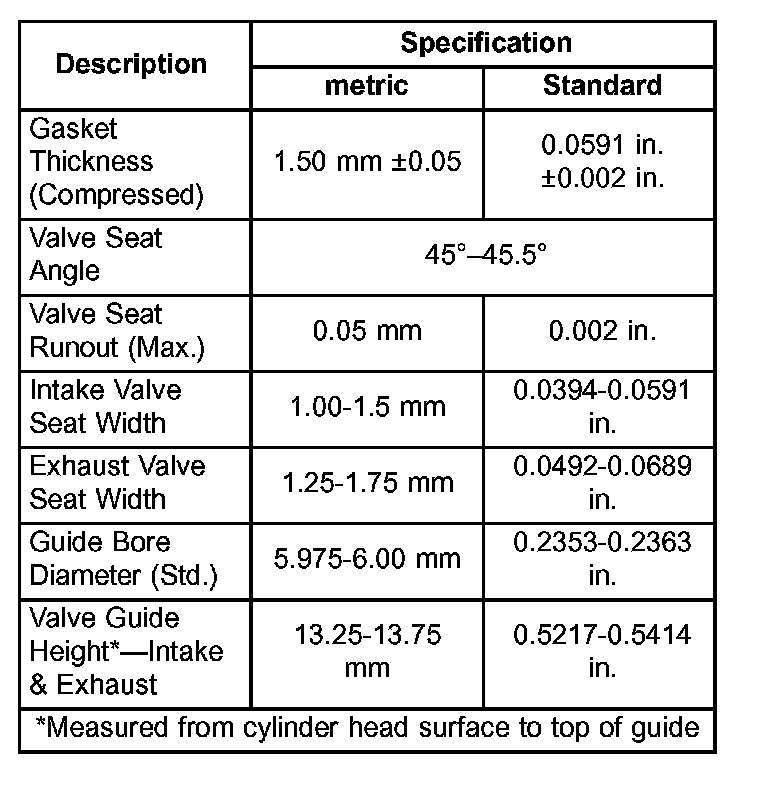

CYLINDER HEAD

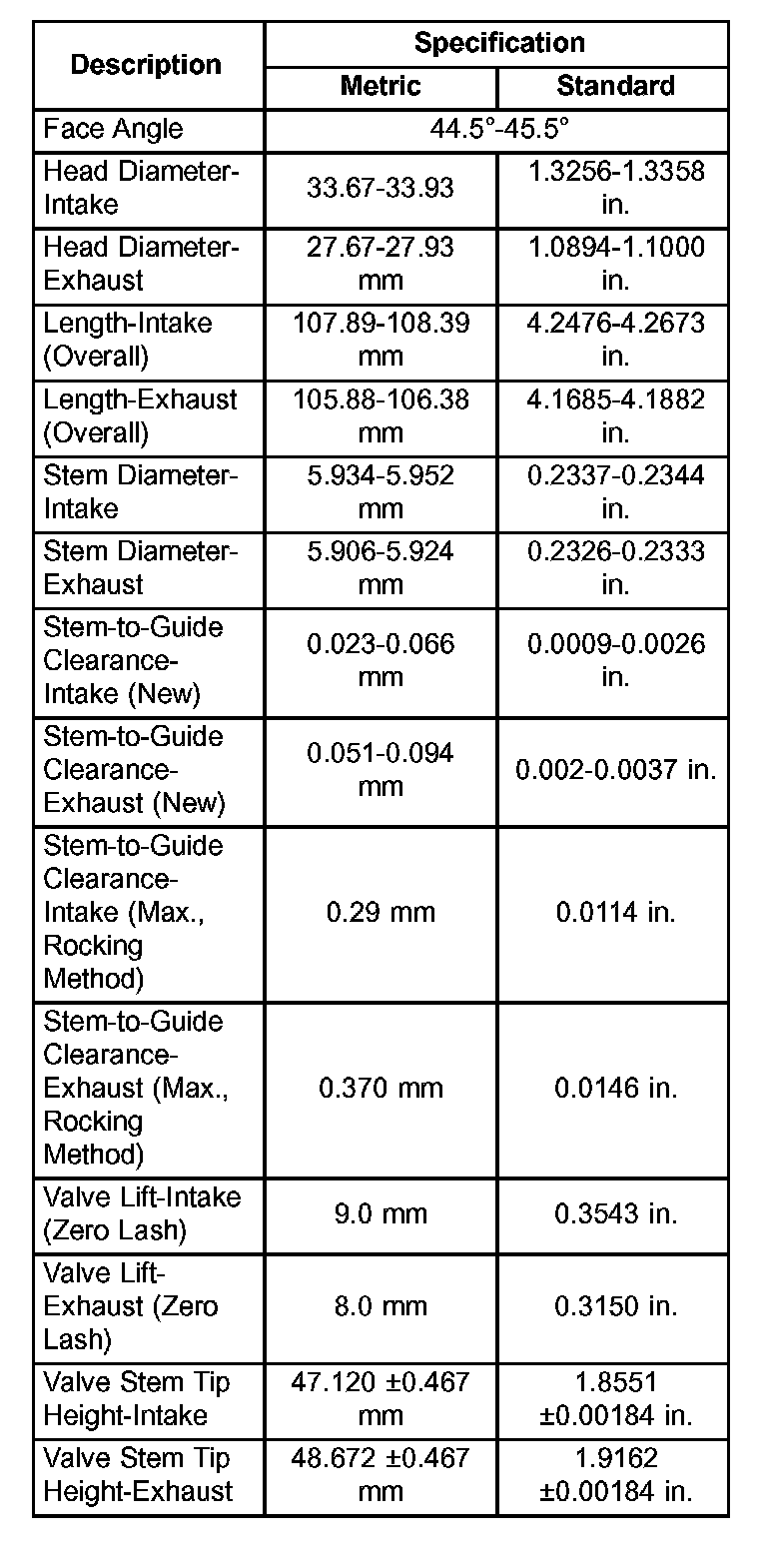

VALVES

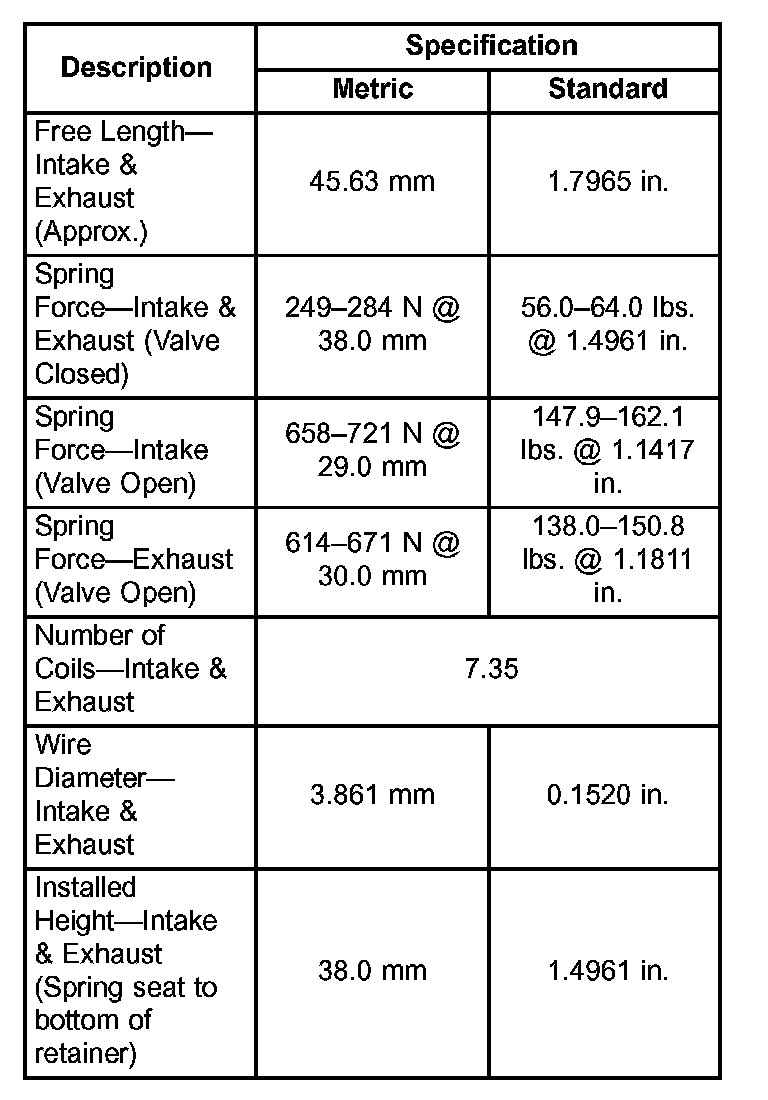

VALVE SPRING

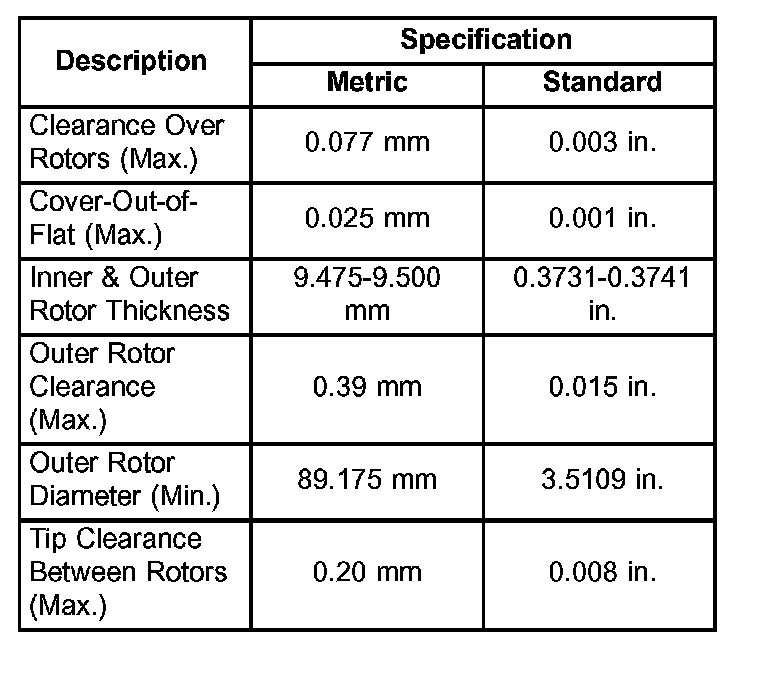

OIL PUMP
