Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pump >> Specifications >> Torque Specifications

Torque Specifications

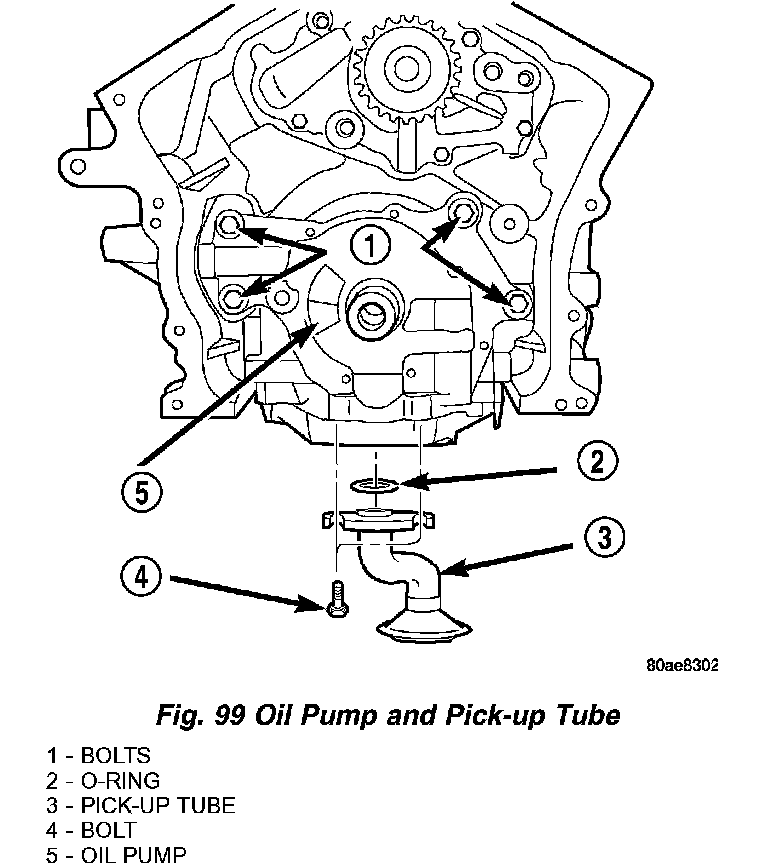

Oil Pump to Block - Bolts 28 Nm (250 inch lbs.)
Oil Pump Cover - Bolts 12 Nm (105 inch lbs.)
Oil Pump Pick Up Tube - Bolt 28 Nm (250 inch lbs.)
