Left Mount

LEFT MOUNT
REMOVAL
1. Disconnect negative battery cable.
2. Remove throttle body air inlet hose and air cleaner housing assembly.
3. Remove two nuts securing speed control servo bracket to left shock tower. Reposition servo.
4. Support transmission with floor jack and wooden block.

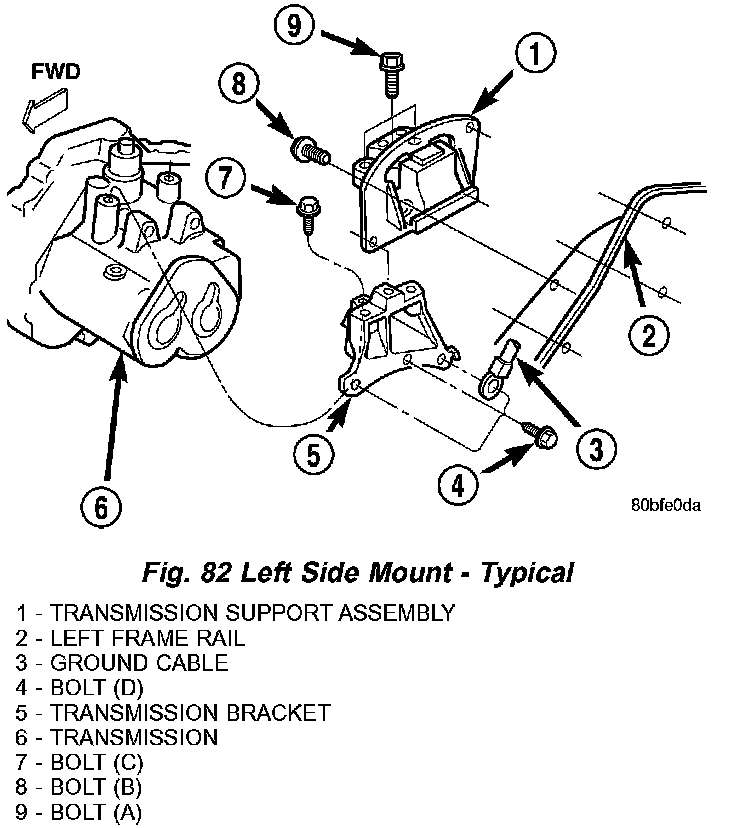

5. Remove the three vertical bolts from mount to transmission bracket (A) (Fig. 82).
6. Slightly lower transmission with floor jack.
7. Remove mount to frame rail fasteners (B) and remove mount (Fig. 82).

INSTALLATION
1. Position mount to frame rail. Install mount to frame rail fasteners (B) (Fig. 82). Torque fasteners to 33 Nm (24 ft. lbs.).
2. Raise transmission into position with floor jack.
3. Install three vertical bolts from mount to transmission bracket (A) (Fig. 82). Torque fasteners to 61 Nm (45 ft. lbs.).
4. Remove floor jack and wooden block.
5. Install speed control servo to left shock tower. Torque fasteners to 6.7 Nm (60 inch lbs.).
6. Install throttle body air inlet hose and air cleaner housing assembly.
7. Connect negative battery cable.
