Power Locks

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

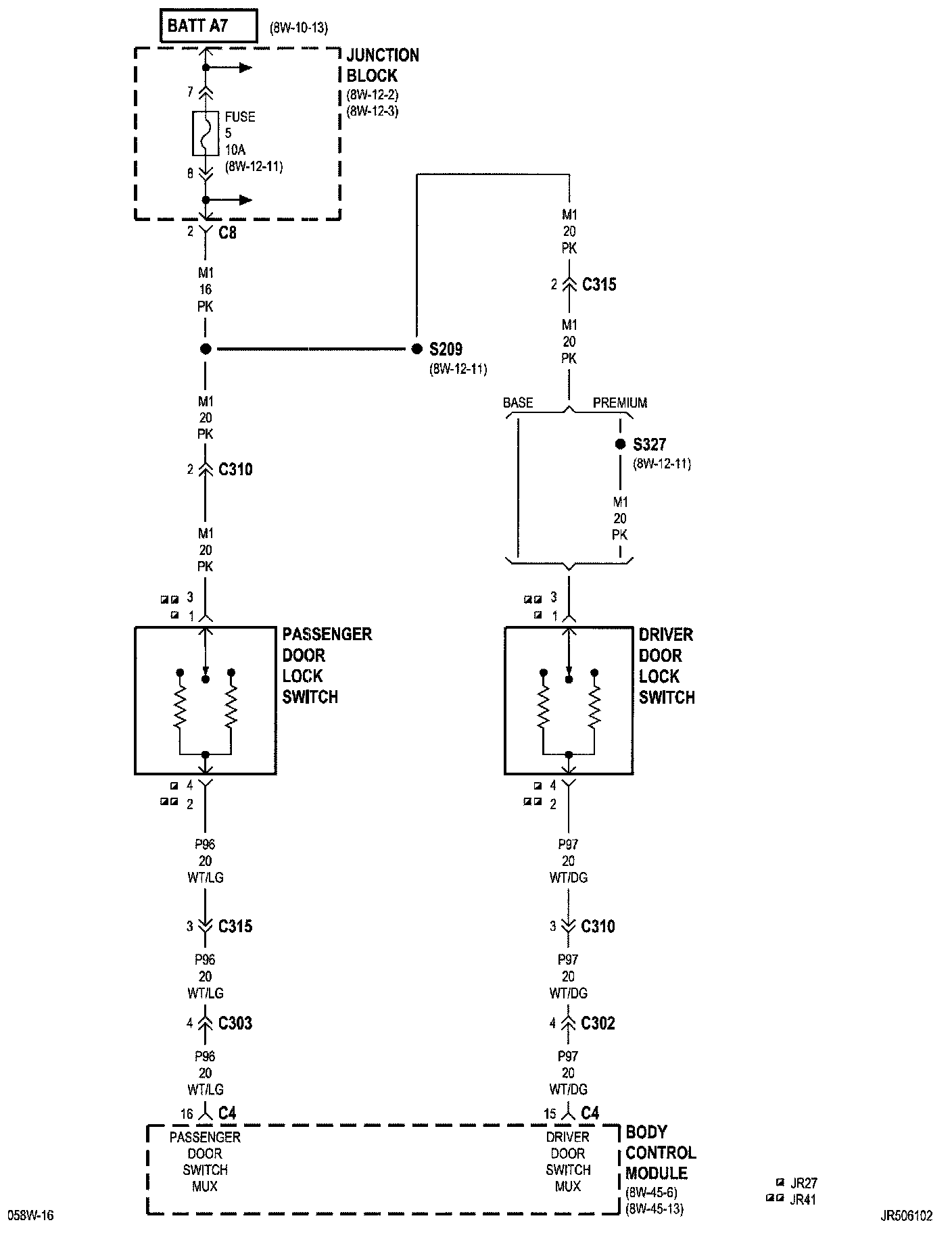

8w-61-2:

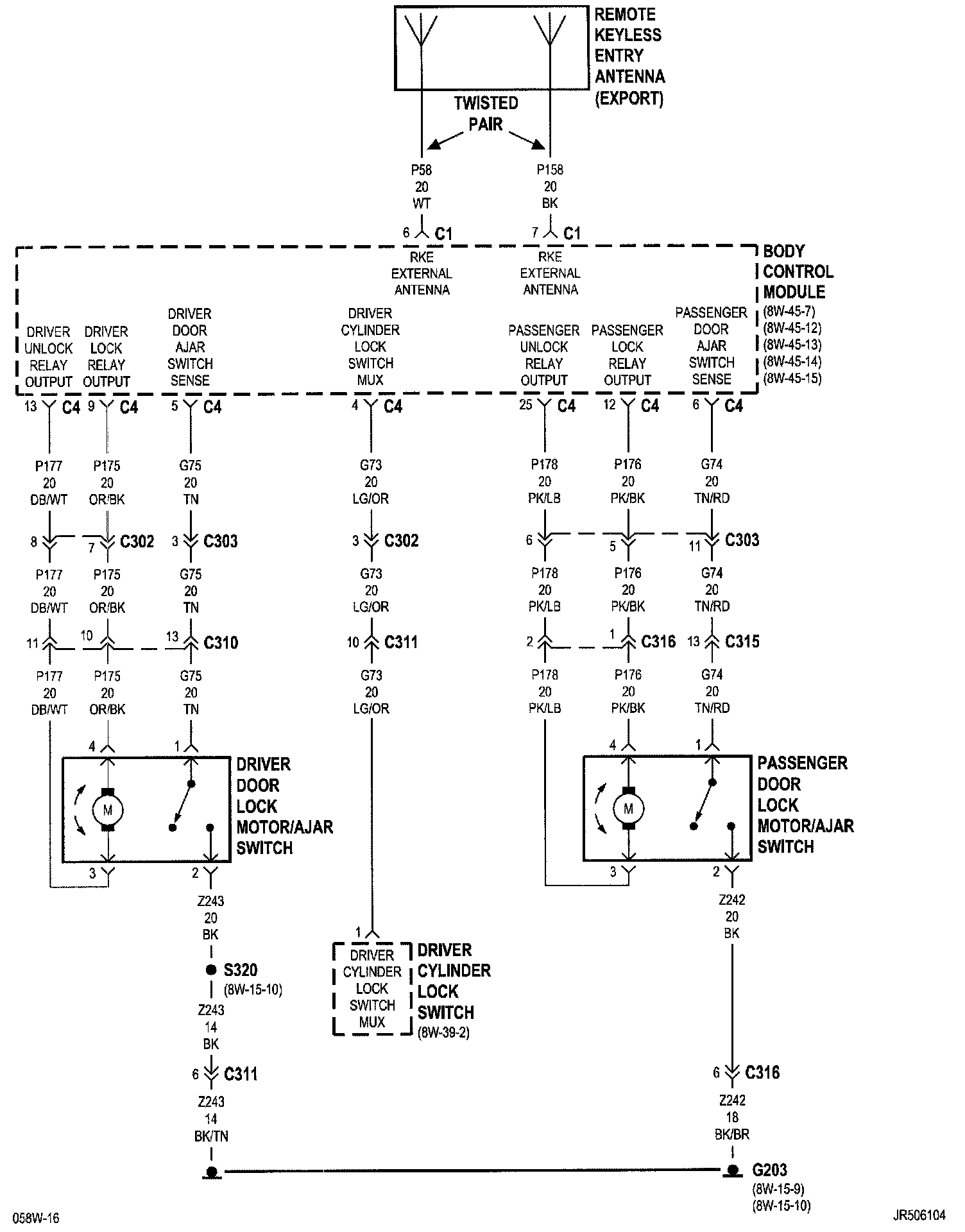

8w-61-3 (JR41):

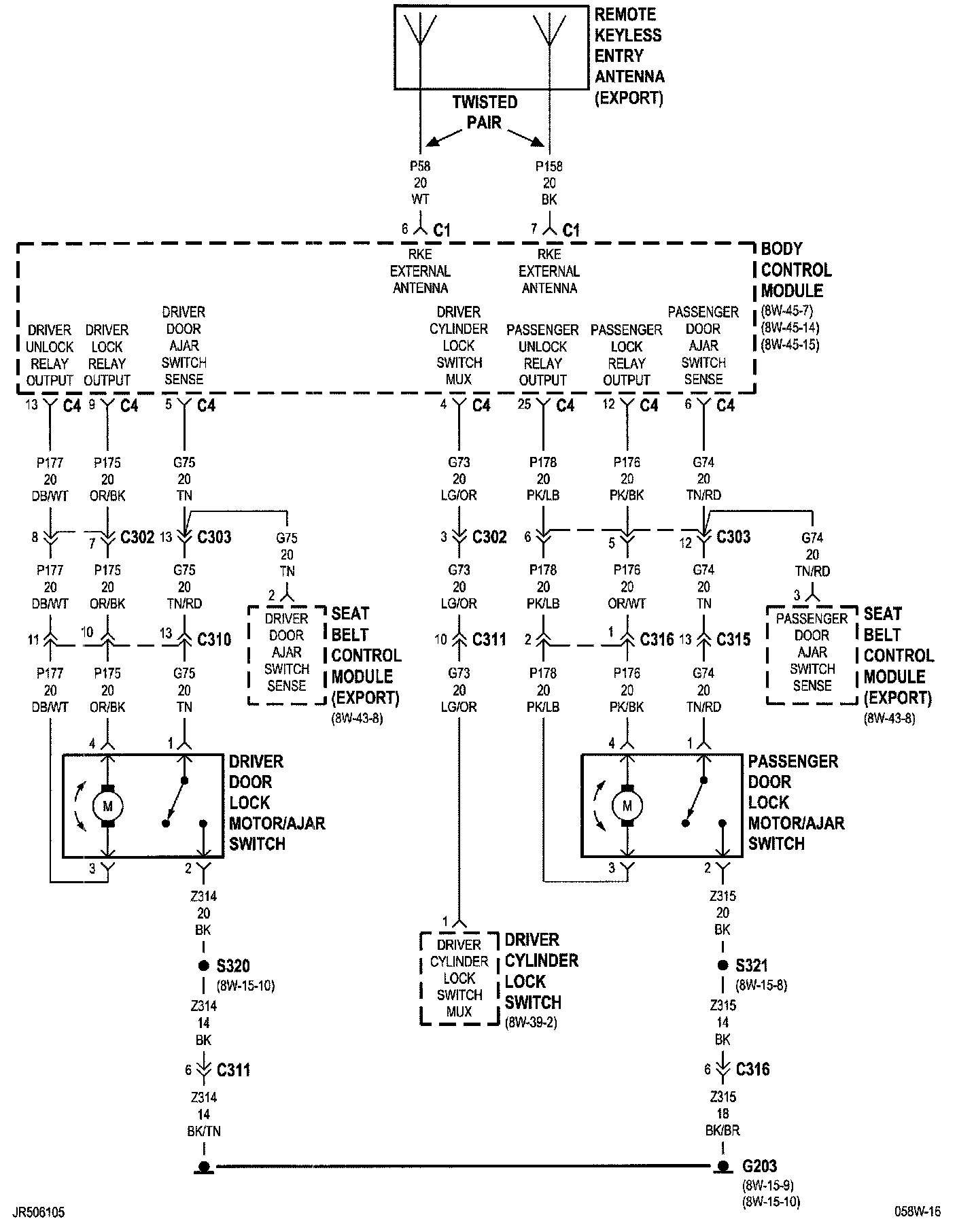

8w-61-4 (JR41):

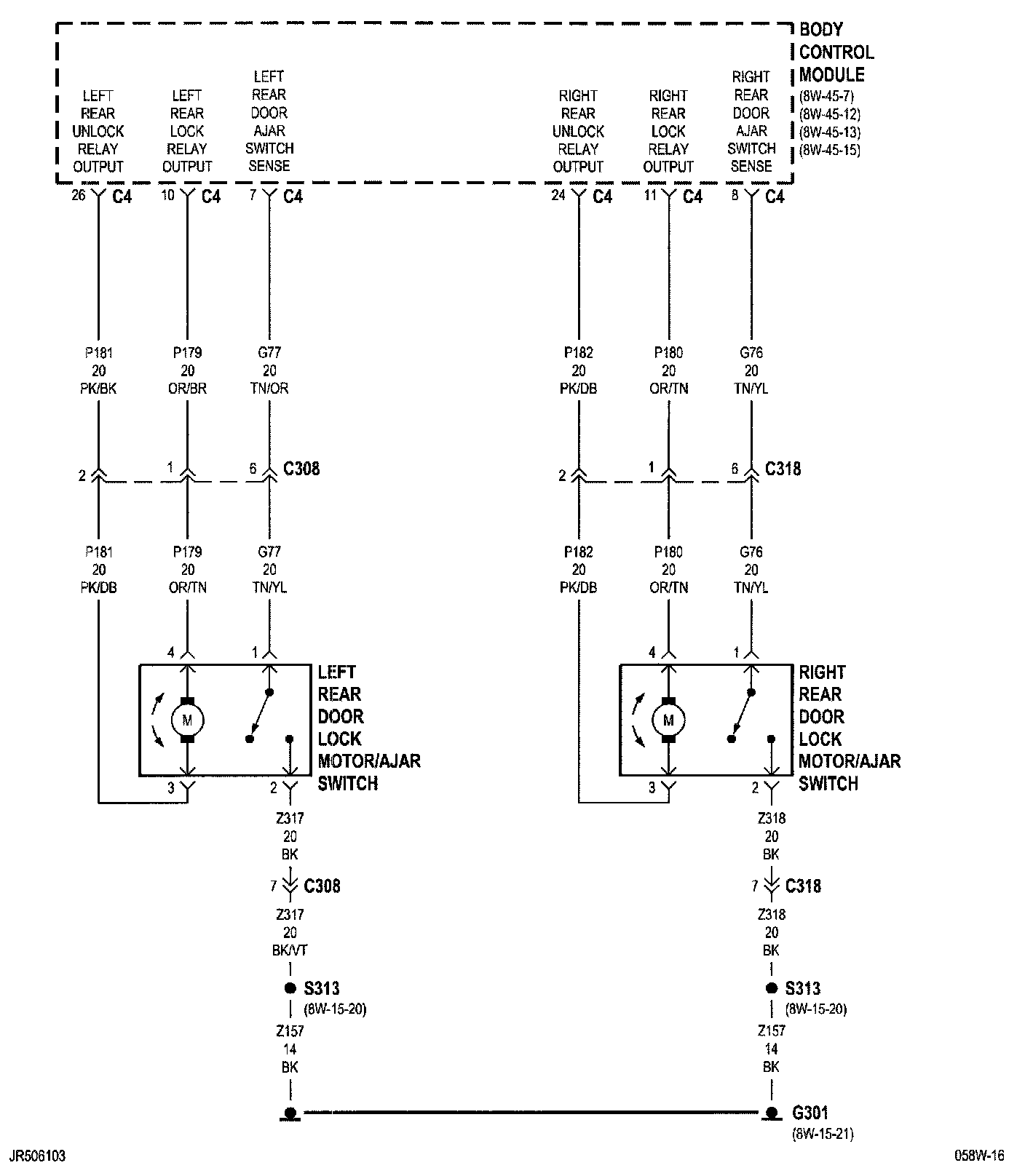

8w-61-5 (JR27):

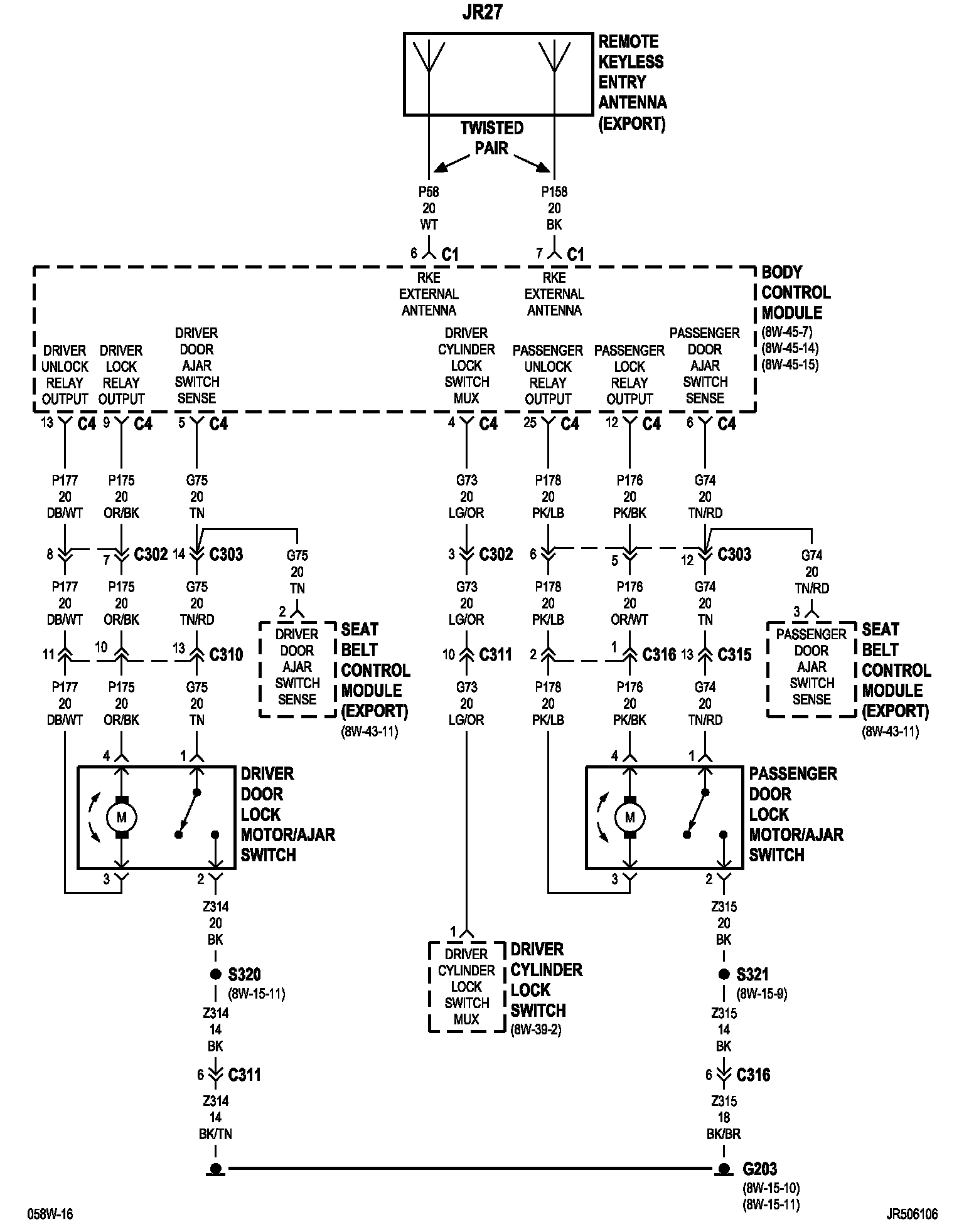

8w-61-6 (JR27):

Other diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
