Front Lighting

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

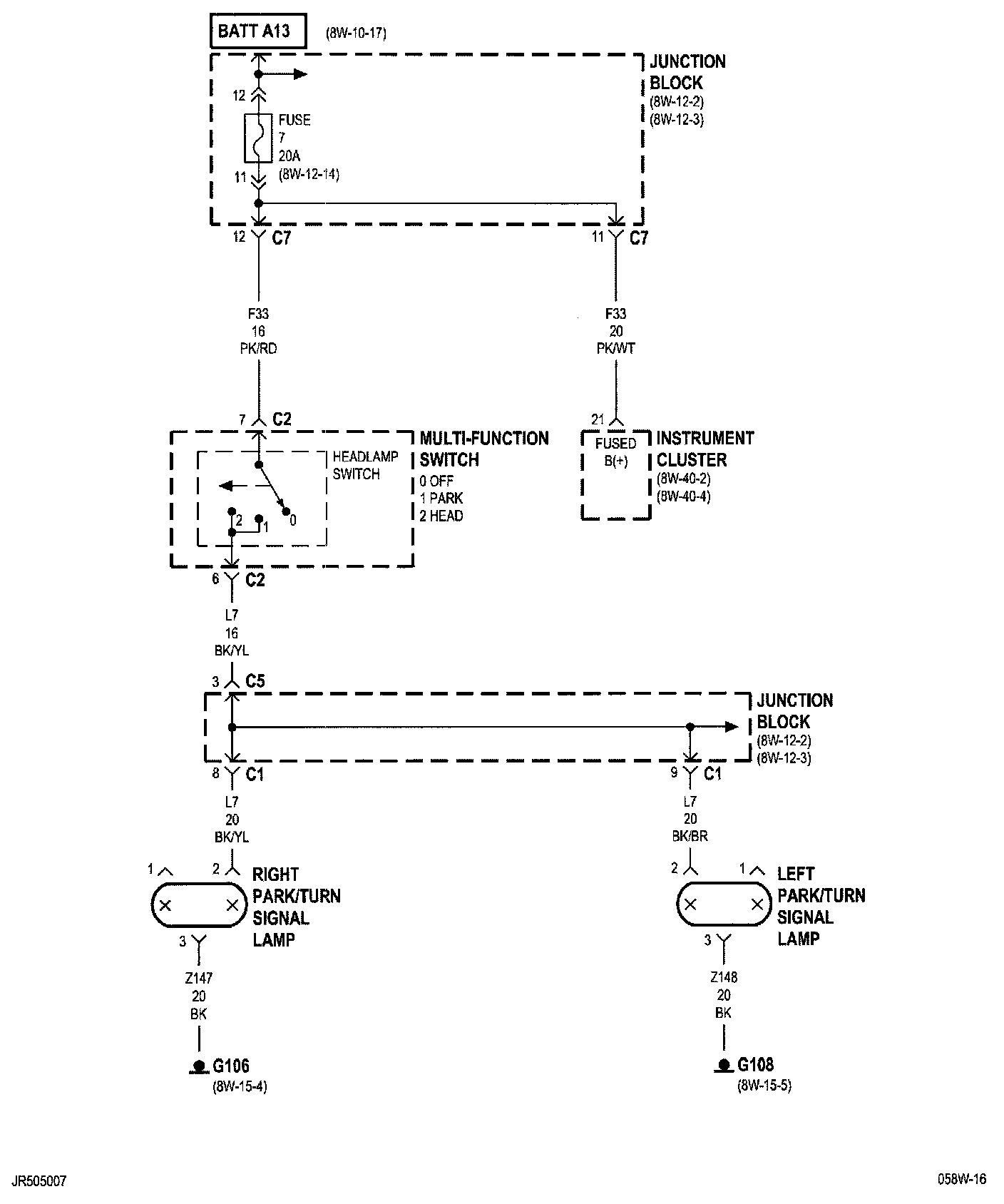

8w-50-2 (Base):

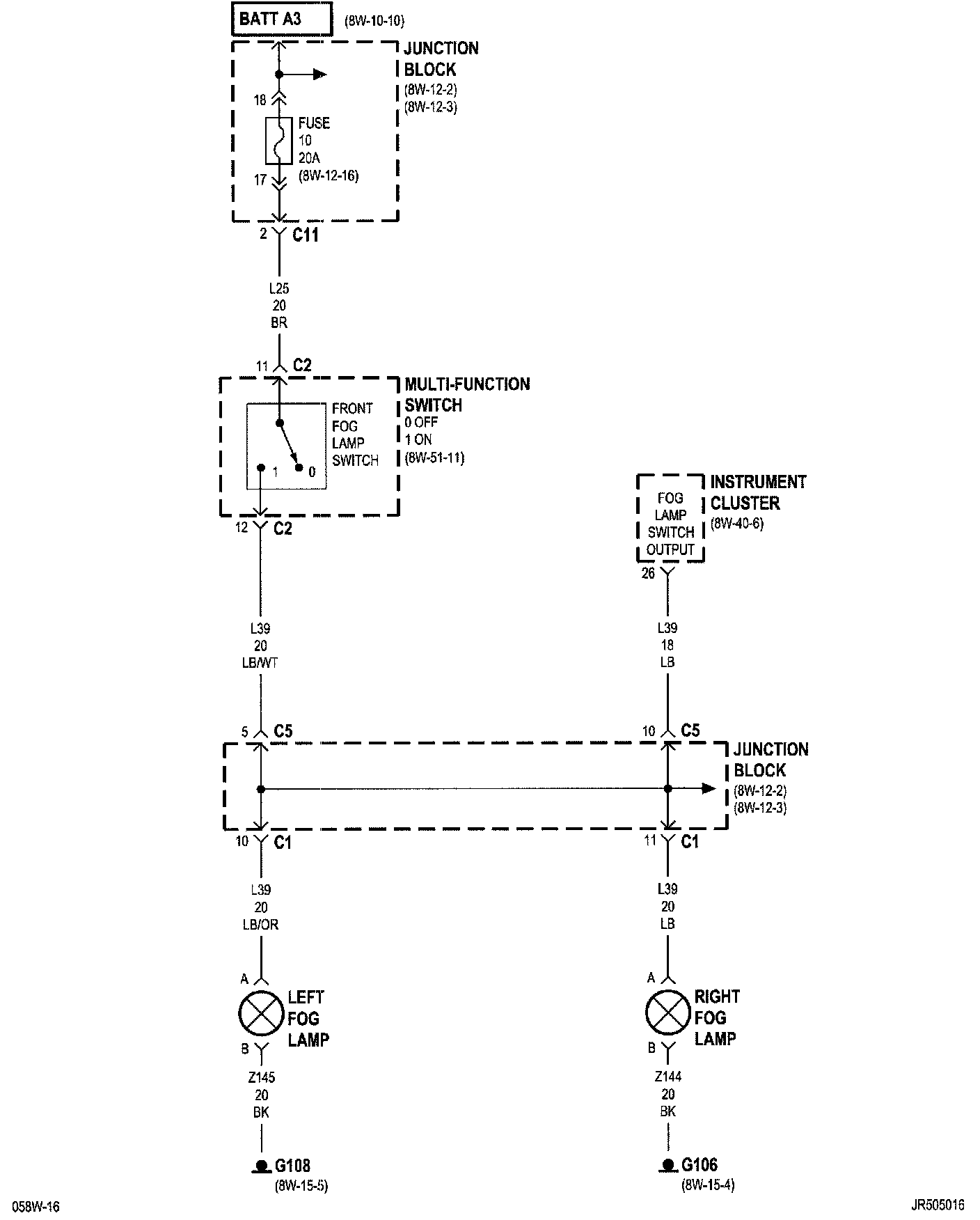

8w-50-3 (Base):

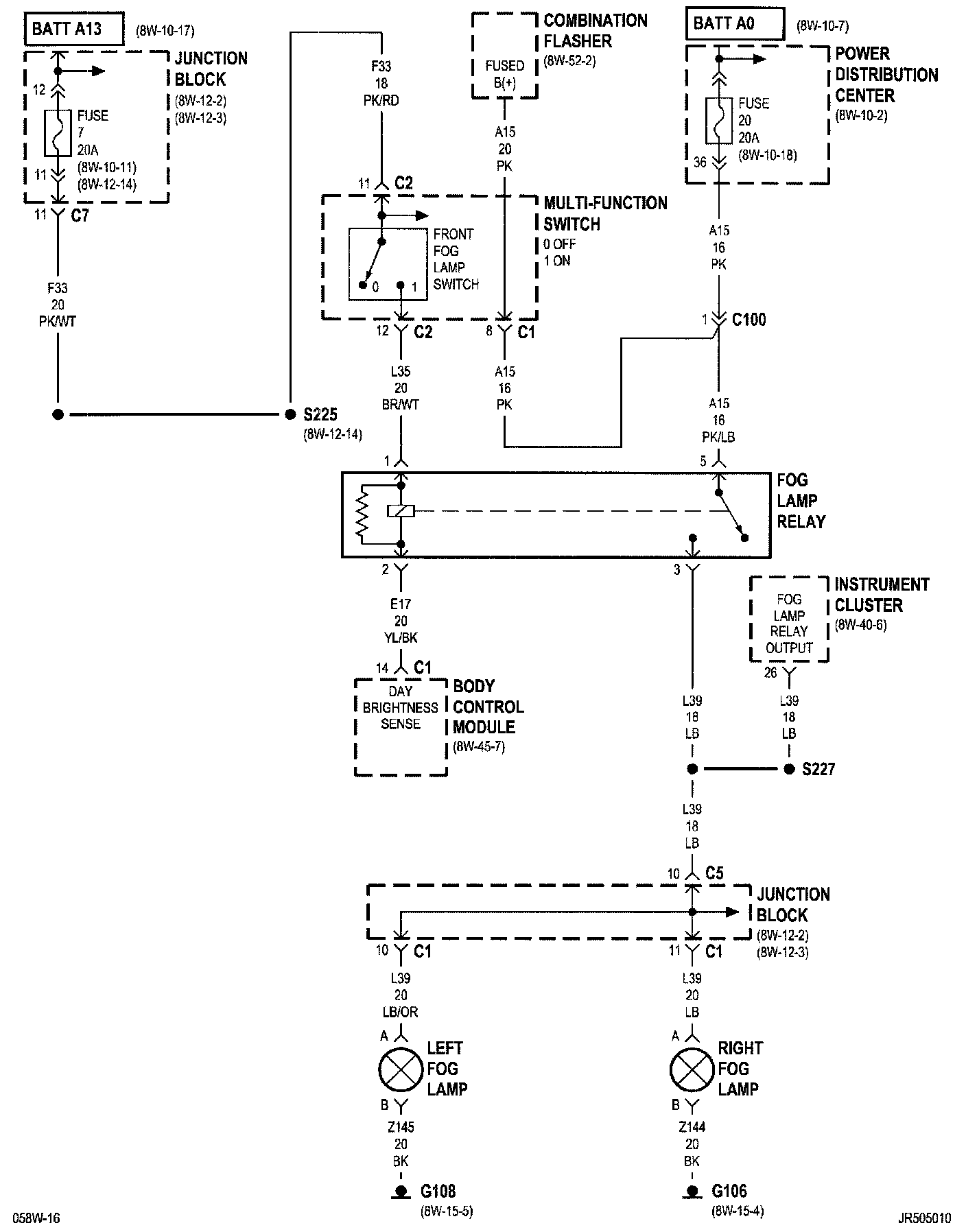

8w-50-4 (Premium):

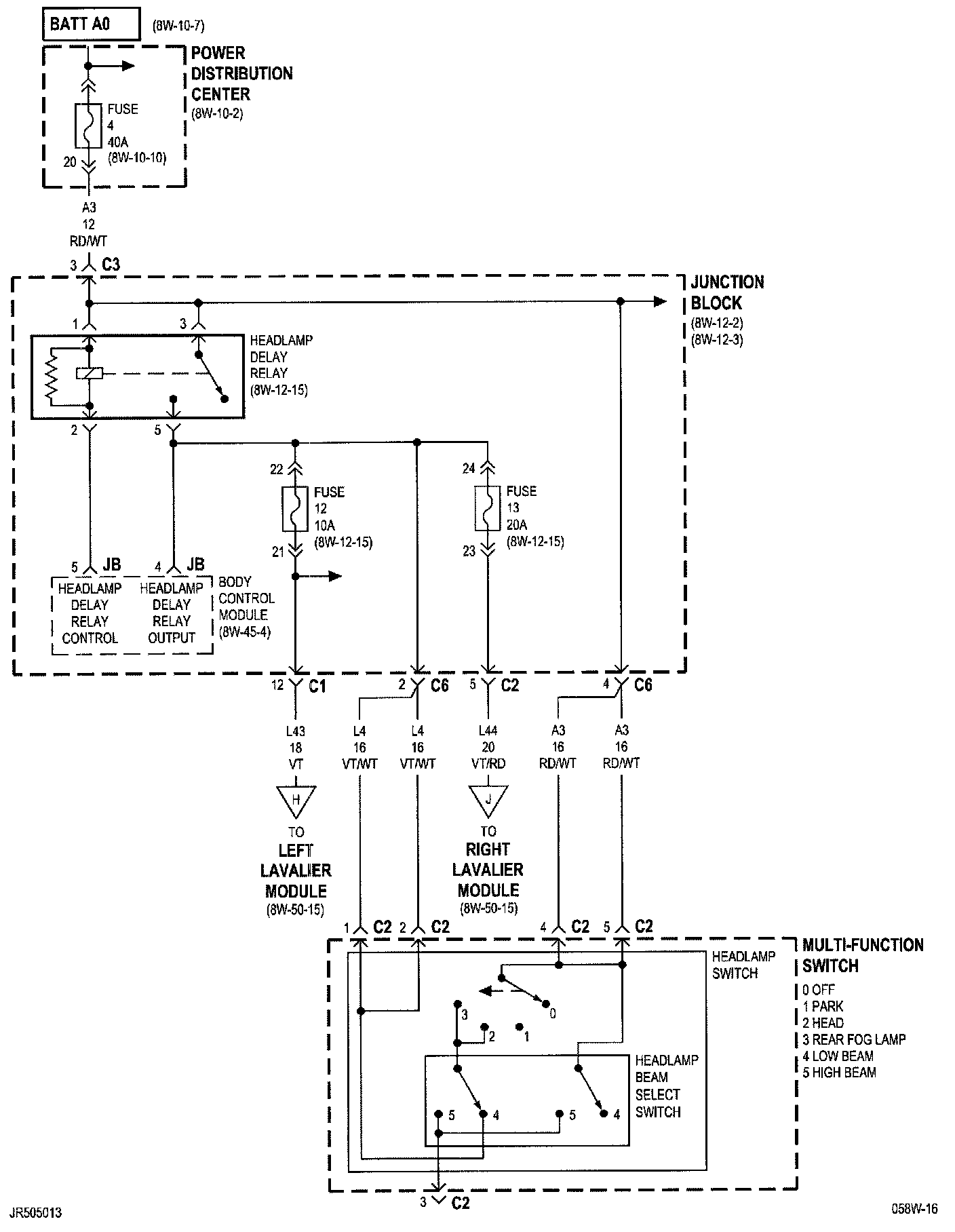

8w-50-5 (Premium):

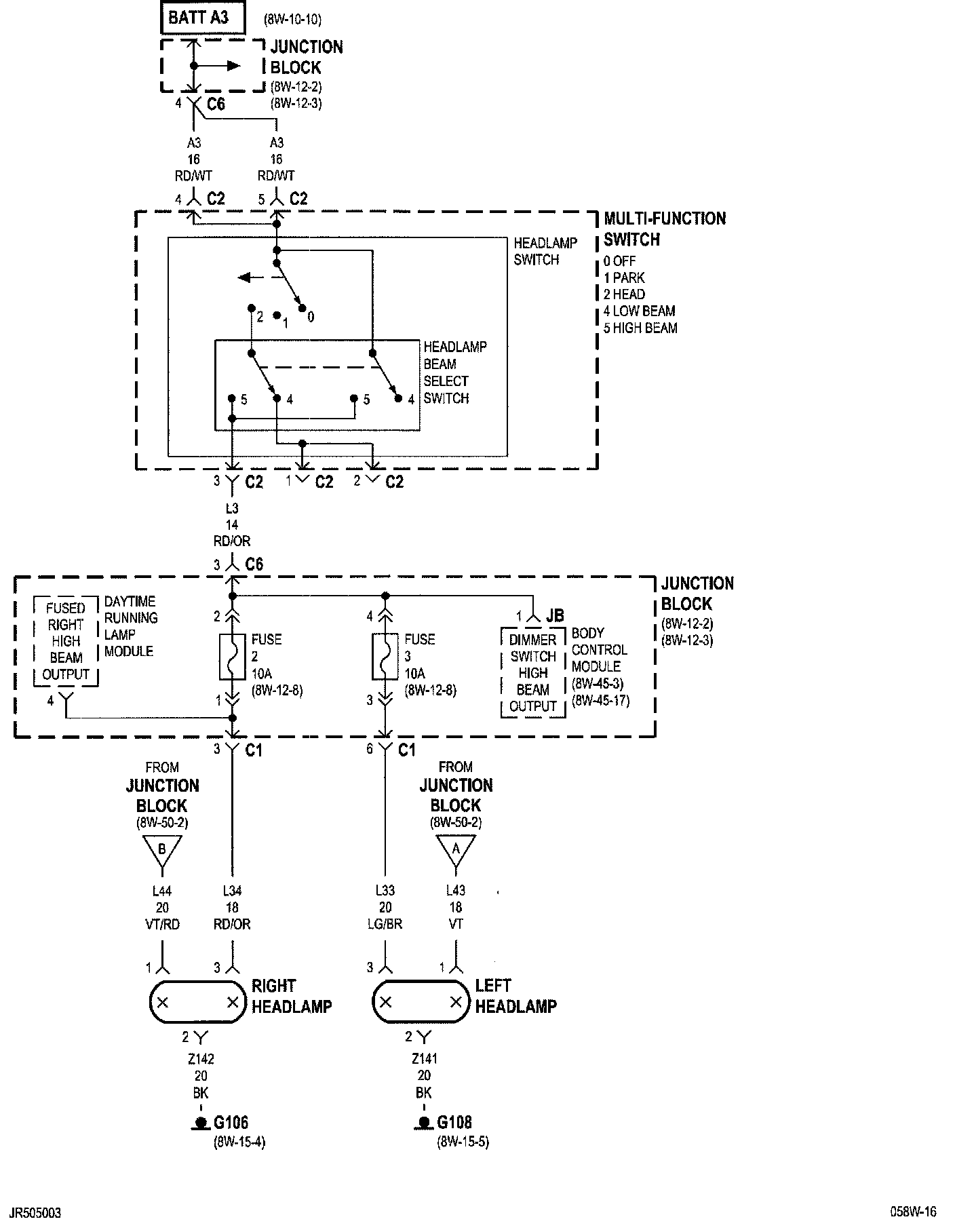

8w-50-6 (Premium):

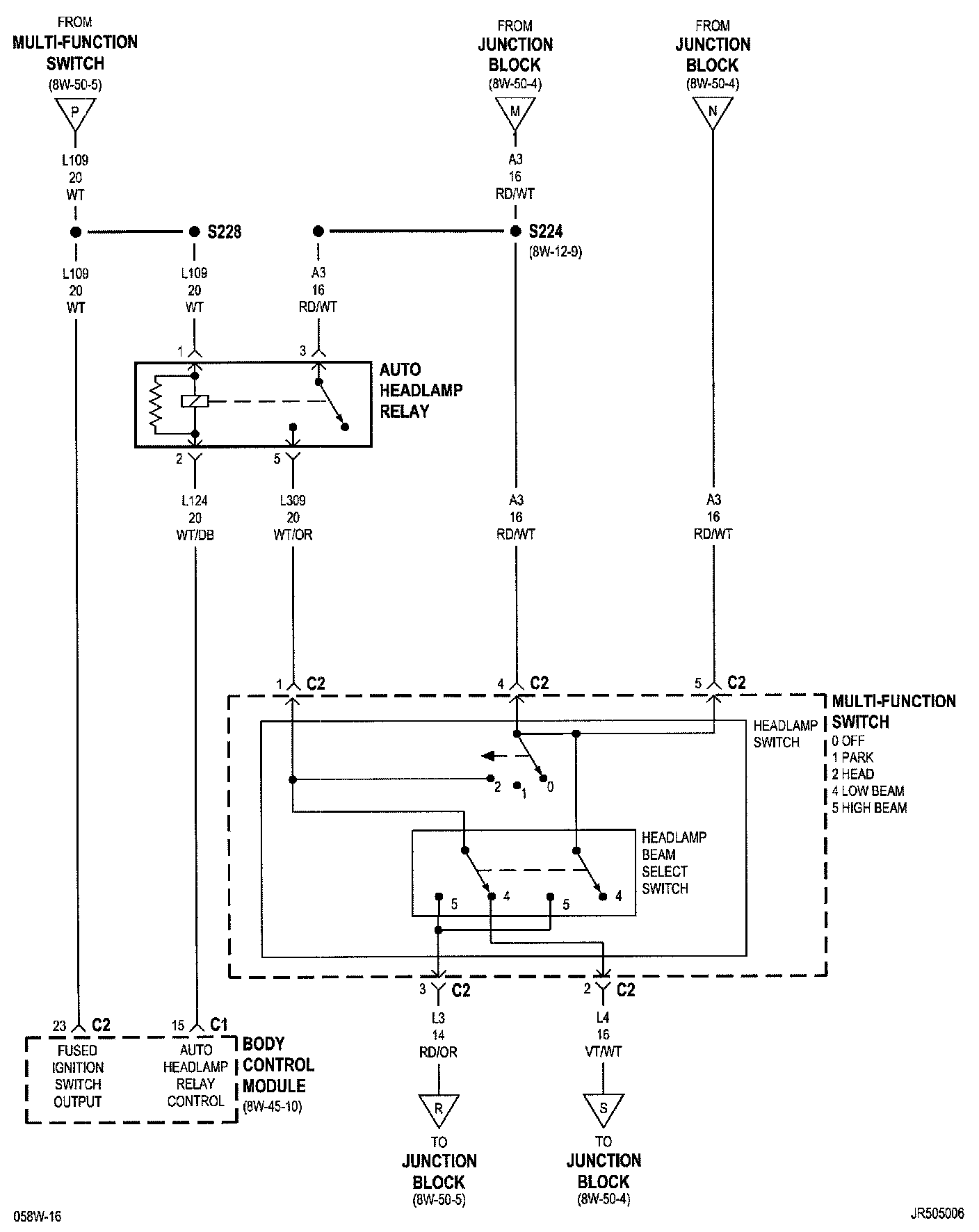

8w-50-7 (Base):

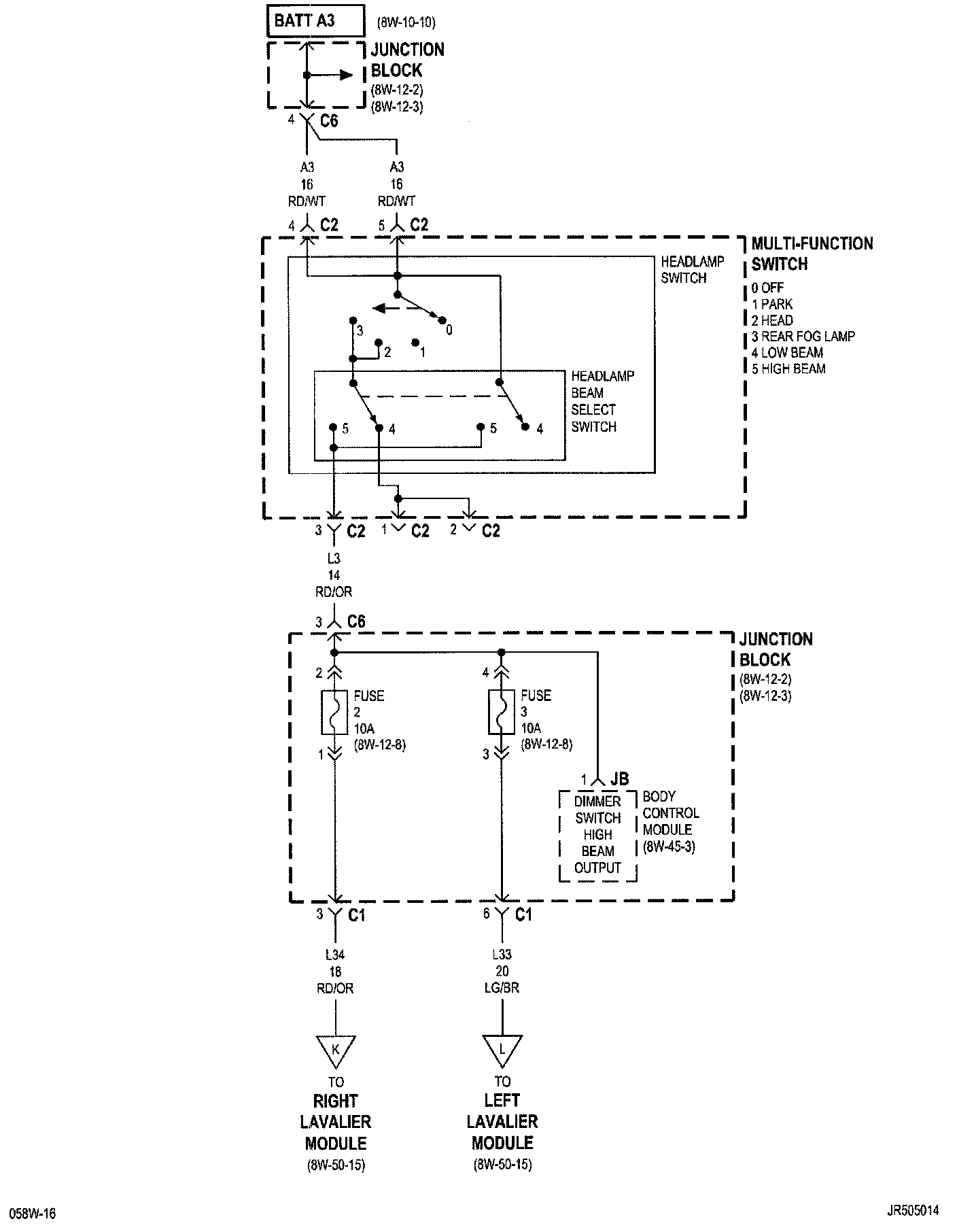

8w-50-8 (Premium):

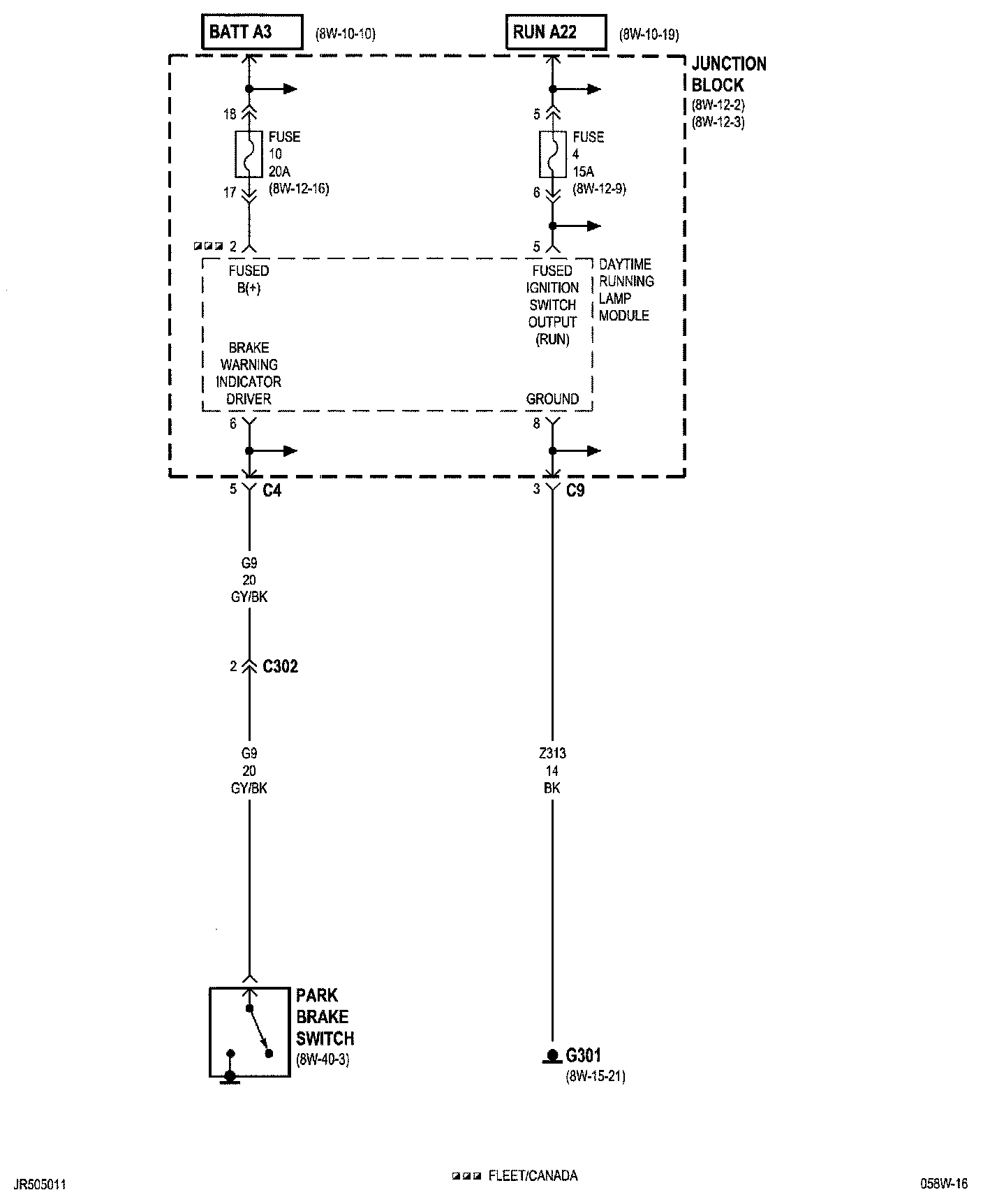

8w-50-9 (Base):

8w-50-10 (Premium):

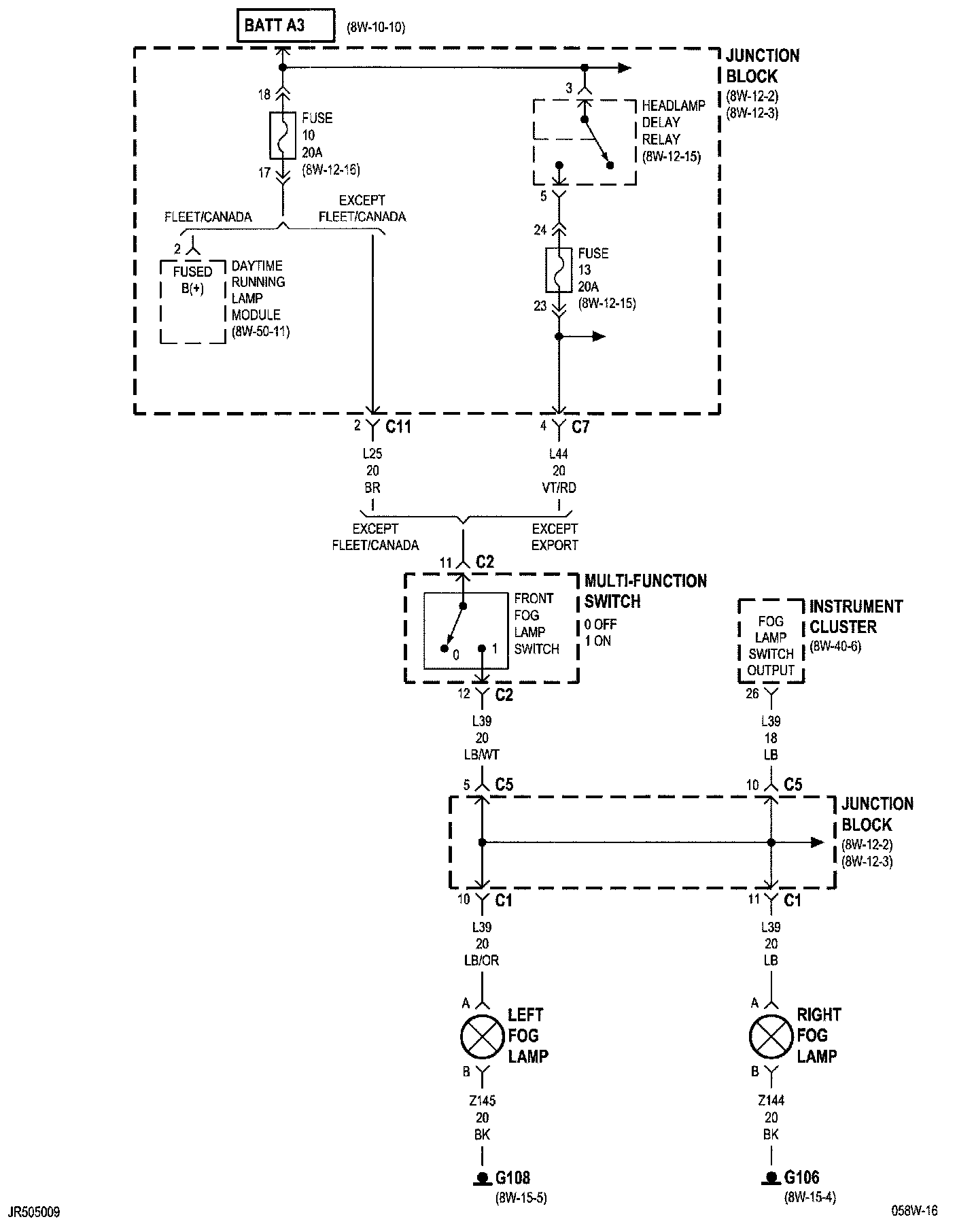

8w-50-11 (Except Export):

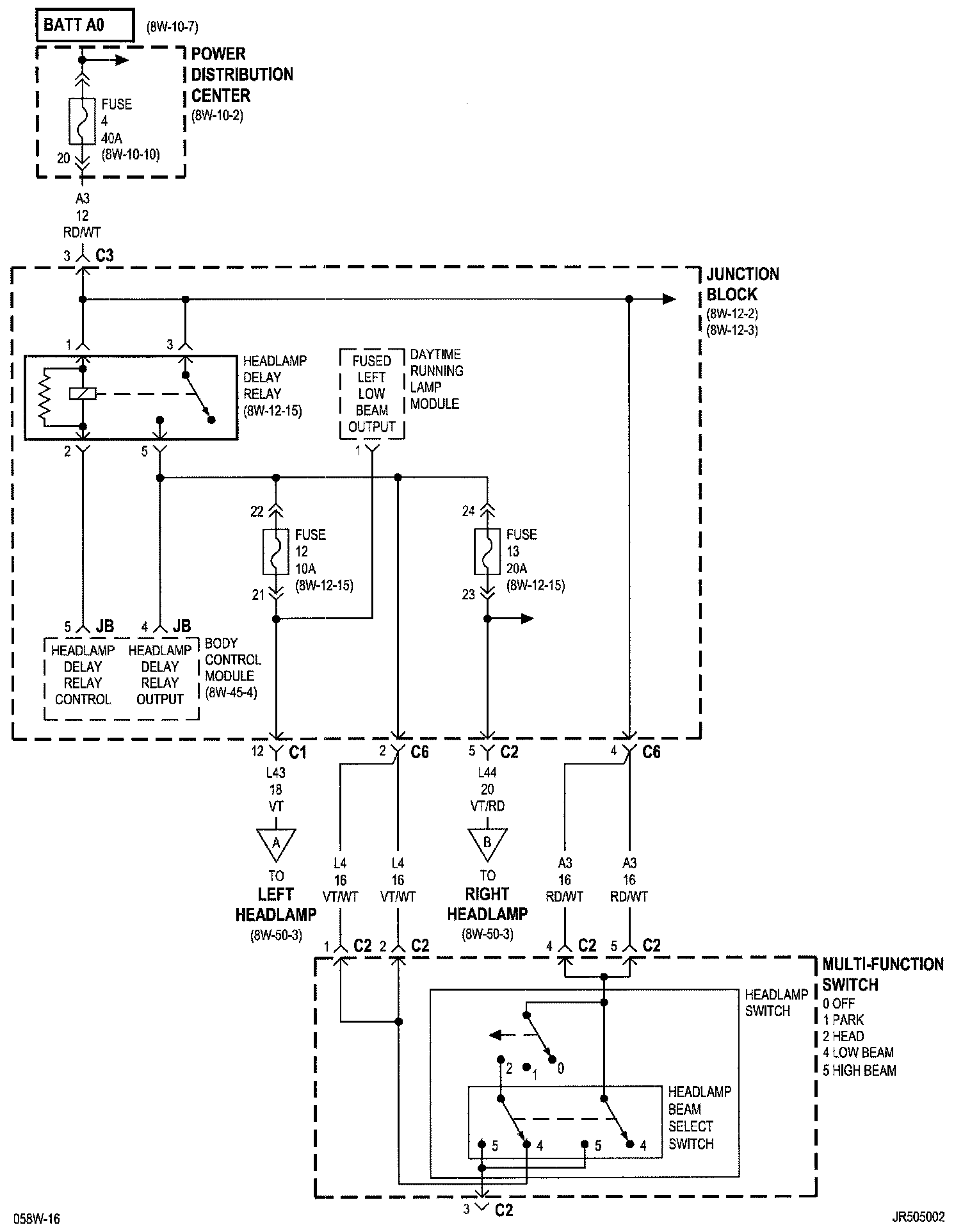

8w-50-12 (Export):

8w-50-13 (Export):

8w-50-14 (Export):

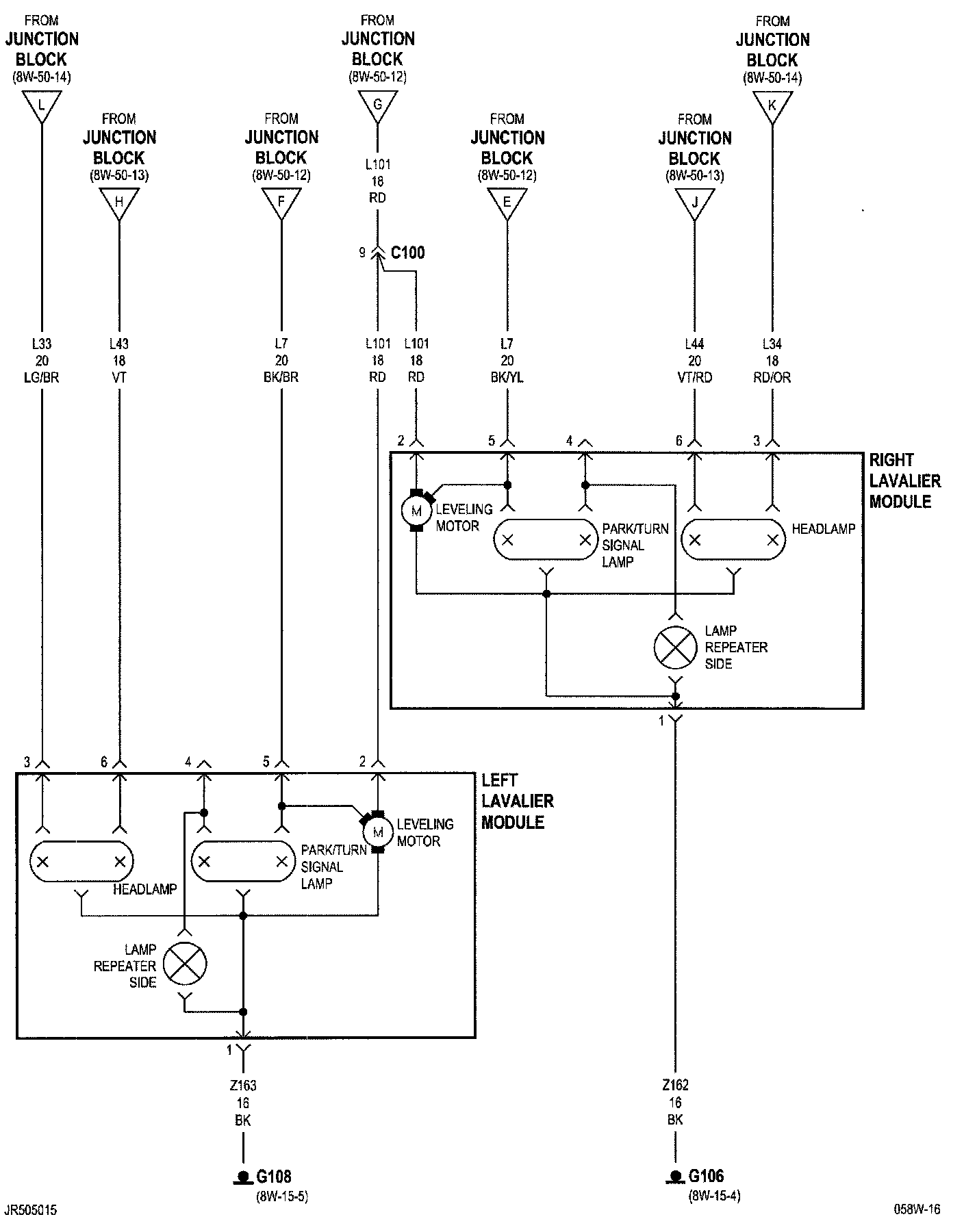

8w-50-15 (Export):

8w-50-16 (Export):

Other diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
