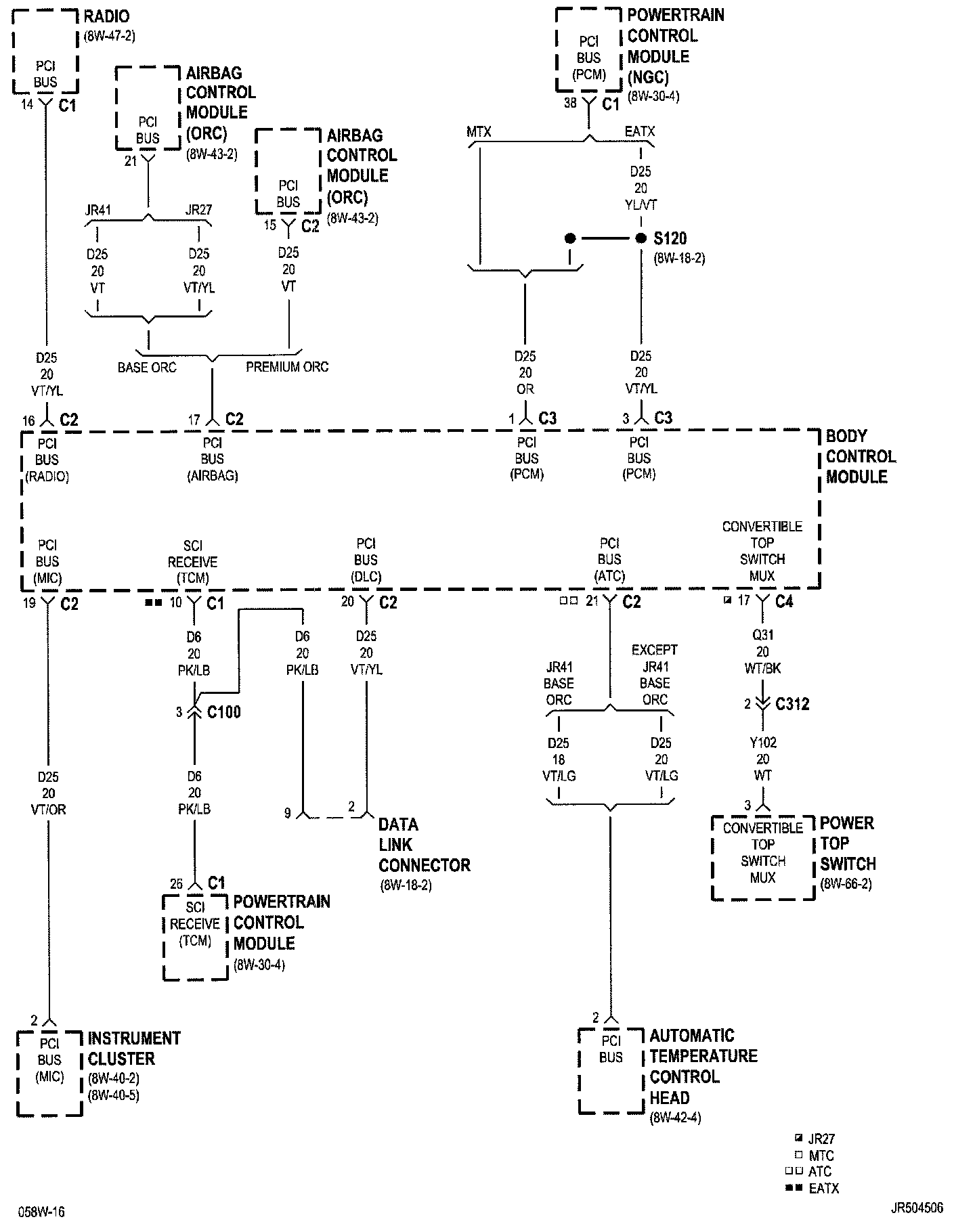

Group 8W-45 (Body Control Module)

8w-45-2:



8w-45-3:



8w-45-4:



8w-45-5:



8w-45-6:



8w-45-7:



8w-45-8:



8w-45-9:



8w-45-10:



8w-45-11:



8w-45-14 (JR27):



8w-45-15 (JR27):



8w-45-16:



8w-45-17:
