Group 8W-10 (Power Distribution)

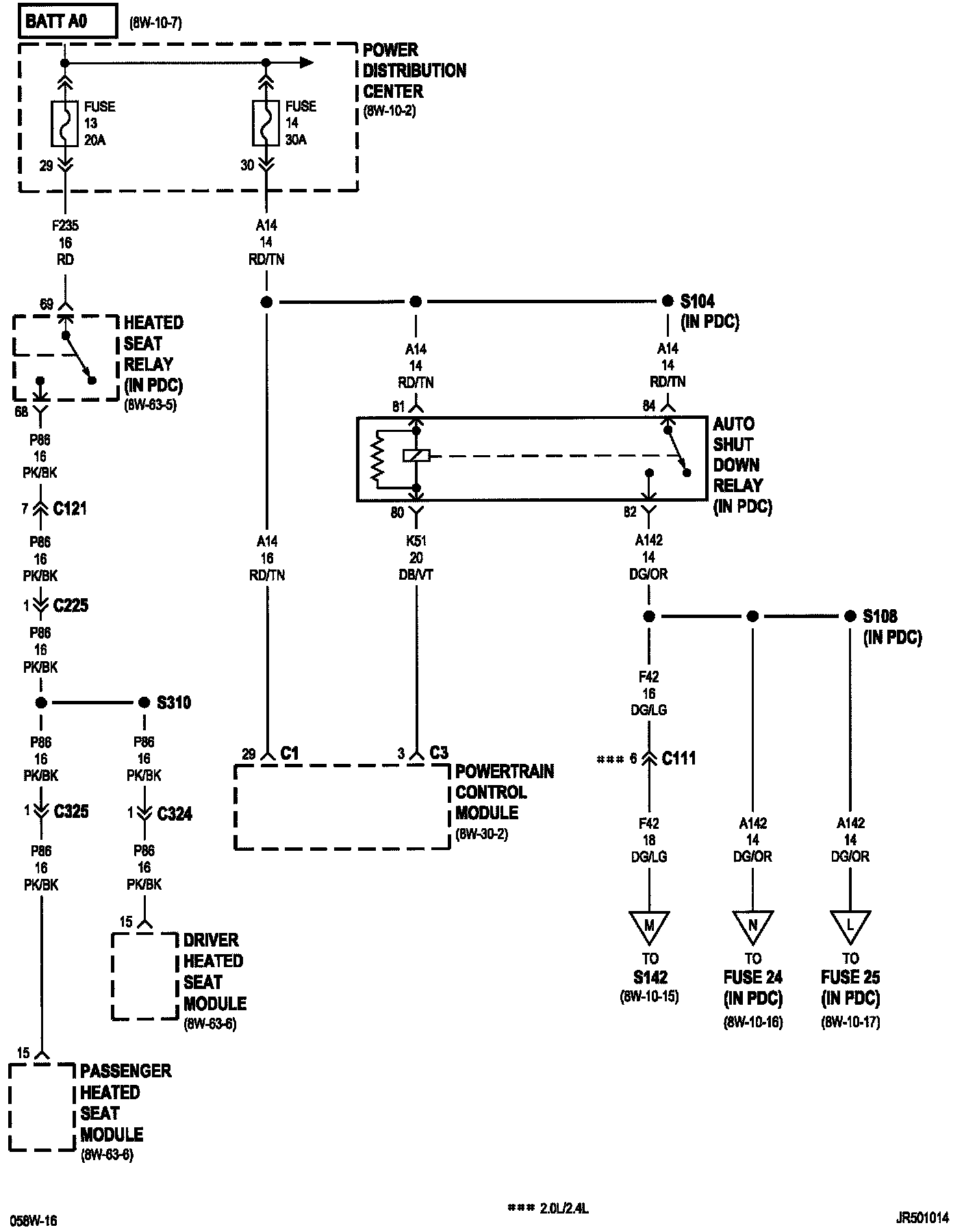

8w-10-7:



8w-10-8:



8w-10-9:



8w-10-10:



8w-10-11:



8w-10-12 (Premium):



8w-10-13:



8w-10-14:



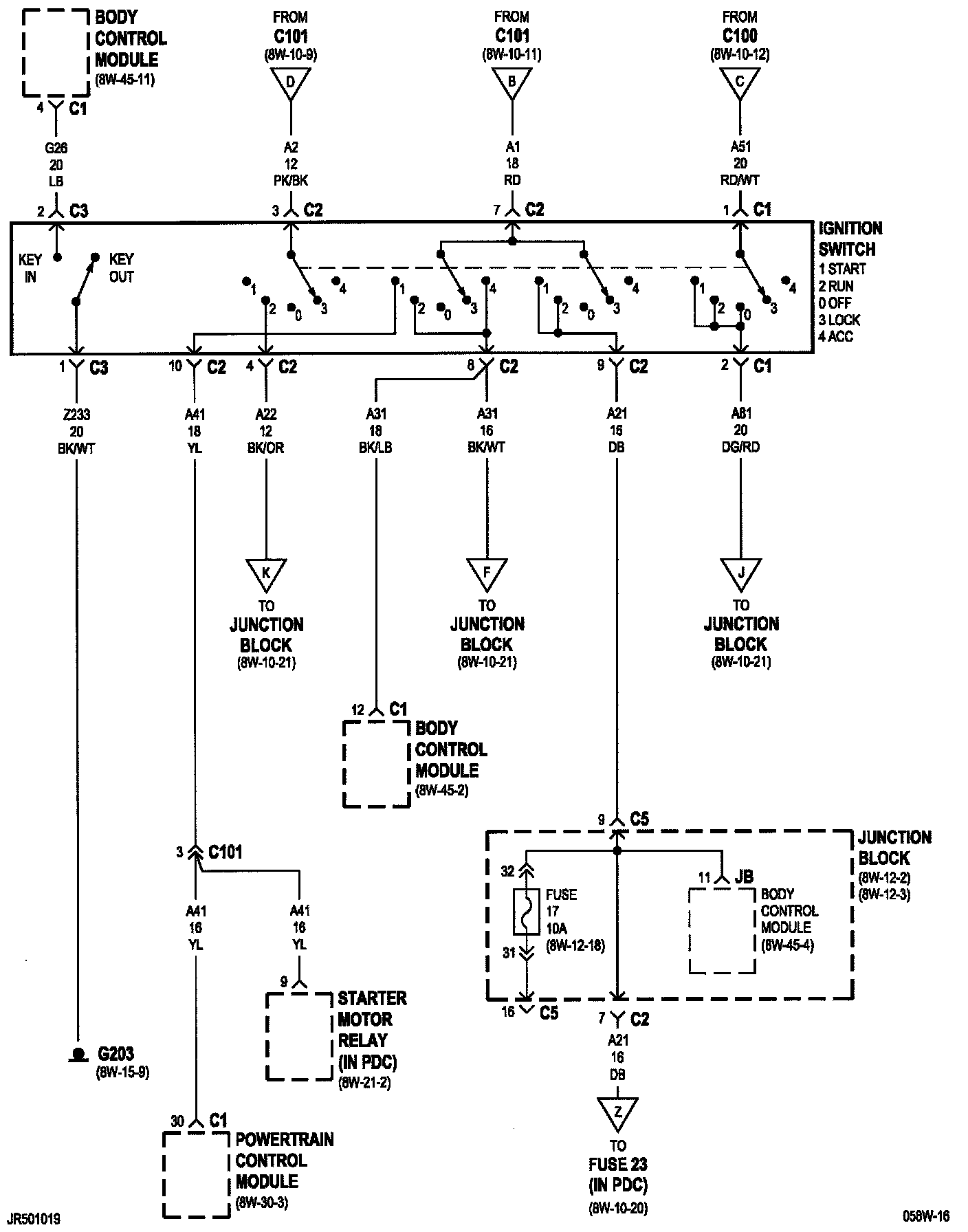

8w-10-16 (2.7):



8w-10-17:



8w-10-18:



8w-10-19:



8w-10-20:



8w-10-21:
