Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Solar Sensor, HVAC
Solar Sensor, HVAC

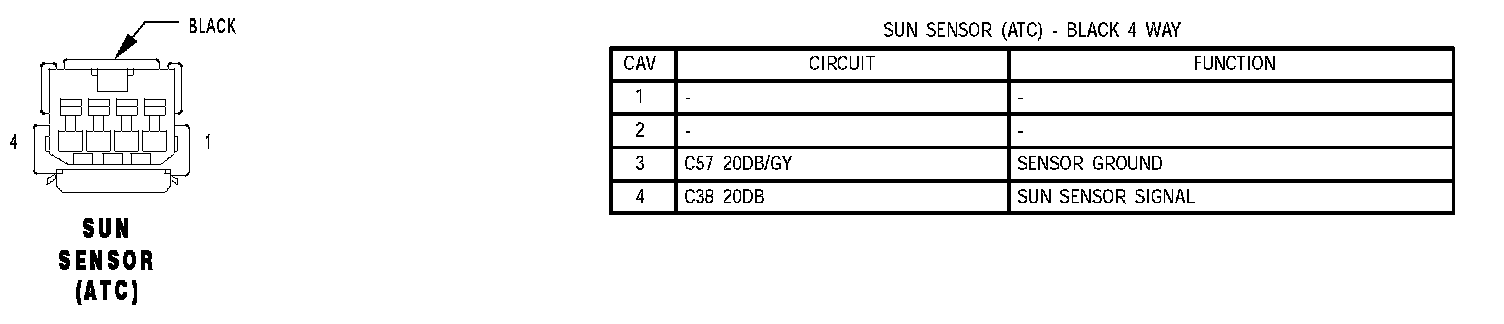

Sun Sensor (ATC):
