Seat Belt Buckle Switch

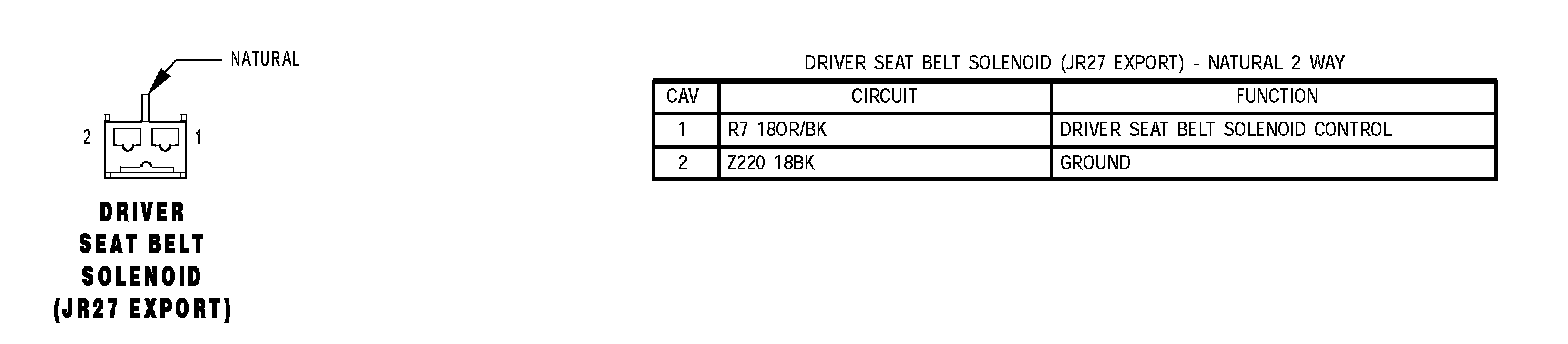

Driver Seat Belt Solenoid (JR27 Export):

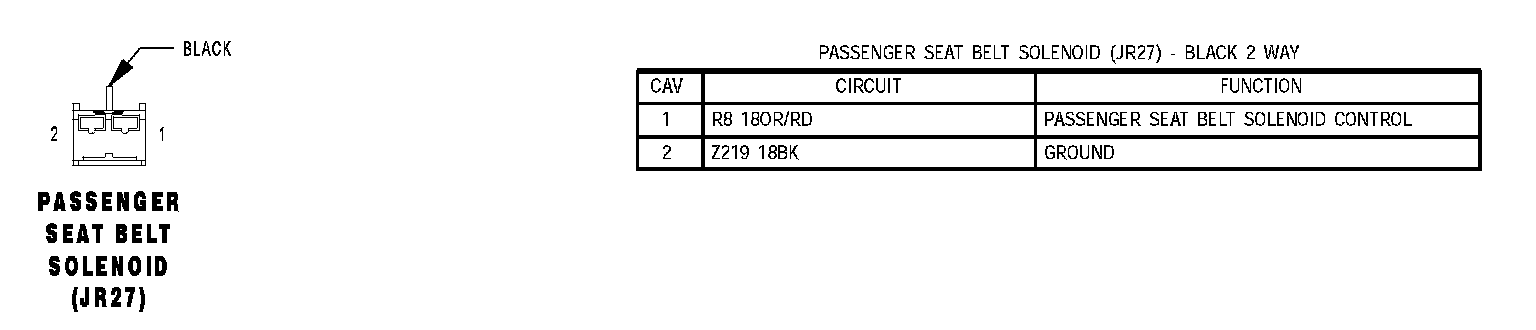

Passenger Seat Belt Solenoid (JR27):
