Power Window Motor
Power Window Motor

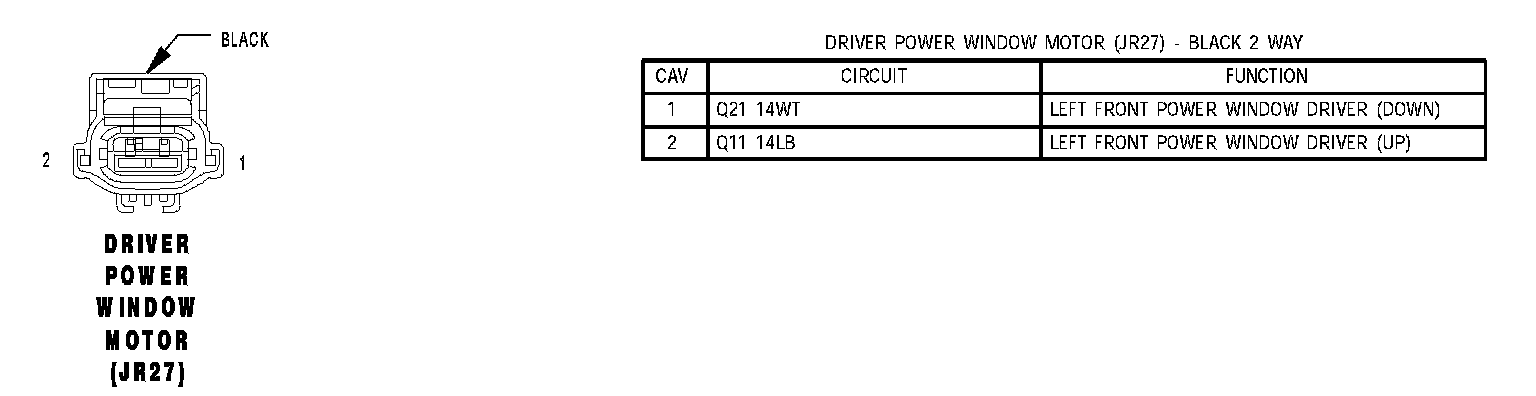

Driver Power Window Motor (JR27):
Left Rear Power Window Motor:

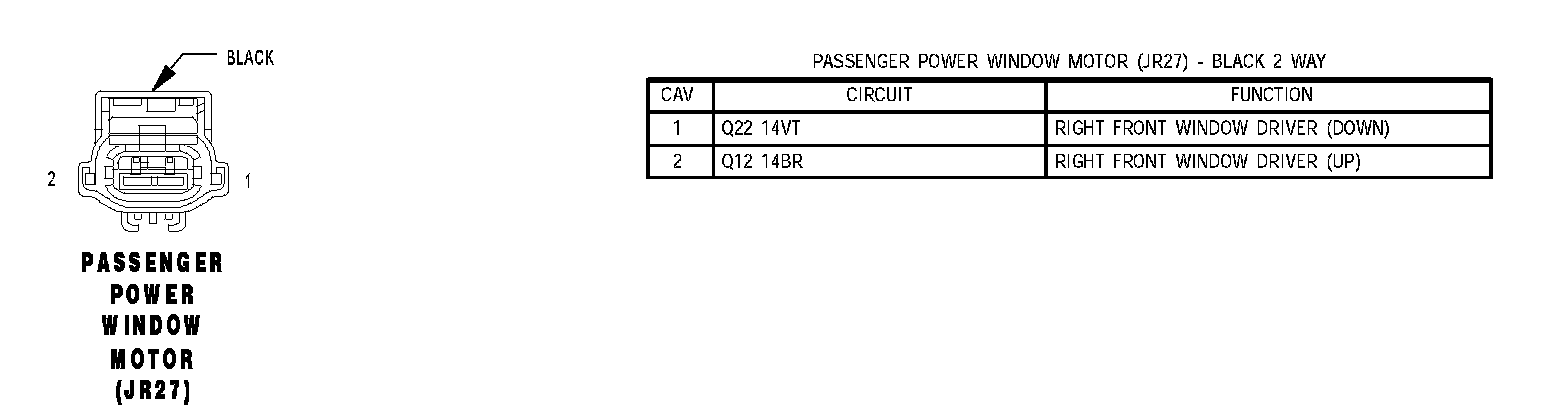

Passenger Power Window Motor (JR270:

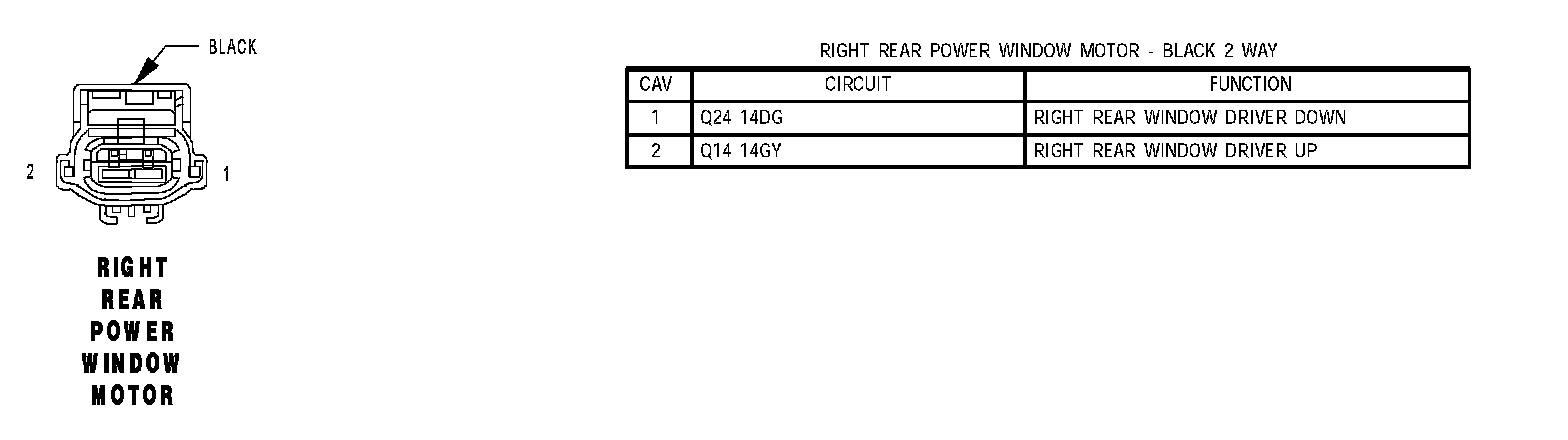

Right Rear Power Window Motor:
