Oxygen Sensor

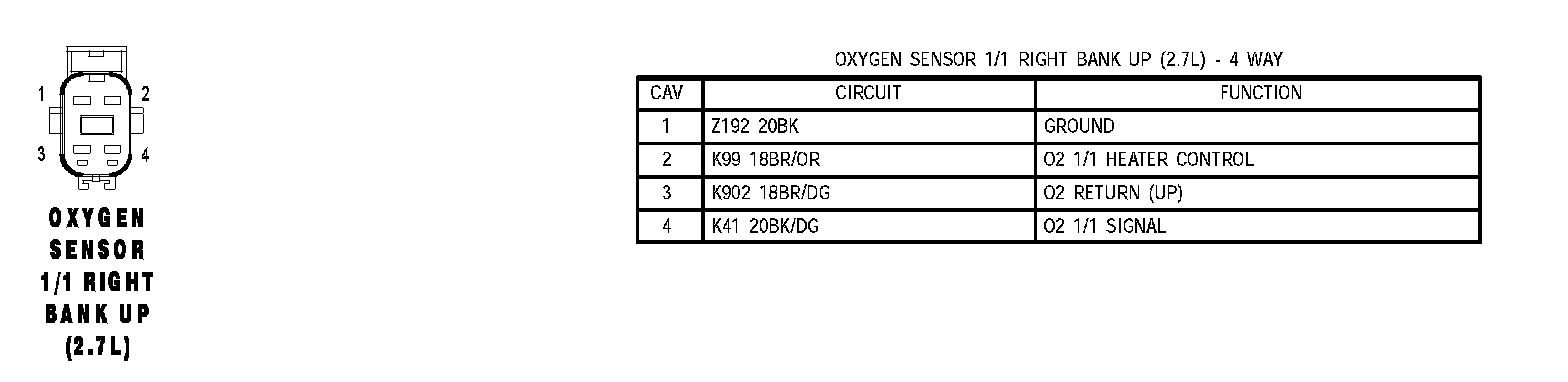

Oxygen Sensor 1/1 Right Bank Up (2.7L):

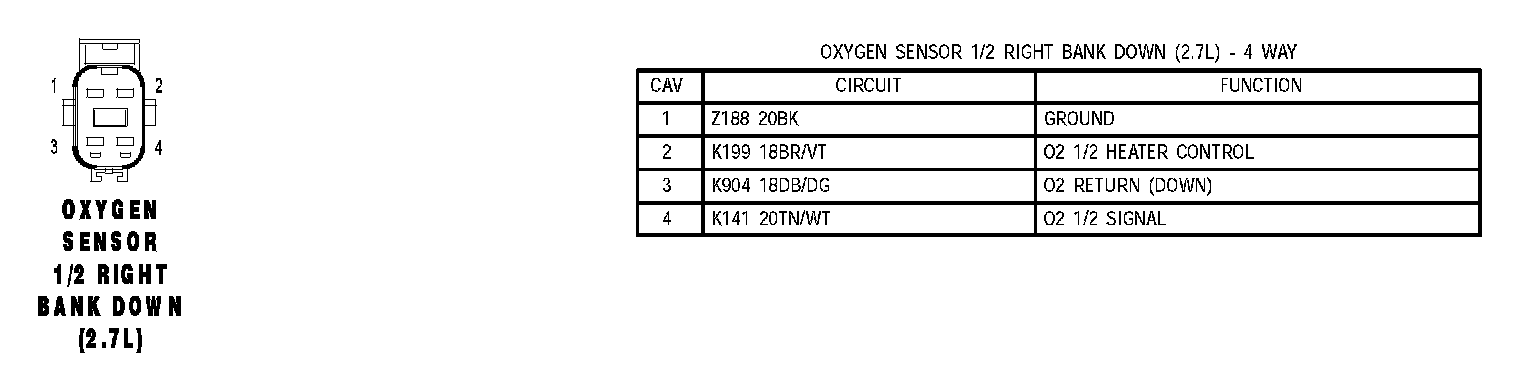

Oxygen Sensor 1/2 Right Bank Down (2.7L):

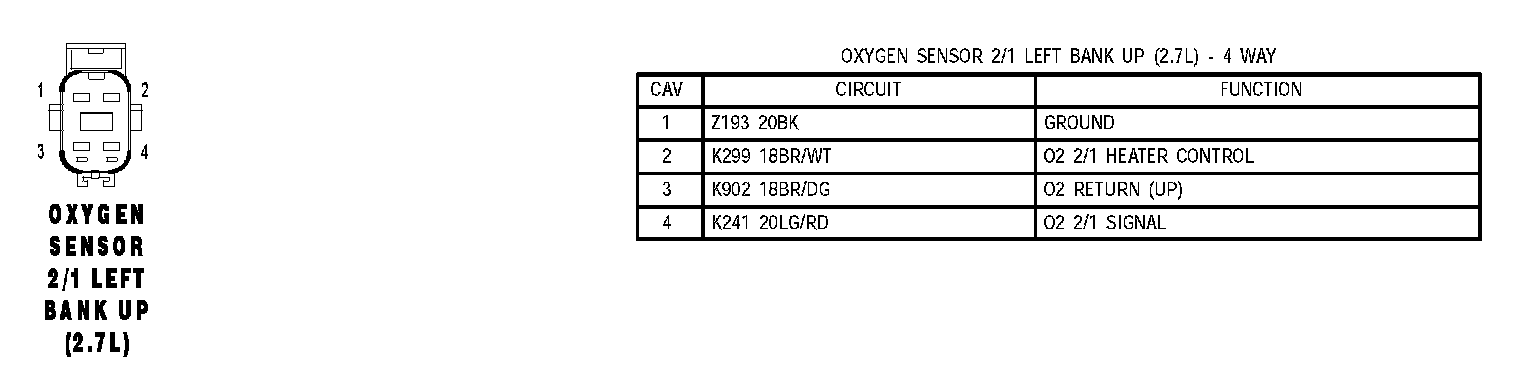

Oxygen Sensor 2/1 Left Bank Up (2.7L):

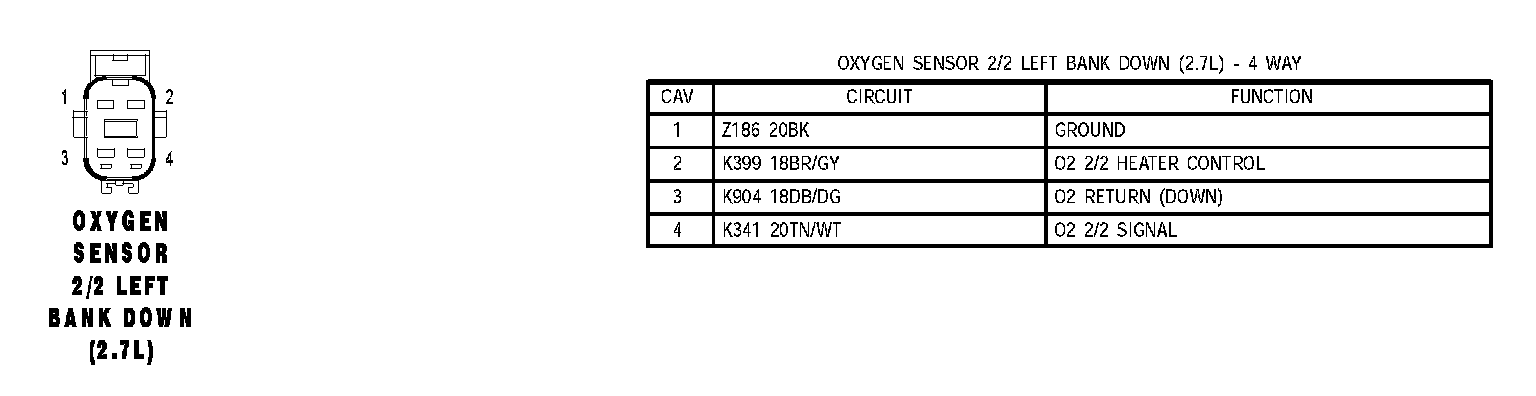

Oxygen Sensor 2/2 Left Bank Down (2.7L):
