Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Alignment Switch

Headlamp Alignment Switch

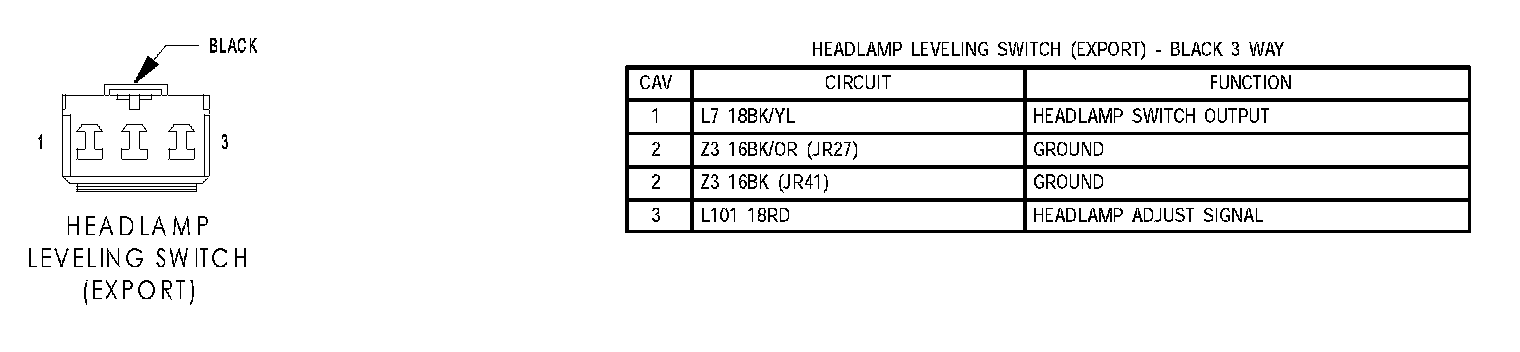

Headlamp Leveling Switch(Export):
