Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector

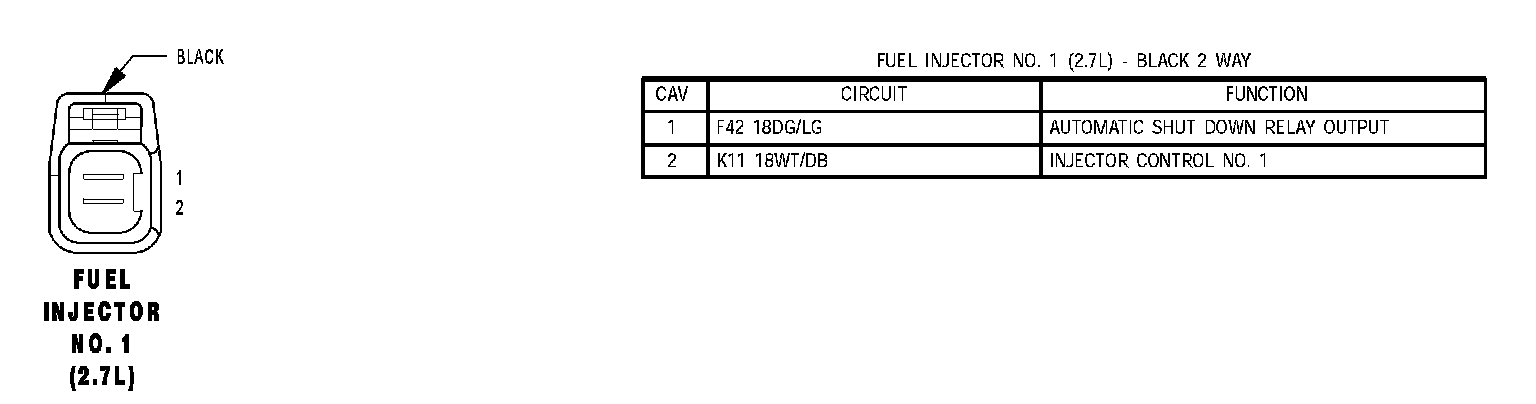

Fuel Injector No.1 (2.7L):



Fuel Injector No.2 (2.7L):

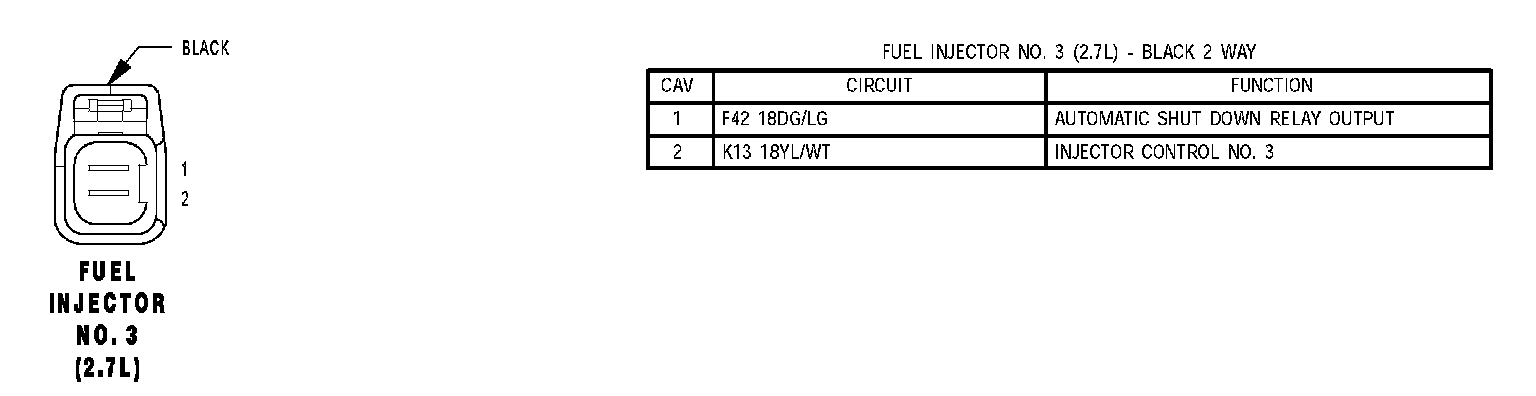

Fuel Injector No.3 (2.7L):



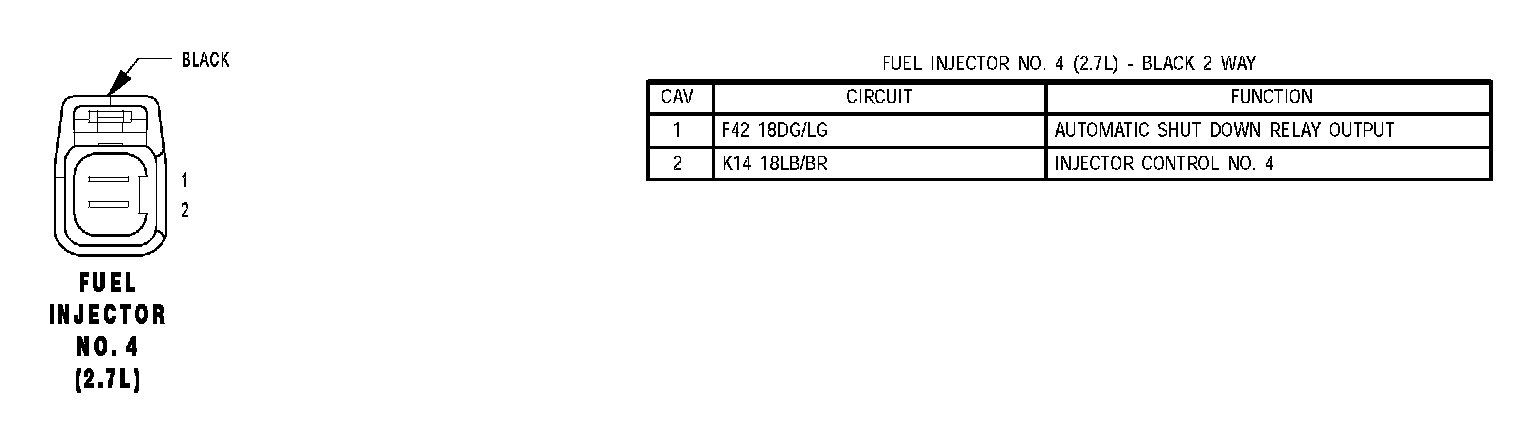

Fuel Injector No.3 (2.7L):

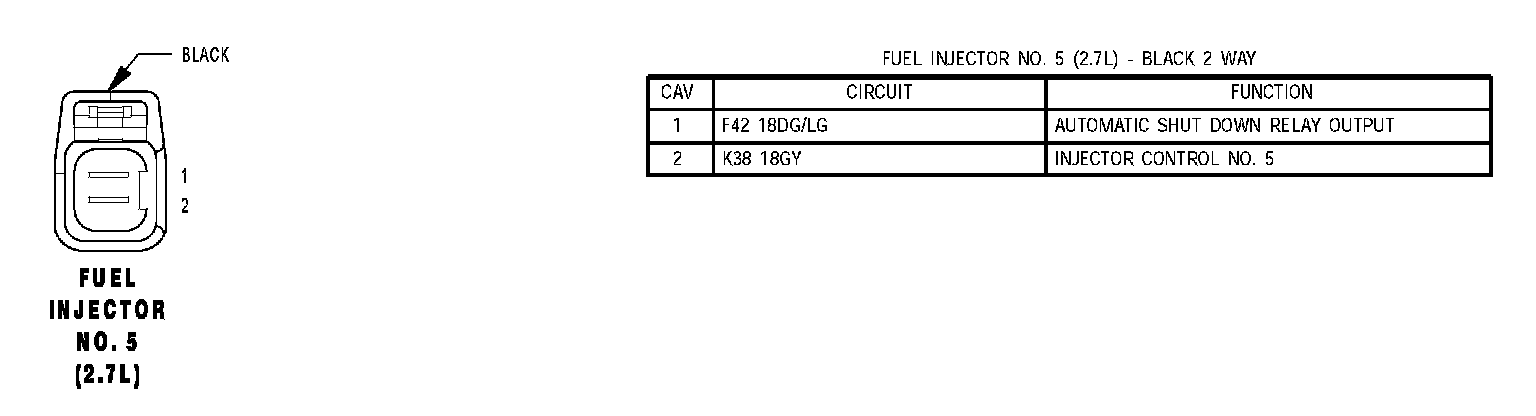

Fuel Injector No.5 (2.7L):

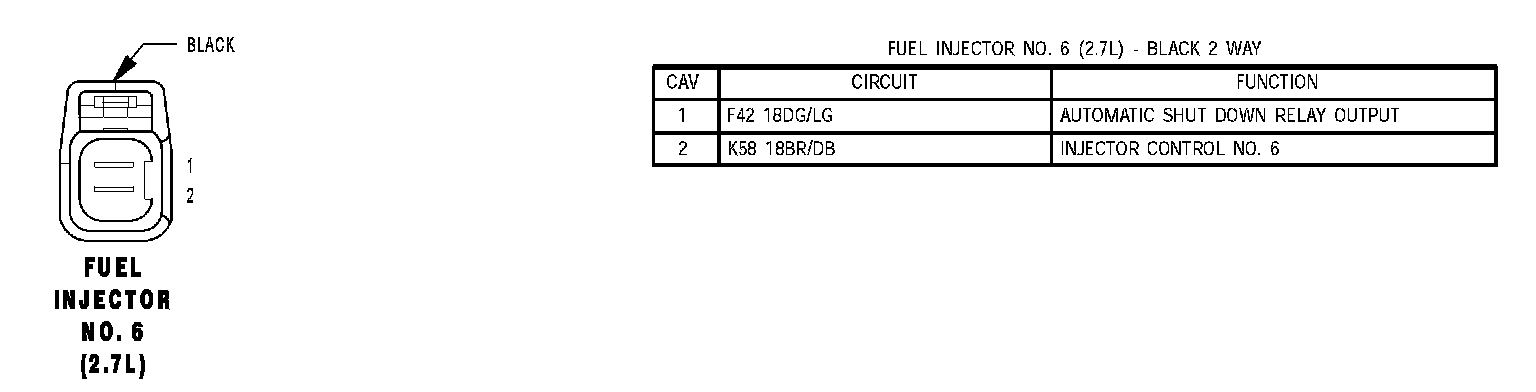

Fuel Injector No.6 (2.7L):
