Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

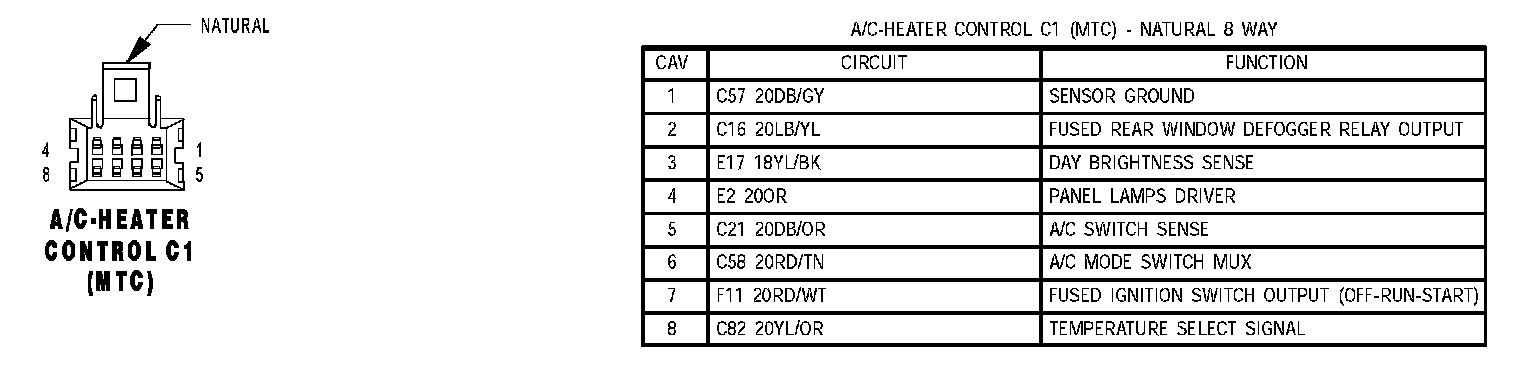

A/C-Heater Control C1 (MTC):

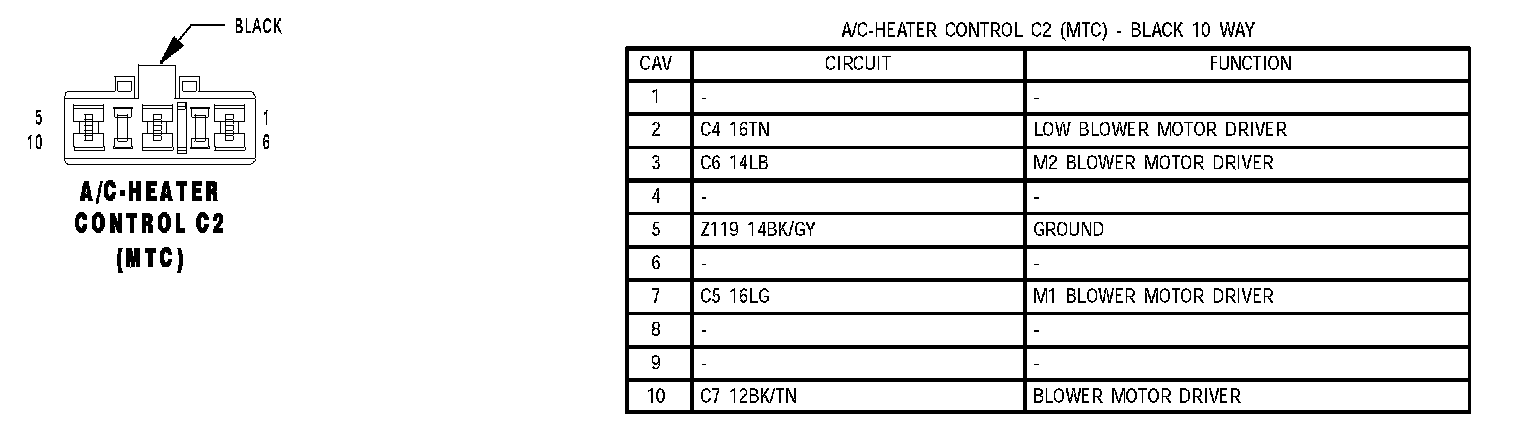

A/C-Heater Control C2 (MTC):
