Sebring Convertible V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C300
>>
C104
C104

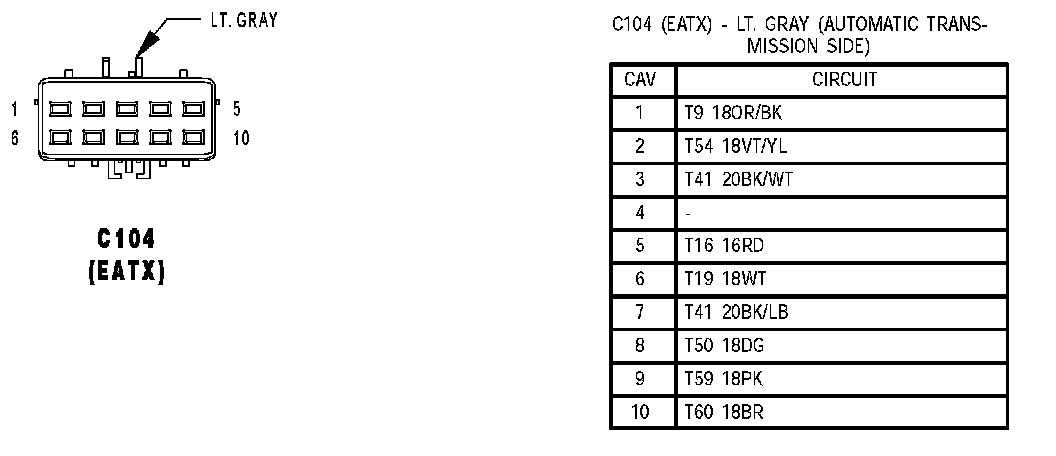

C104 (EATX):

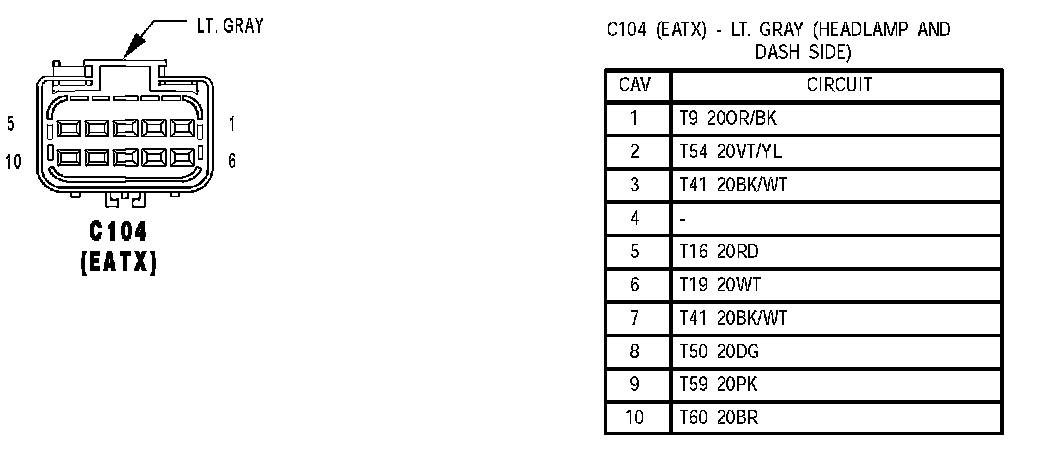

C104 (EATX):
