Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

Body Control Module C1:

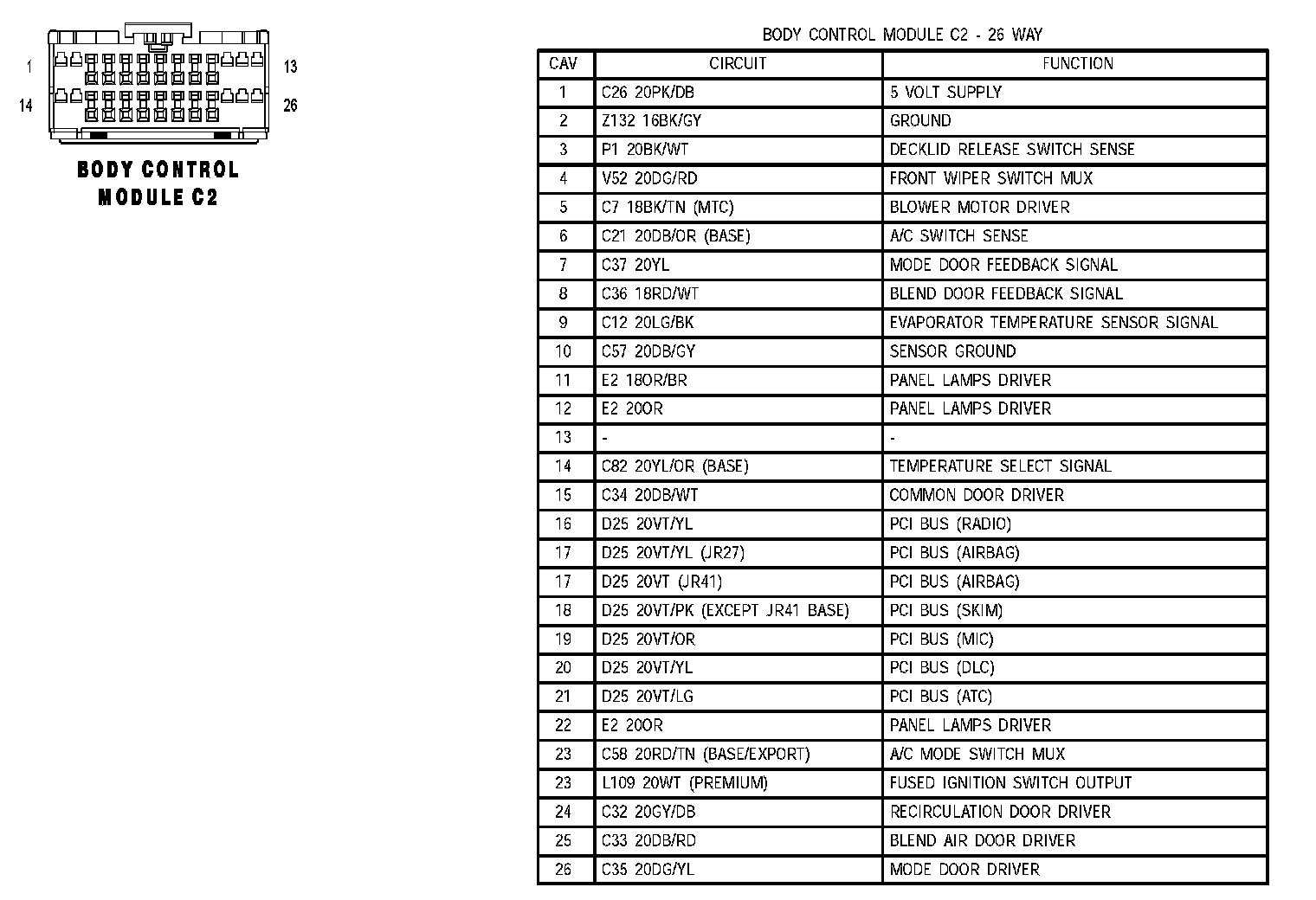

Body Control Module C2:

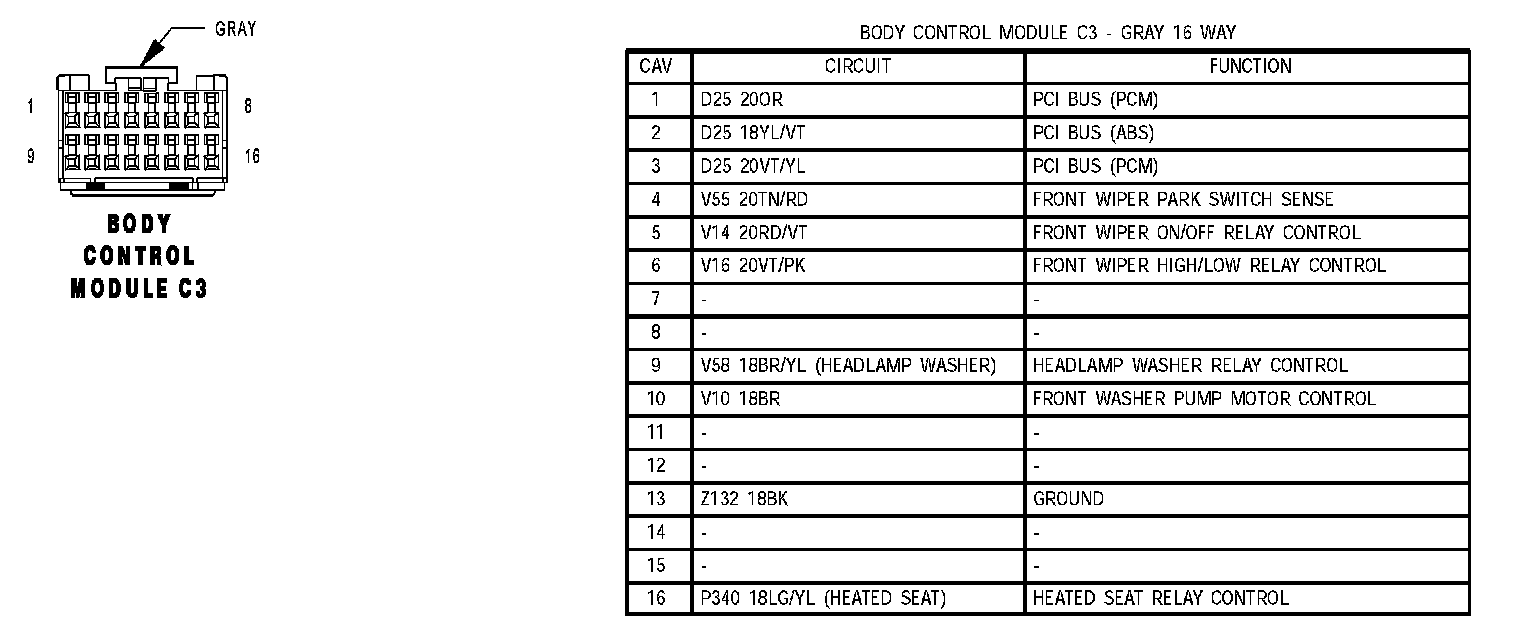

Body Control Module C3:

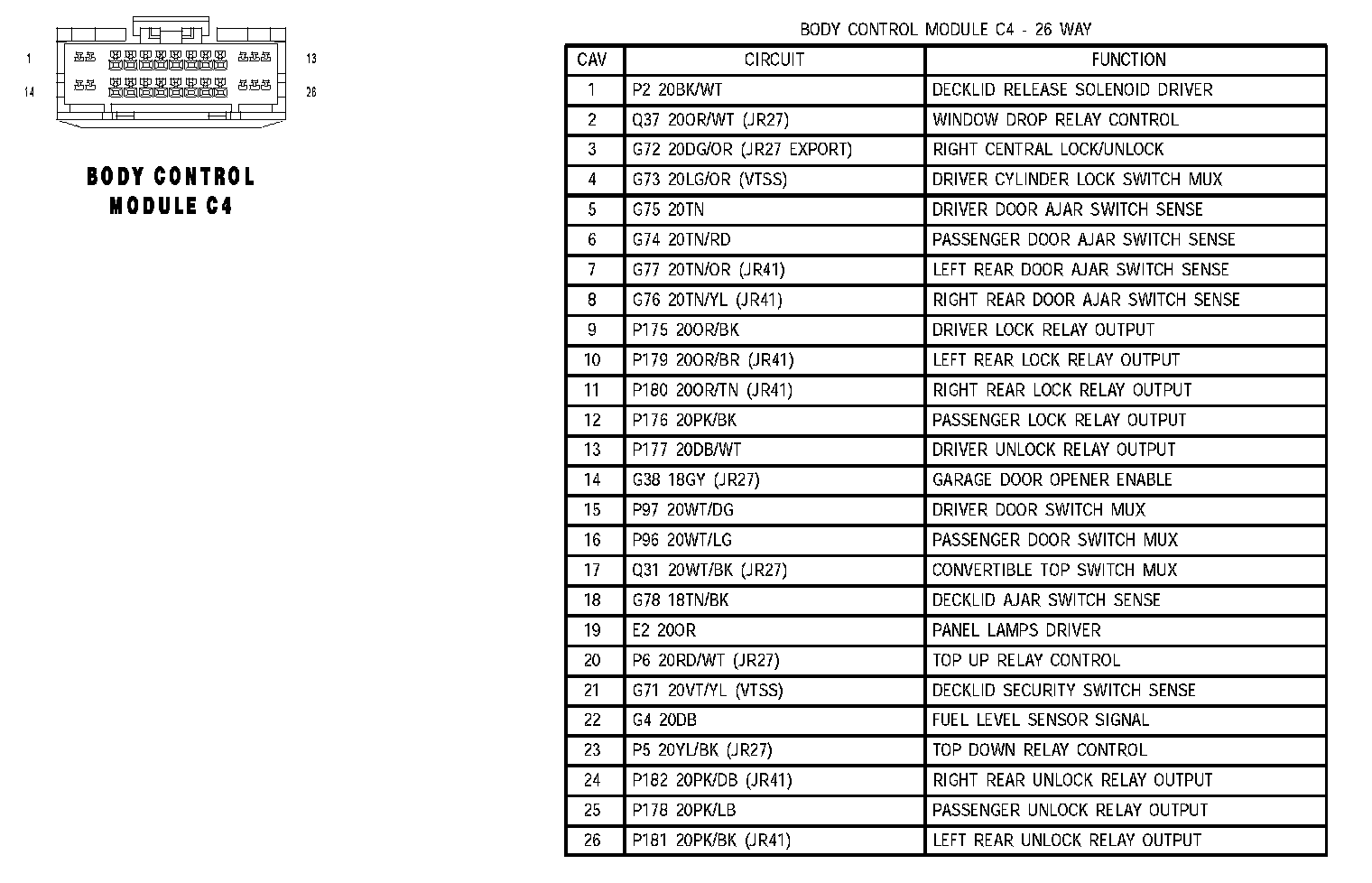

Body Control Module C4:

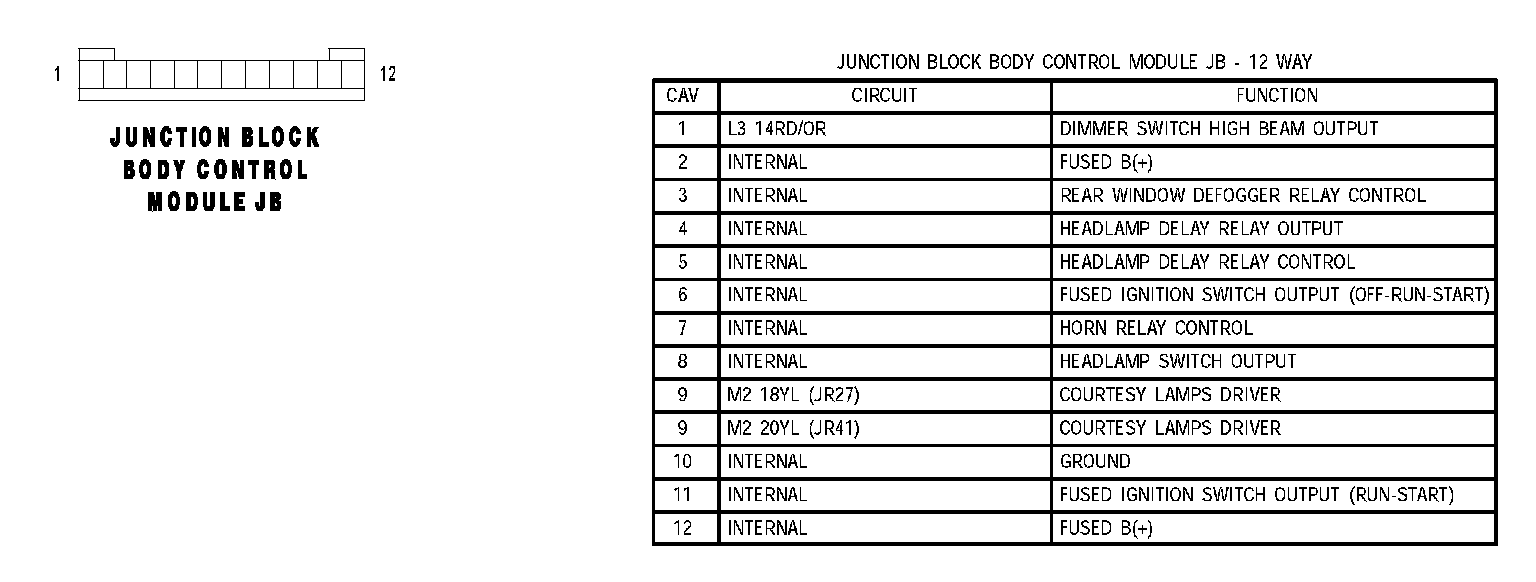

Junction Block Body Control Module JB:
