Convertible Top Storage

CONVERTIBLE TOP STORAGE

REMOVAL

CAUTION: To avoid damage to the sunvisors, rotate the driver's and passenger's sunvisor down before lowering or raising the convertible top.

1. Raise and secure convertible top.
2. Remove screws attaching headliner to top well.

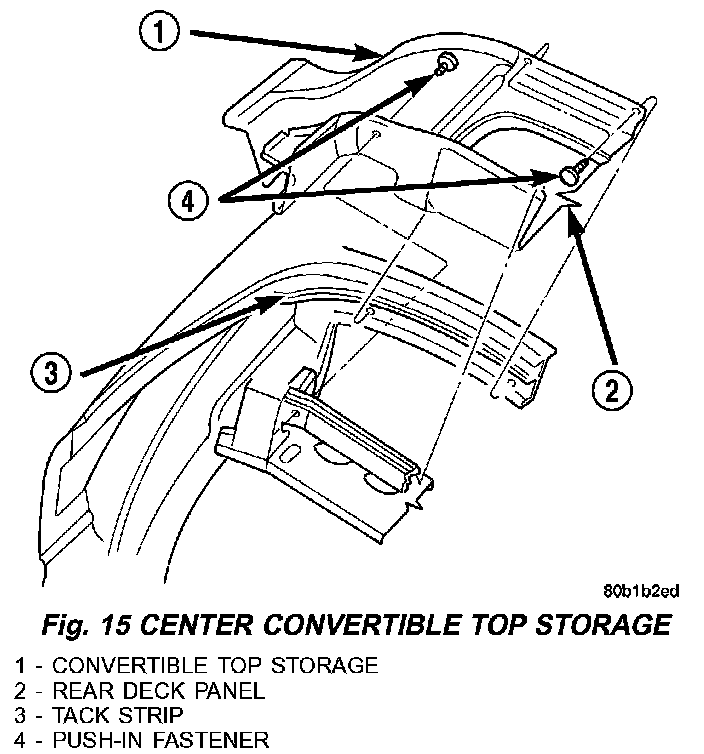

Fig. 15:

3. Remove push in fasteners attaching convertible top storage section to rear of storage area (Fig. 15).
4. Remove push in fasteners attaching storage area below seat belt bezel.
5. Pull rear of storage area upward and disengage front of storage area from beauty bar.
6. Remove storage area from vehicle.

INSTALLATION

CAUTION: To avoid damage to the sunvisors, rotate the driver's and passenger's sunvisor down before lowering or raising the convertible top.

1. Position convertible top storage area in vehicle.
2. Engage front of storage area under beauty bar and push rear of storage area downward into position.
3. Install push in fasteners attaching convertible top storage section to rear of storage area.
4. Install push in fasteners to attach storage areas below seat belt bezel.
5. Install screws attaching headliner to top well.
