CD Changer Trim Bezel

CD CHANGER TRIM BEZEL

REMOVAL

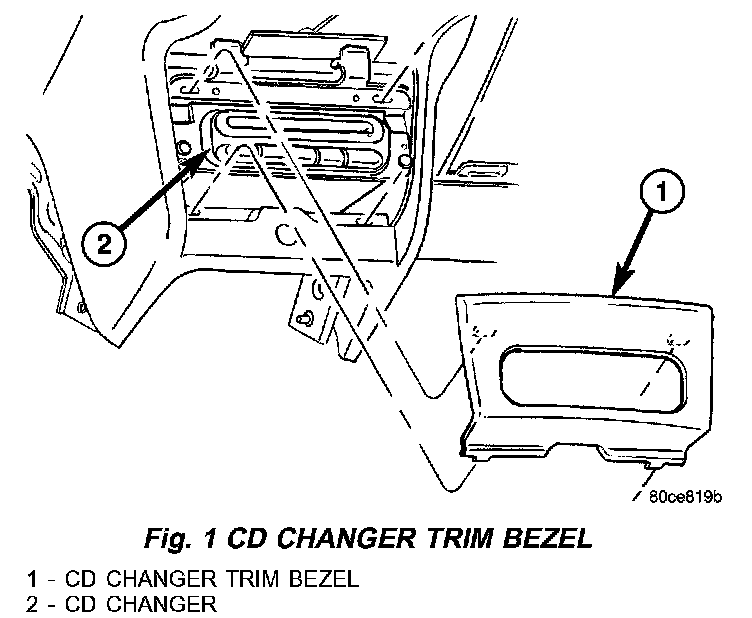

Fig. 1:

1. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on the CD changer trim bezel and remove from the vehicle (Fig. 1).

INSTALLATION

1. Position CD changer trim bezel over the retaining slots and firmly snap into place (Fig. 1).
