P1694

Symptom: P1694-BUS COMMUNICATION WITH ENGINE MODULE

When Monitored:
Continuously with ignition key on.

Set Condition:
If no bus messages are received from the Powertrain Control Module (PCM) for 10 seconds.

Note: Due to the integration of the Powertrain and Transmission Control Modules, bus communication between the modules is internal.

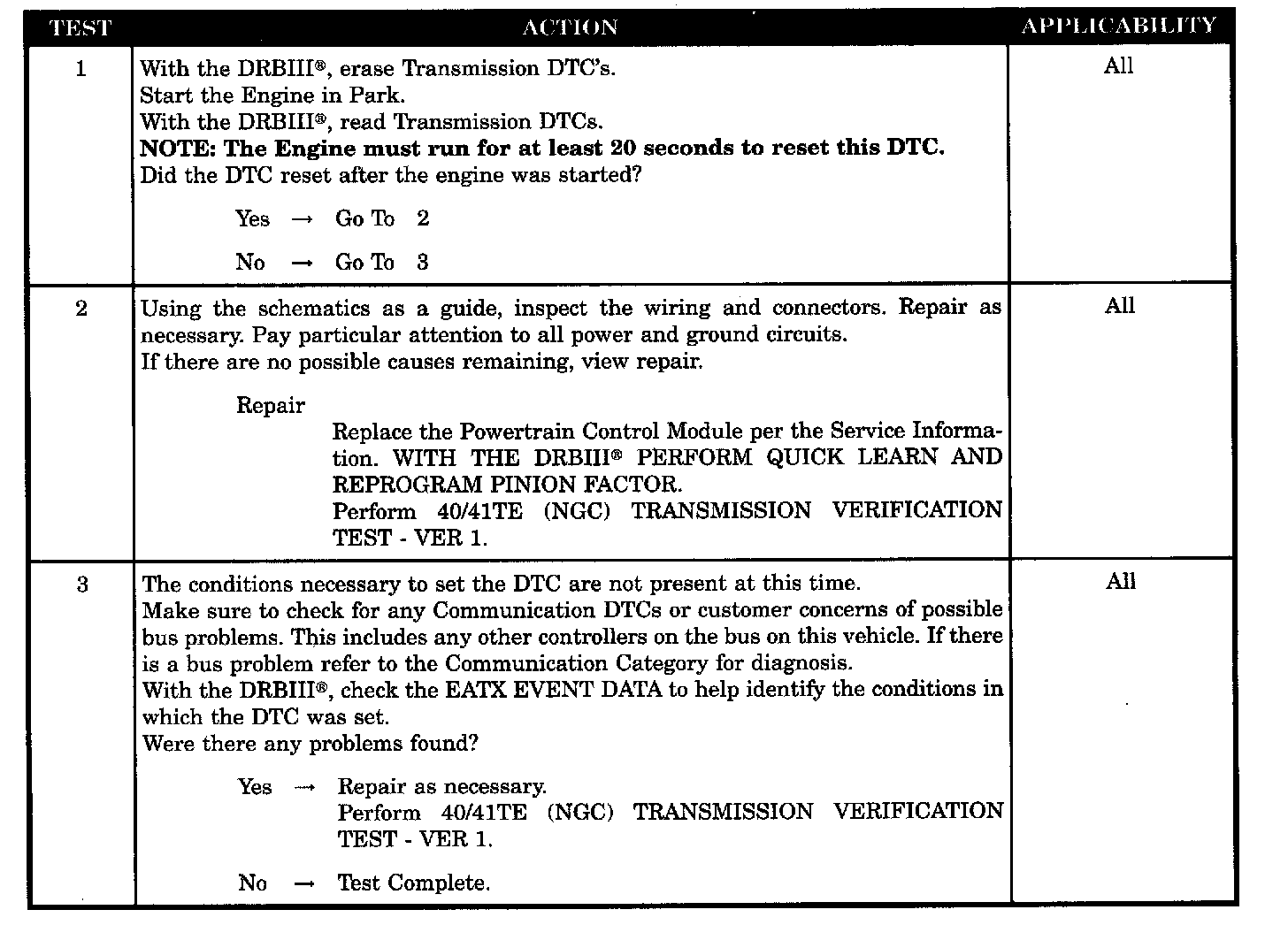

Test 1-3:

POSSIBLE CAUSES
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
