P1603

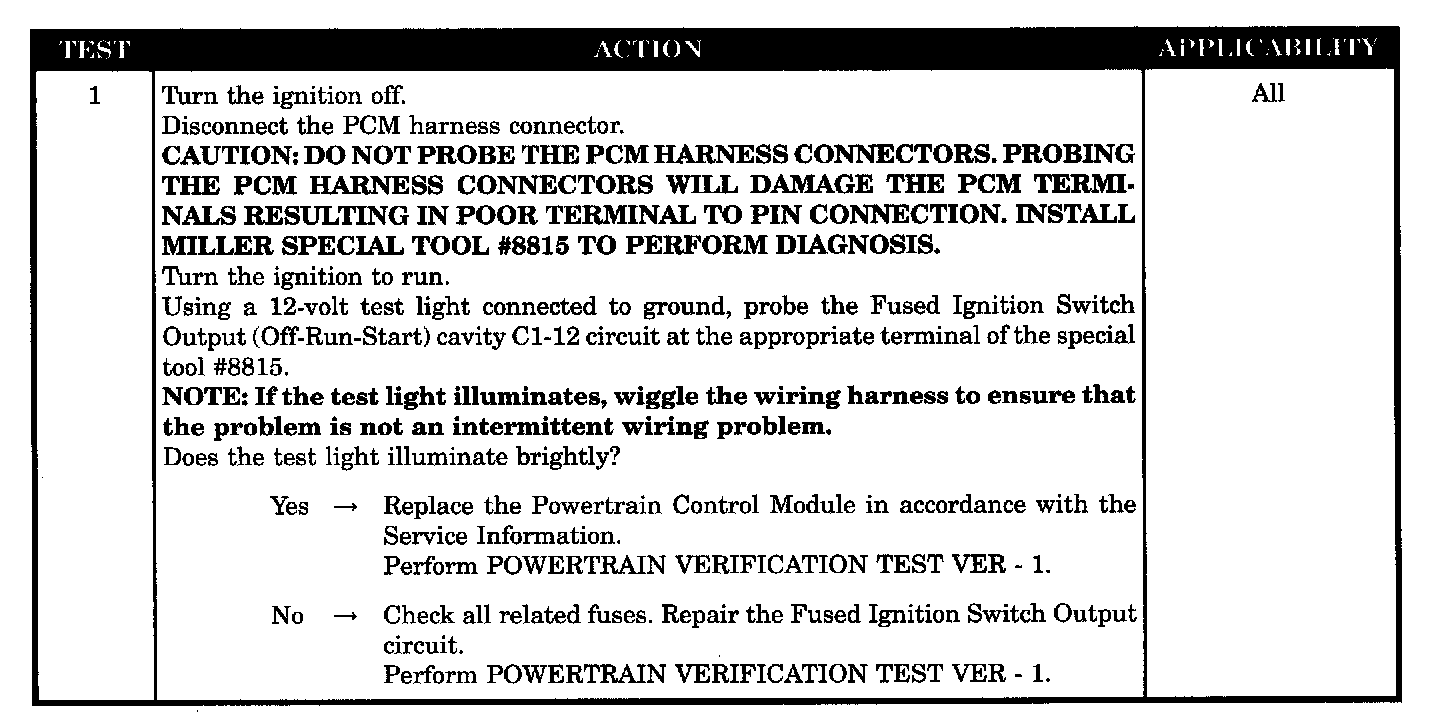

Test 1:






SYMPTOM
P1603-PCM INTERNAL DUAL-PORT RAM COMMUNICATION

POSSIBLE CAUSES
- Fuse ignition switch output (off-run-start)
- PCM internal failure
