P0765

Symptom:
P0765-UD SOLENOID CIRCUIT

When Monitored:
Initially at power-up, then every 10 seconds thereafter. Also, immediately after a gear ratio or pressure switch error is detected.

Set Condition:
Three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or pressure switch error.

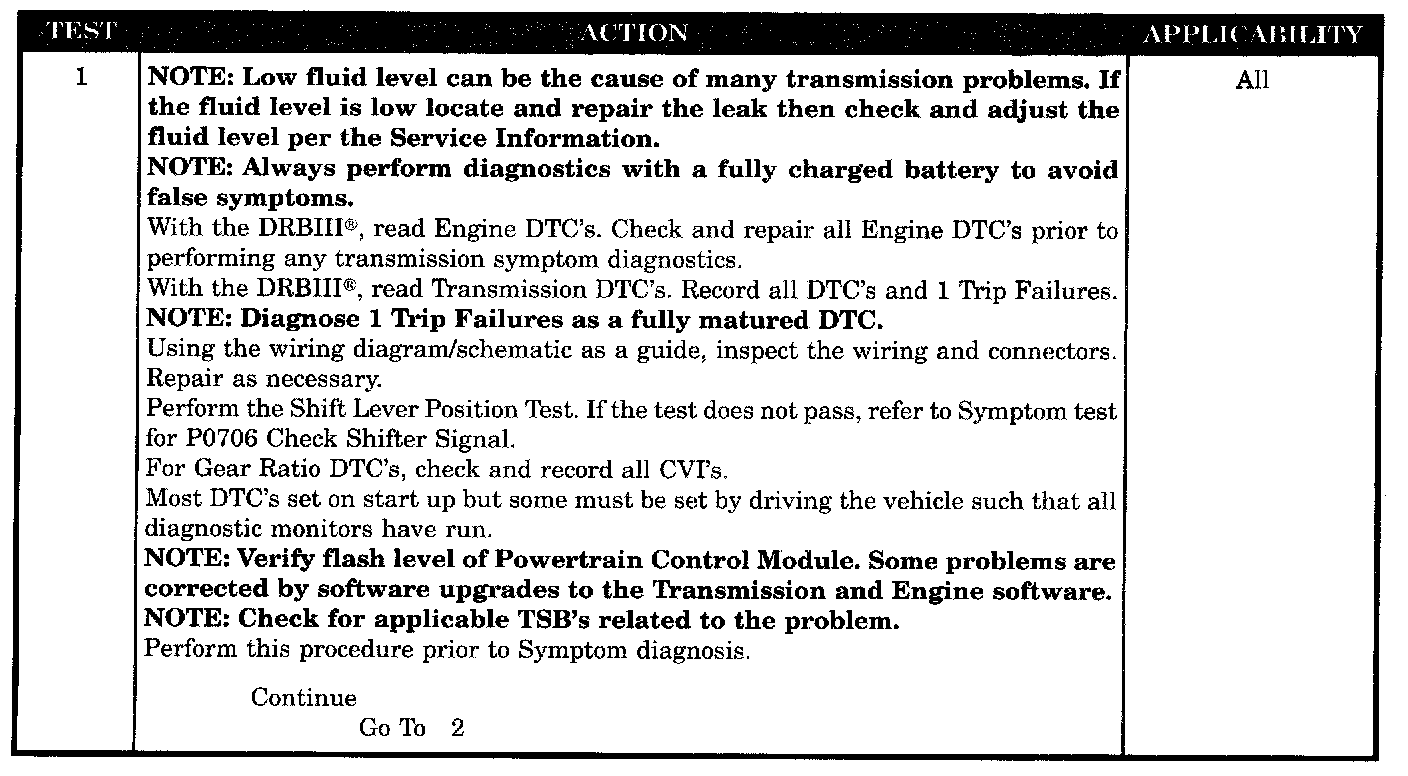

Test 1:

Test 2-6:

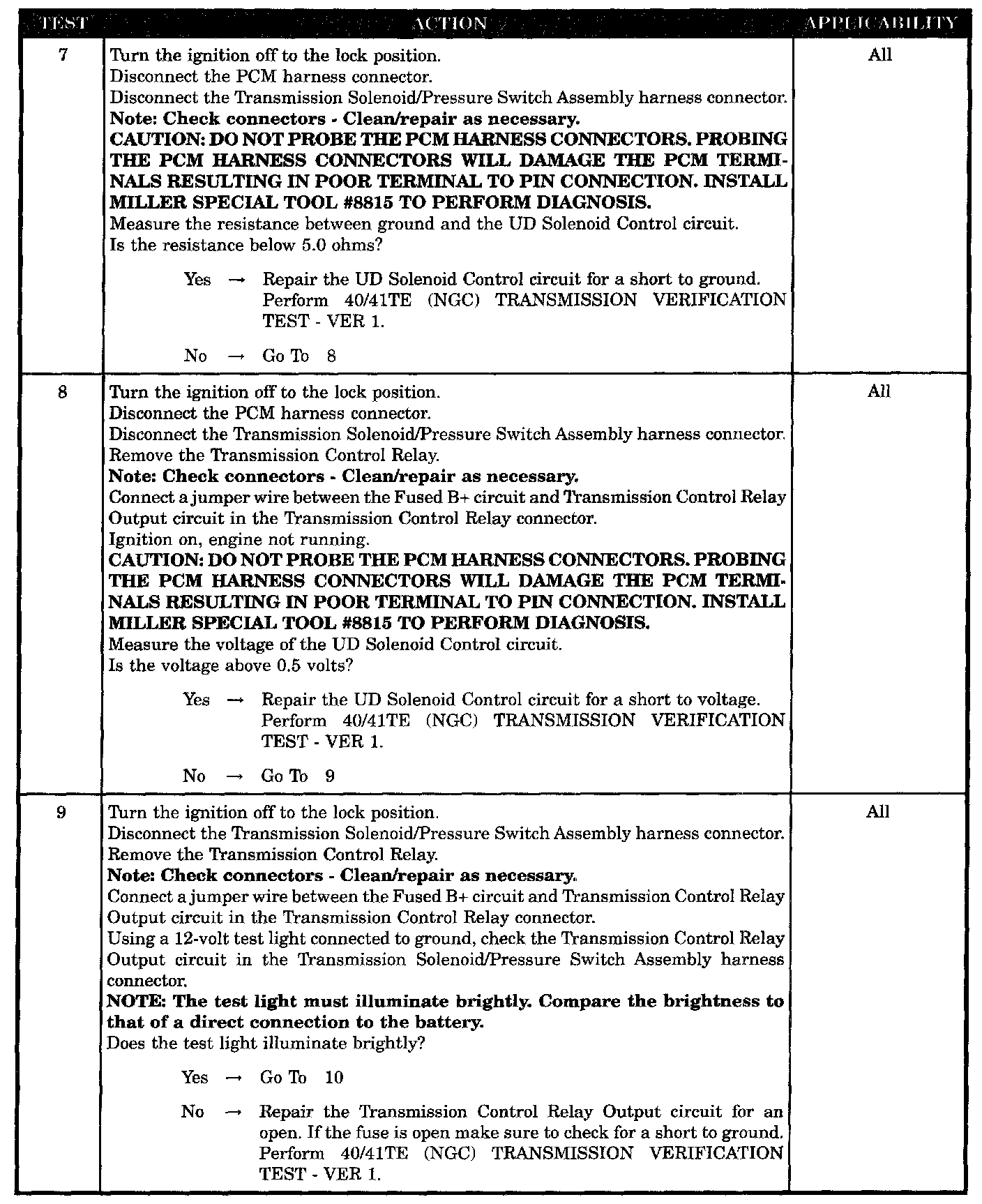

Test 7-9:

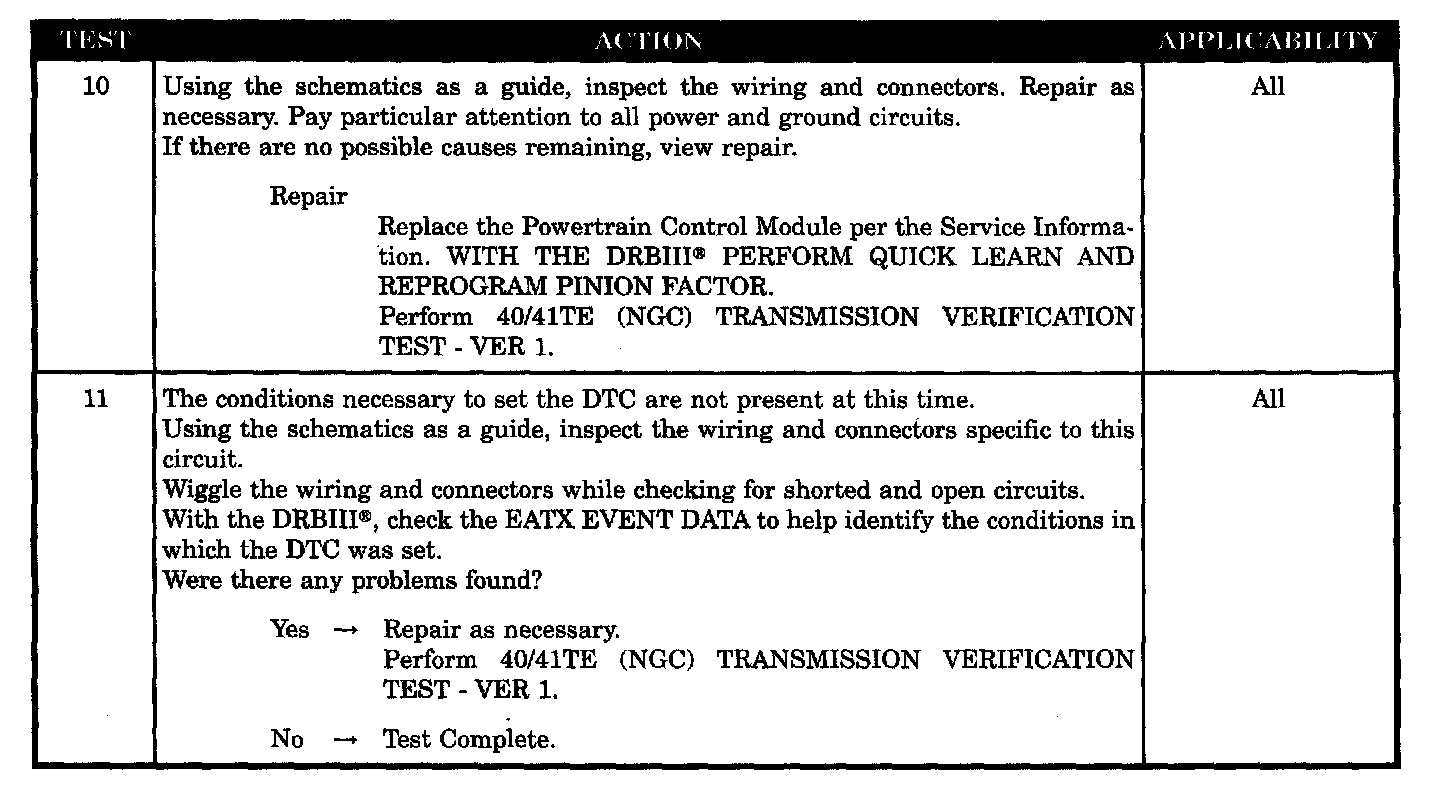

Test 10-11:

POSSIBLE CAUSES
- RELATED RELAY DTC'S PRESENT
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- UD SOLENOID CONTROL CIRCUIT OPEN
- UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- UD SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
- UD SOLEN01D
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
