P0715

Symptom:
P0715-INPUT SPEED SENSOR ERROR

When Monitored:
The transmission gear ratio is monitored continuously while the transmission is in gear.

Set Condition:
If there is an excessive change in the Input RPM in any gear.

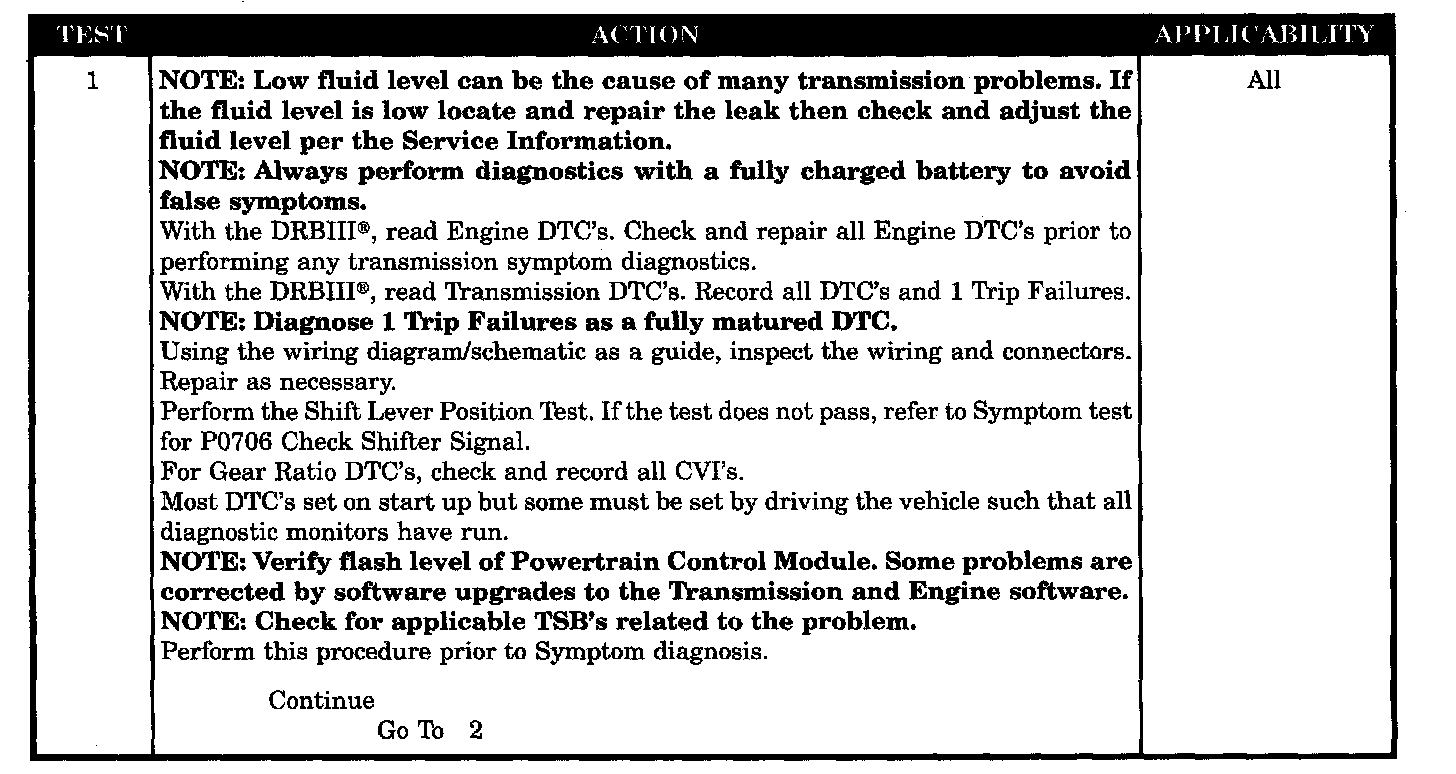

Test 1:

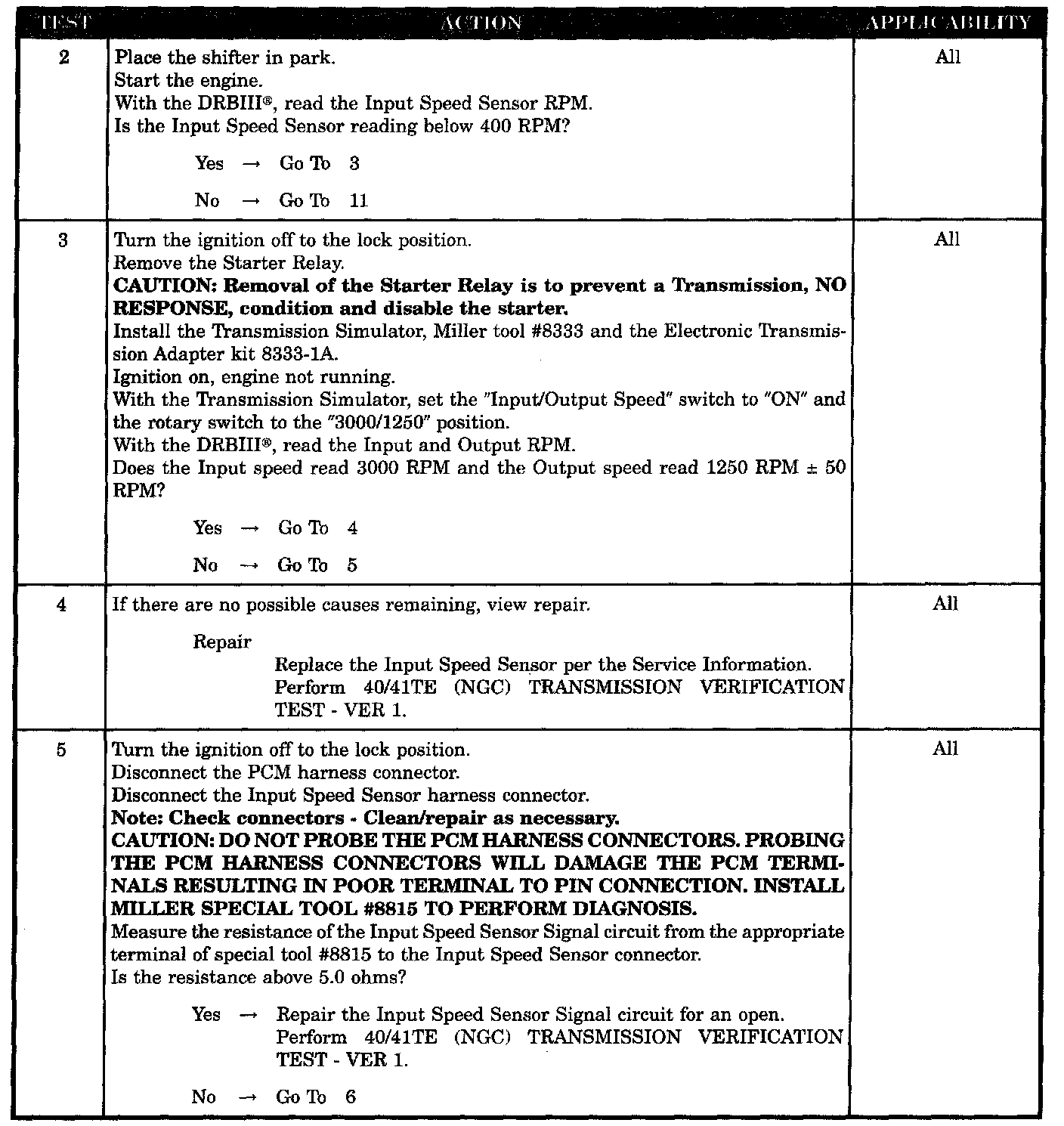

Test 2-5:

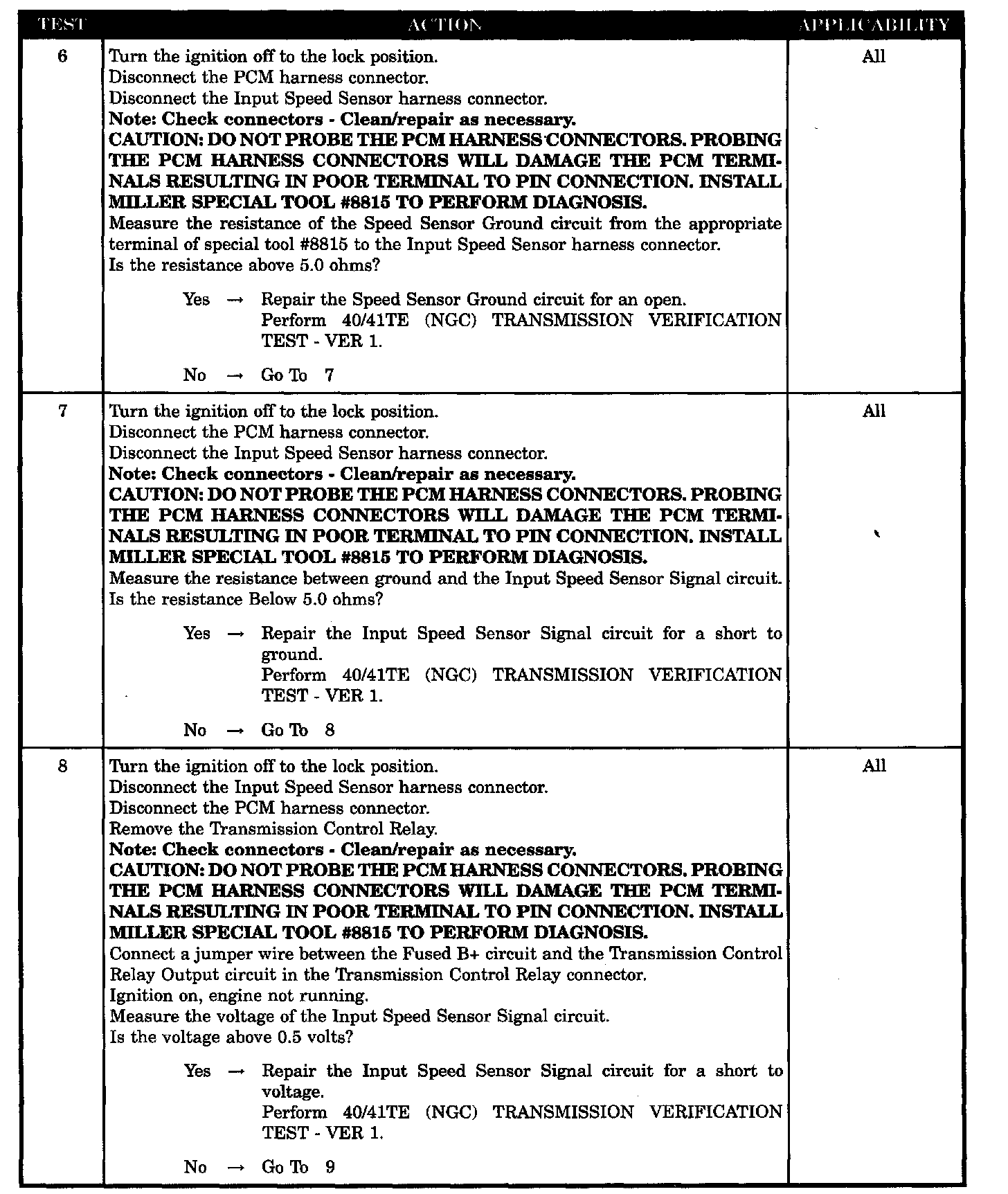

Test 6-8:

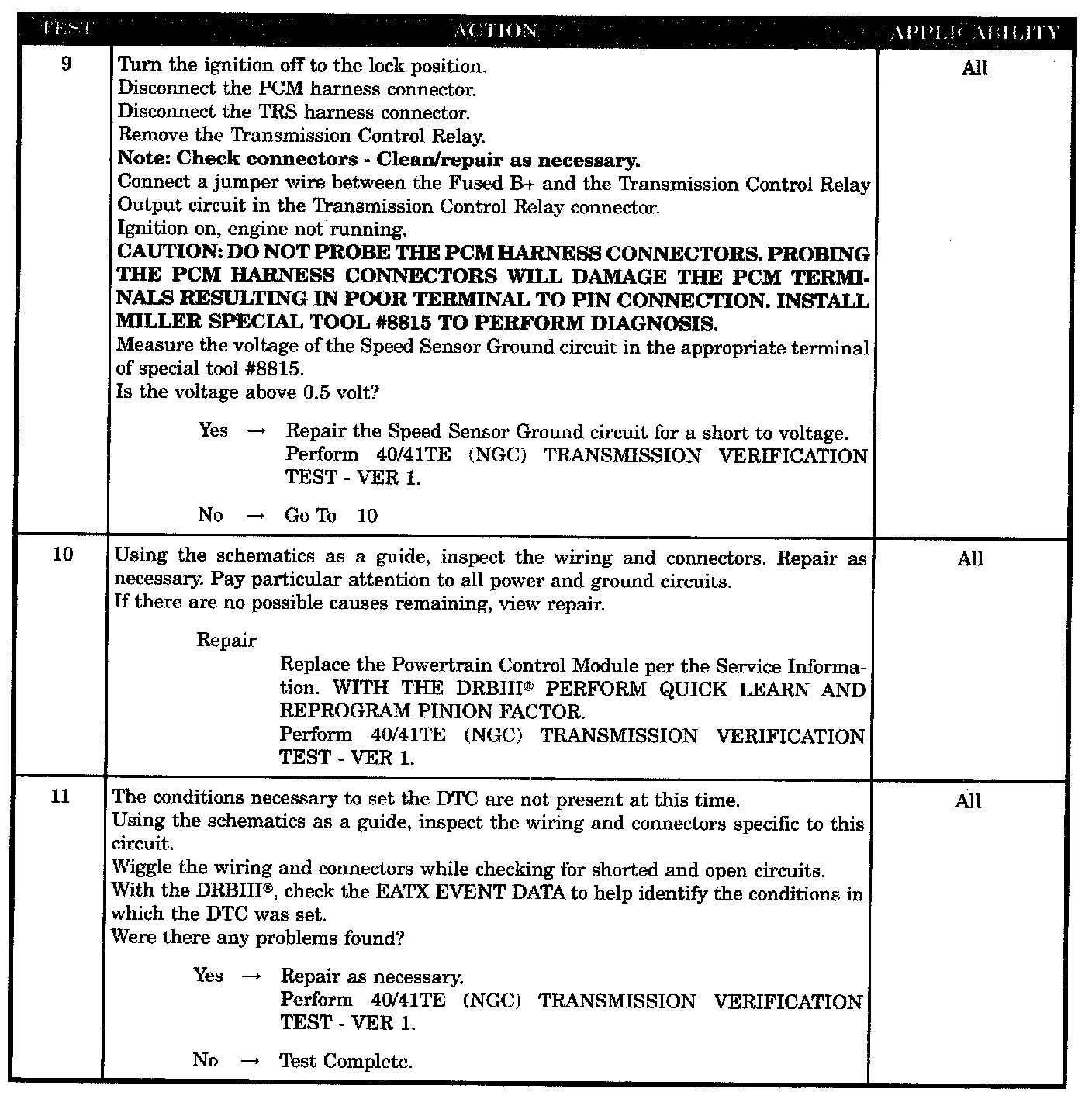

Test 9-11:

POSSIBLE CAUSES
- INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN
- SPEED SENSOR GROUND CIRCUIT OPEN
- INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
- INPUT SPEED SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
