P0714

Symptom:

P0714-TRANSMISSION TEMPERATURE SENSOR INTERMITTENT

When Monitored:
Continuously with the ignition on and engine running.

Set Condition:
The DTC will set when the monitored Temperature Sensor voltage fluctuates or changes abruptly within a predetermined period of time.

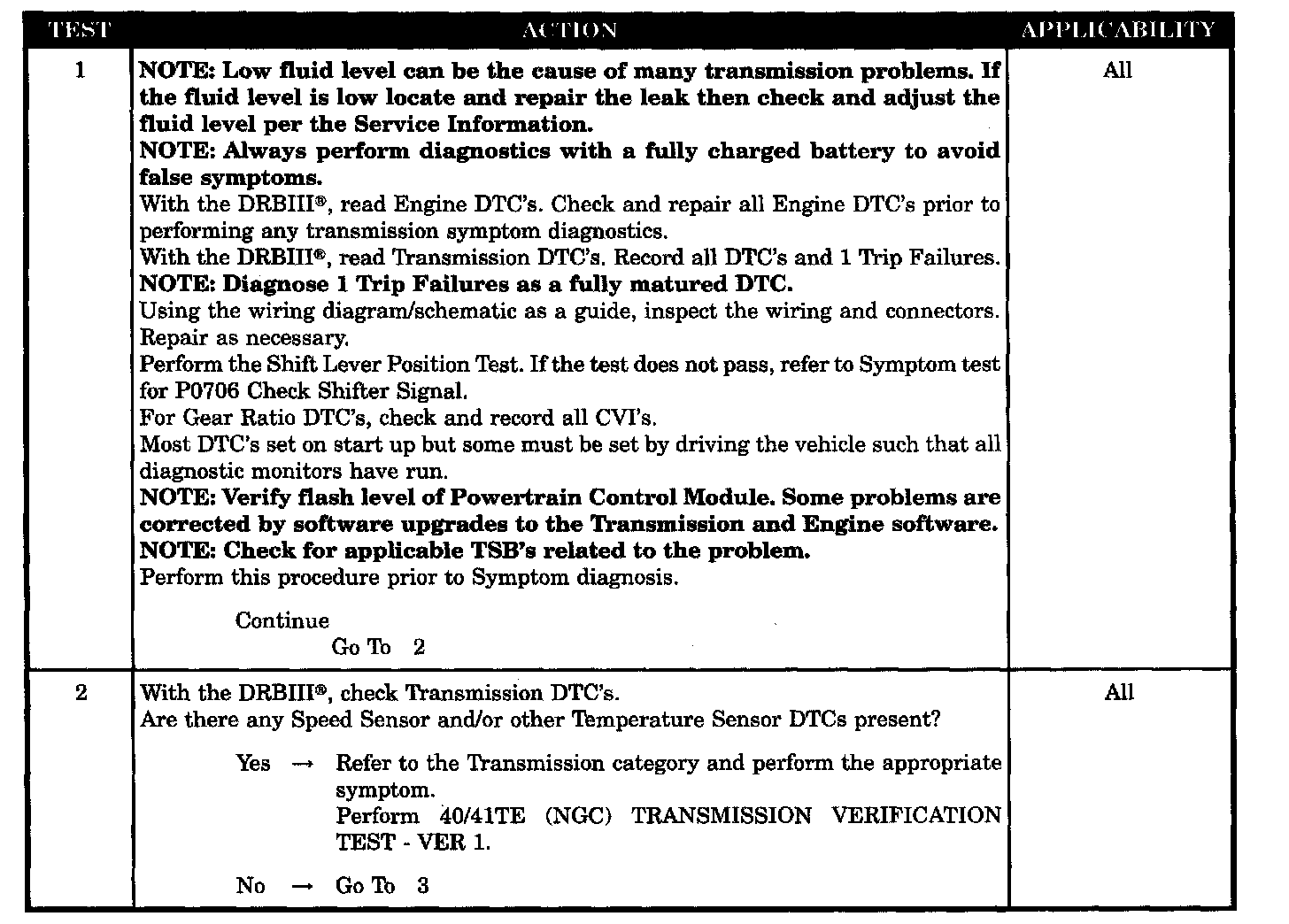

Test 1-2:

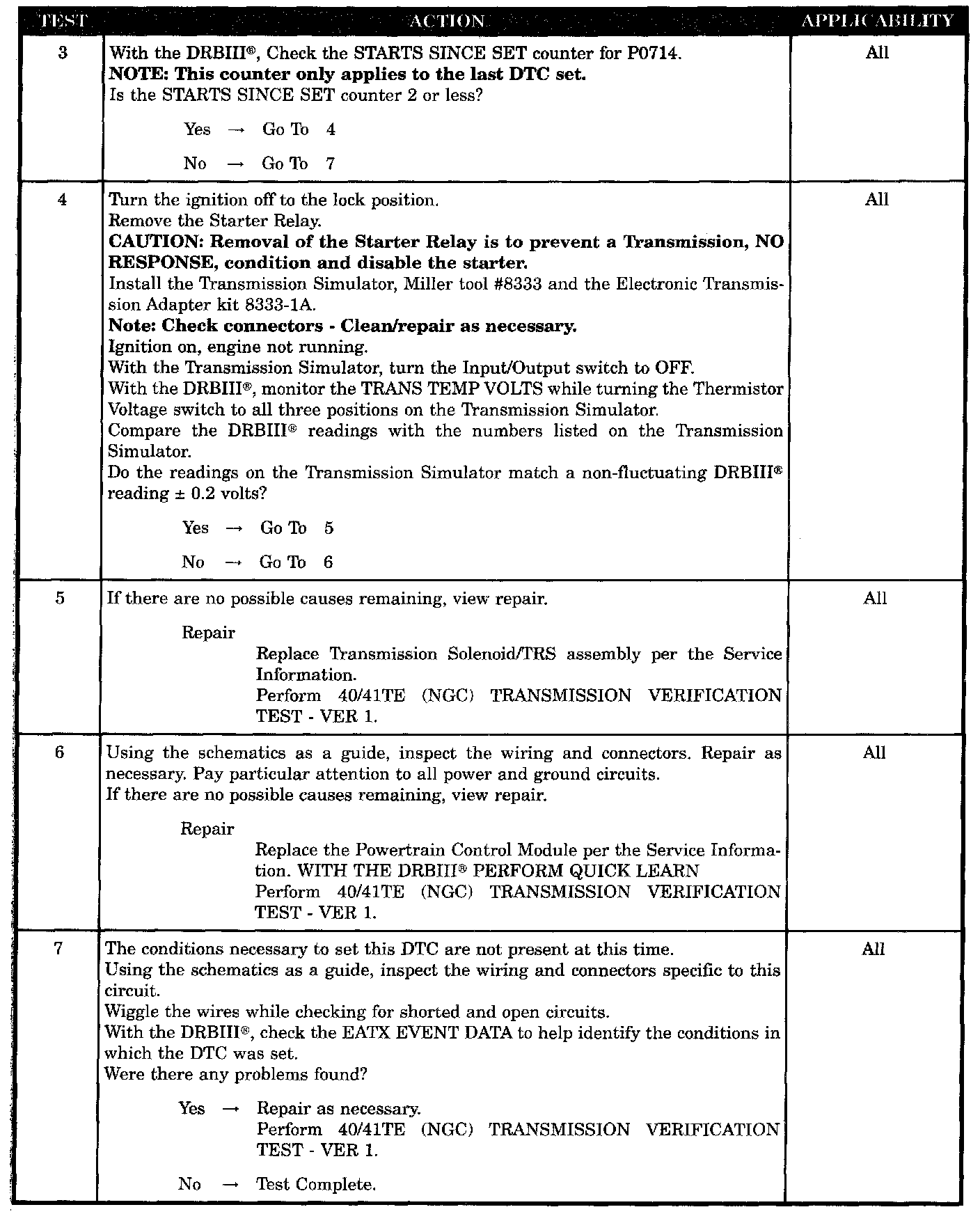

Test 3-7:

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
