P0406

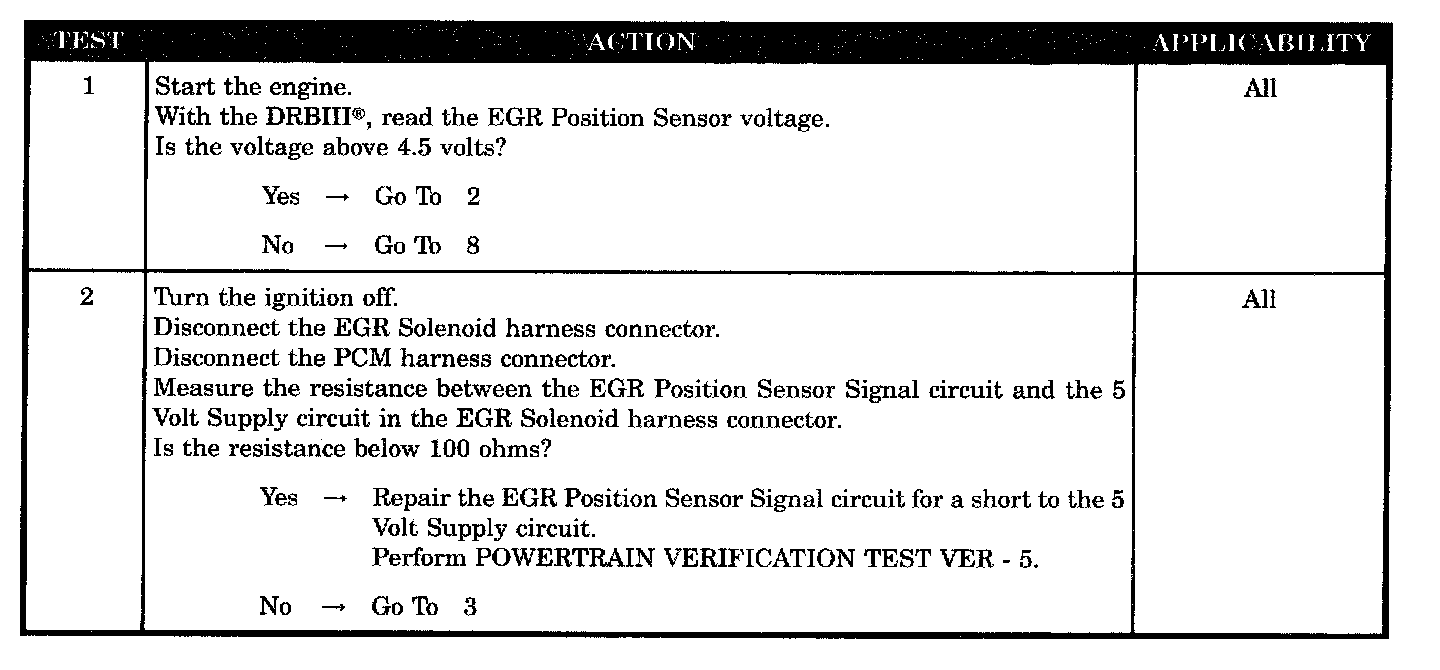

Test 1 - 2:

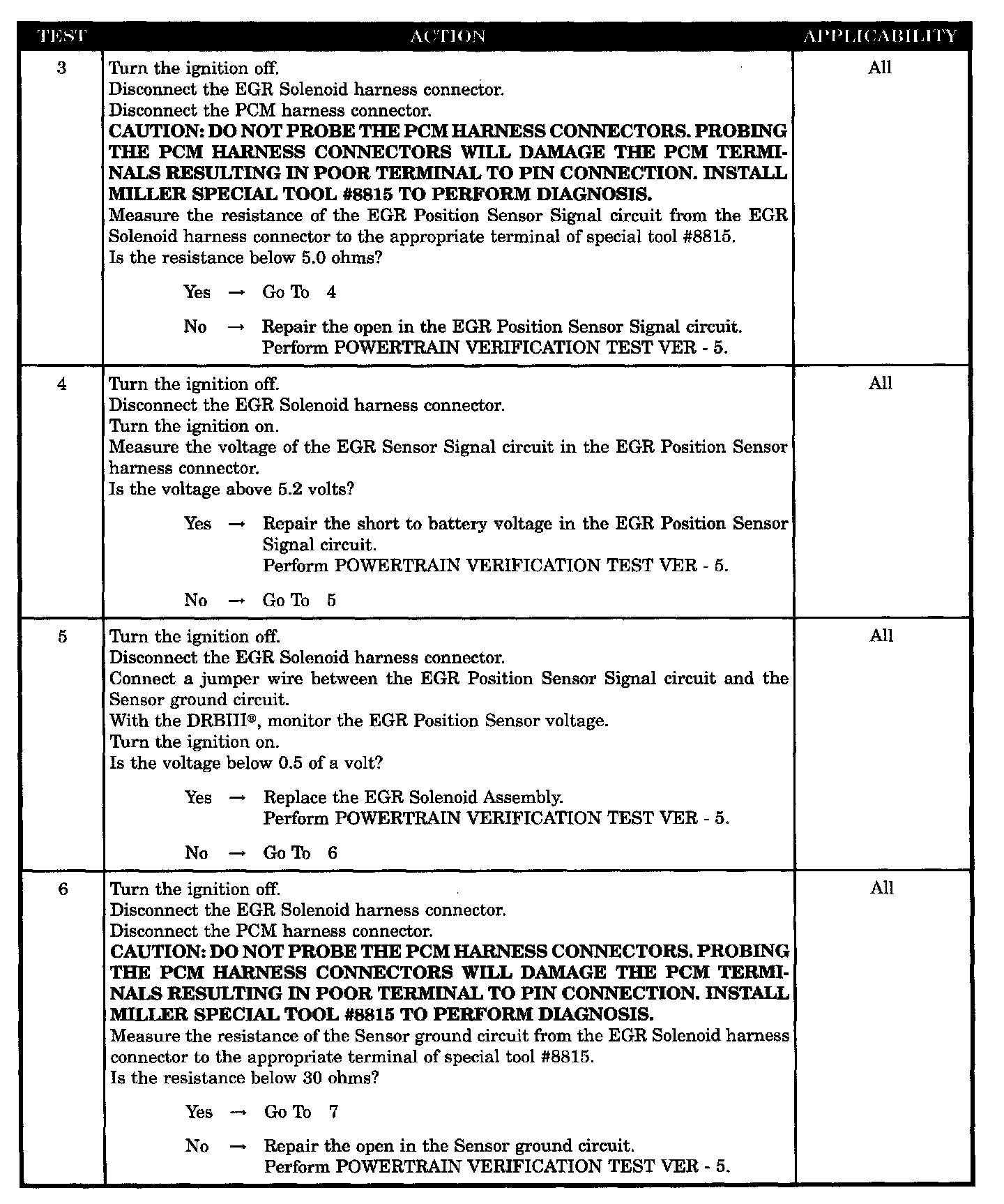

Test 3 - 6:

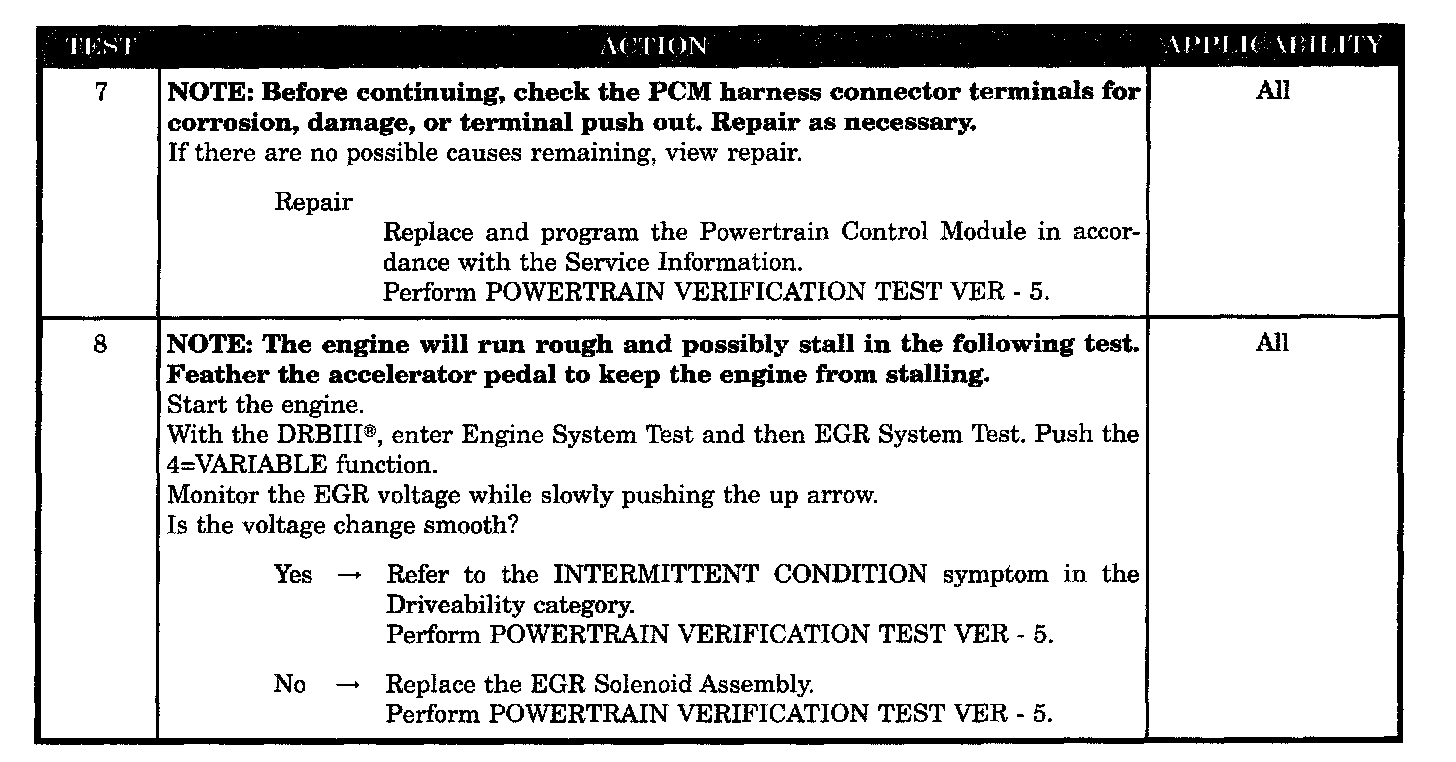

Test 7 - 8:

SYMPTOM
P0406 - EGR POSITION SENSOR HIGH

WHEN MONITORED
With the ignition on. Battery voltage greater than 10 volts.

SET CONDITION
EGR position sensor signal is greater than 4.89. One trip Fault.

POSSIBLE CAUSES
- EGR position sensor signal circuit open
- EGR position sensor sweep
- Intermittent condition
- EGR position sensor signal circuit shorted to 5 volt supply circuit
- EGR position sensor signal circuit shorted to battery voltage
- EGR solenoid assembly internal failure
- Sensor ground circuit open
- PCM
