Decklid Switch Disarm Failure

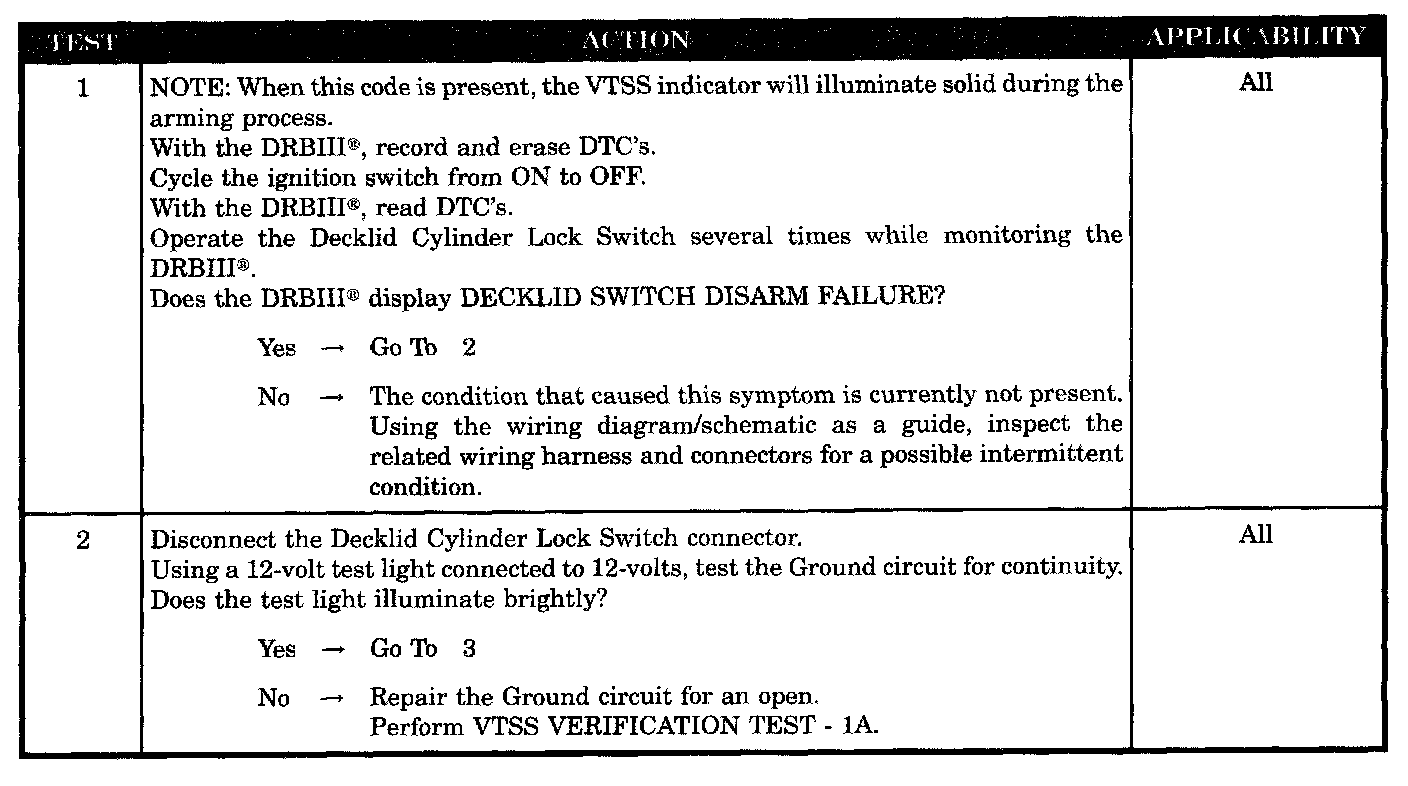

Test 1 - 2:

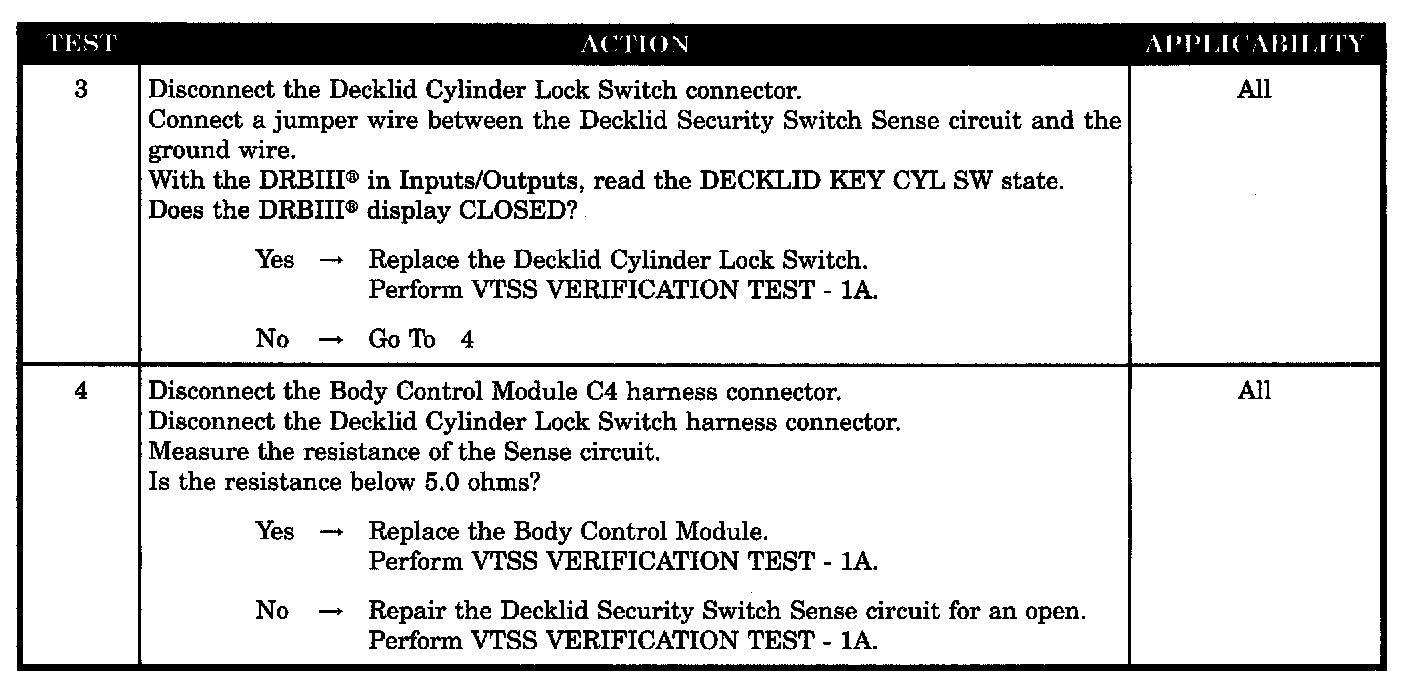

Test 3 - 4:

SYMPTOM
DECKLID SWITCH DISARM FAILURE

WHEN MONITORED
Continuously

SET CONDITION
If the decklid disarm switch is sensed in the open position for greater than 30 seconds.

POSSIBLE CAUSES
- Intermittent condition
- Decklid cylinder lock switch ground open
- Body control module internal malfunction
- Decklid cylinder lock switch open
- Decklid security switch sense circuit open
