Passenger Squib 2 Circuit Open

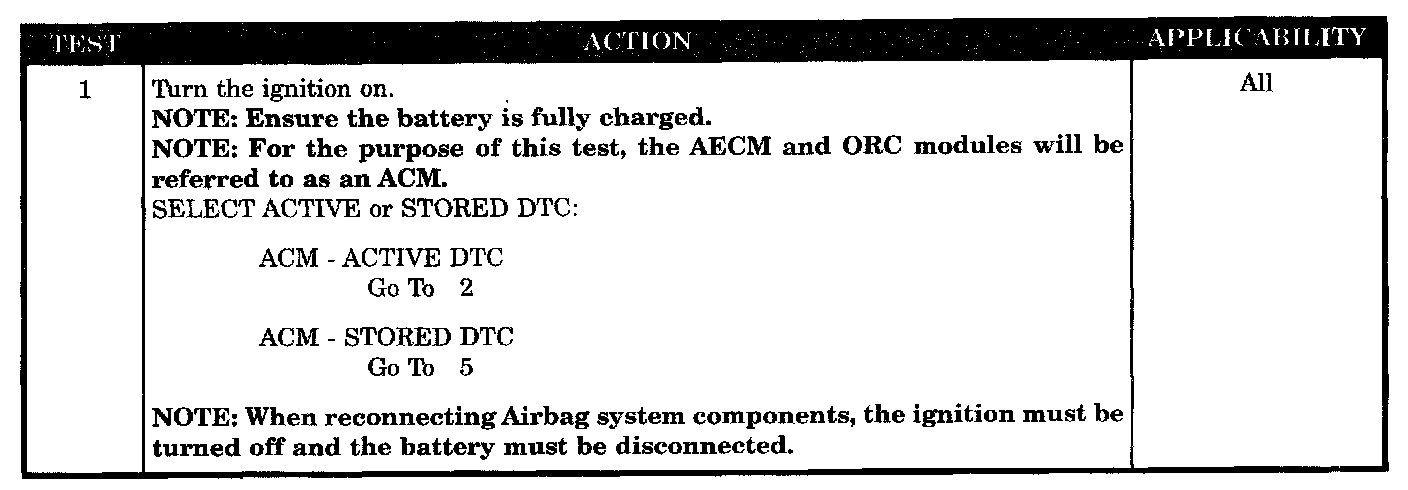

Test 1:

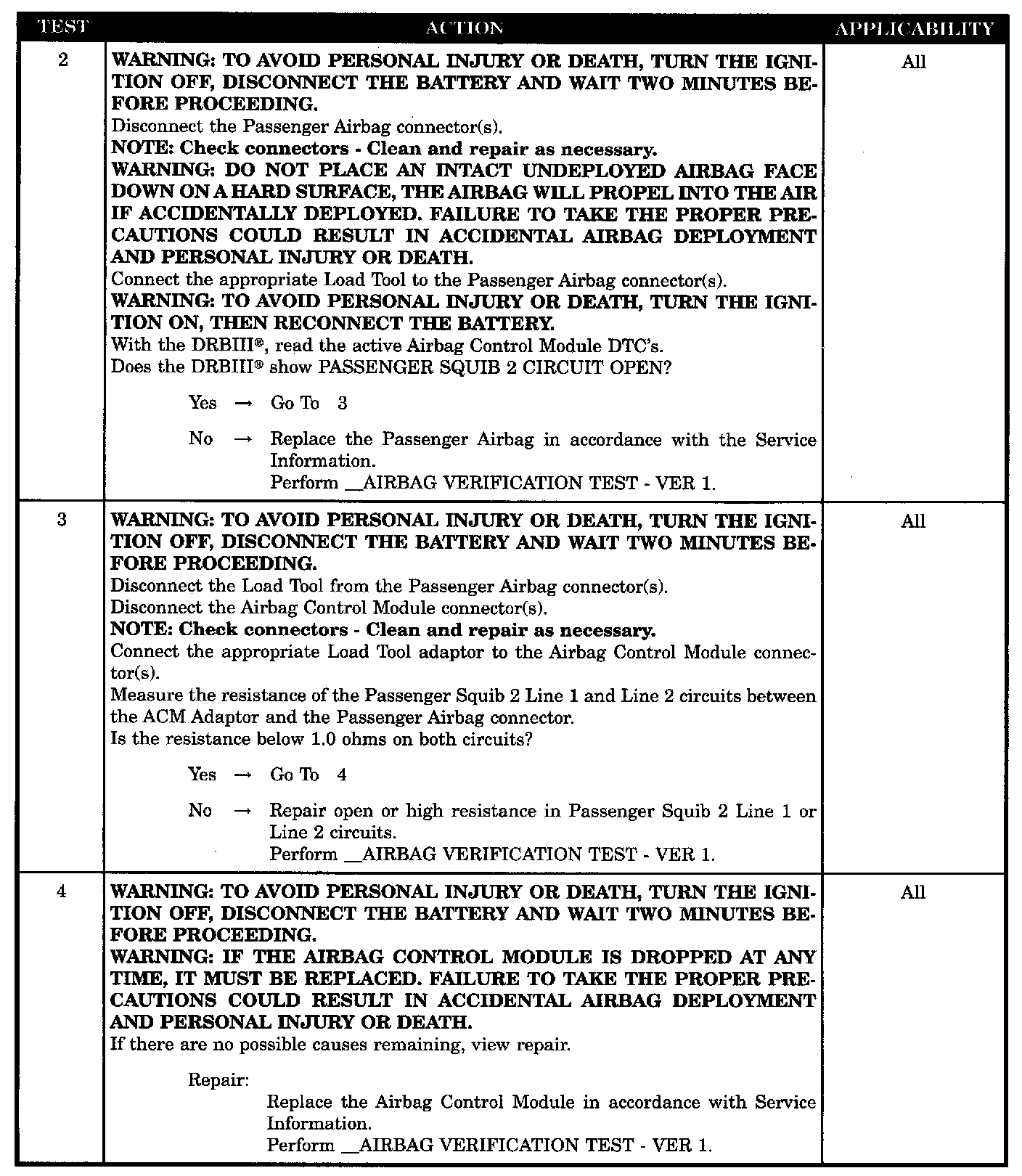

Test 2 - 4:

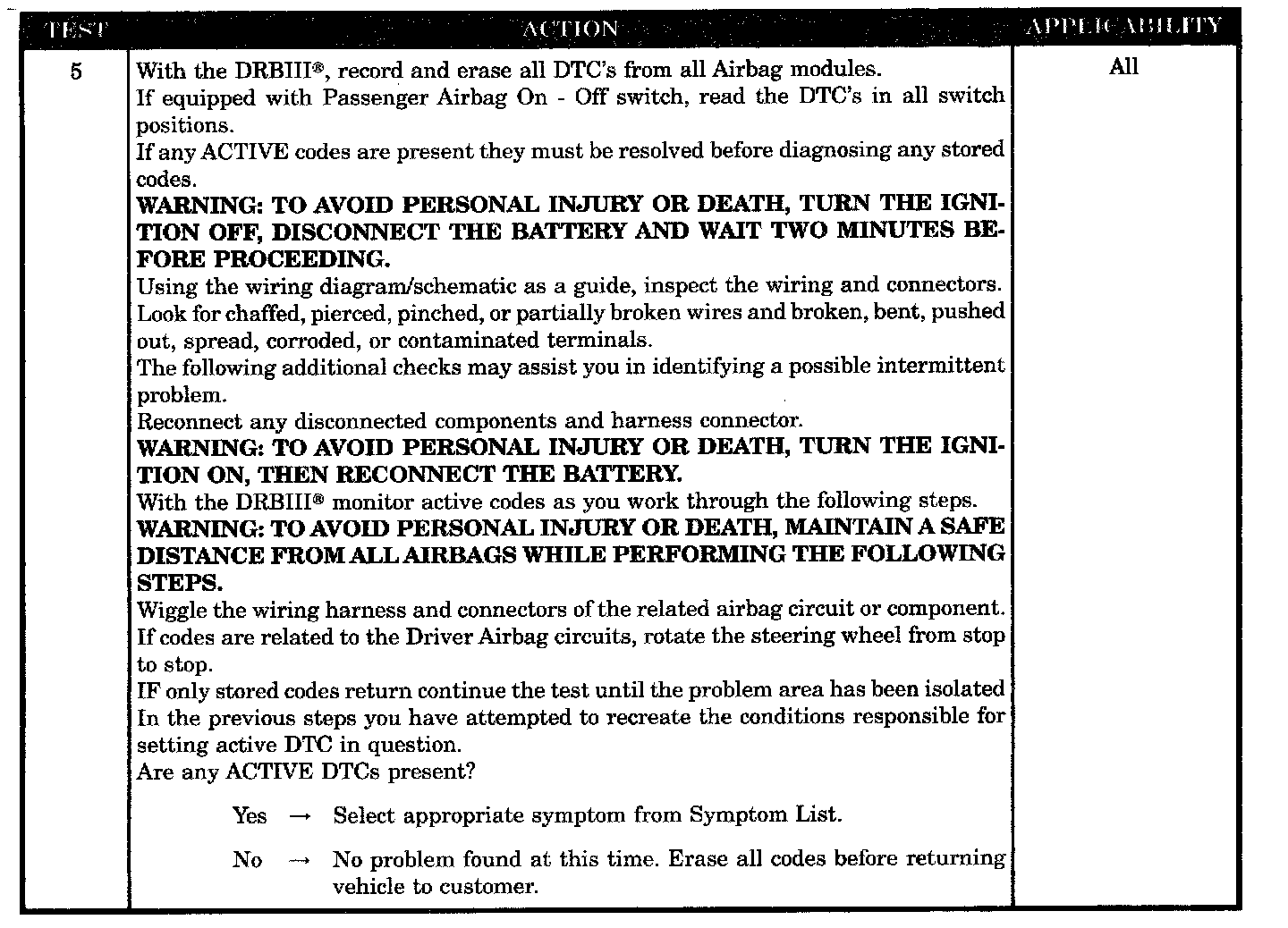

Test 5:

SYMPTOM:
PASSENGER SQUIB 2 CIRCUIT OPEN

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Squib 2 circuits.

SET CONDITION
When the ACM detects an open circuit or high resistance on the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag squib 2 circuit open
- Passenger squib 2 line 1 or line 2 circuit open
- ACM, passenger squib 2 circuit open
- Stored code or intermittent condition
- Active code present
