Passenger Curtain Squib Circuit Open

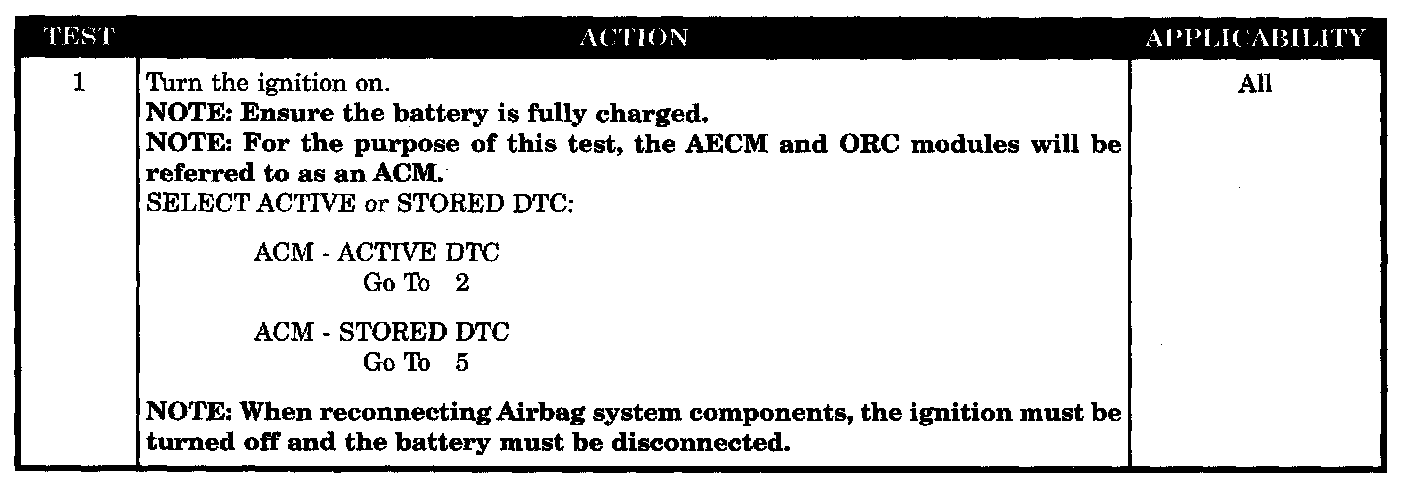

Test 1:

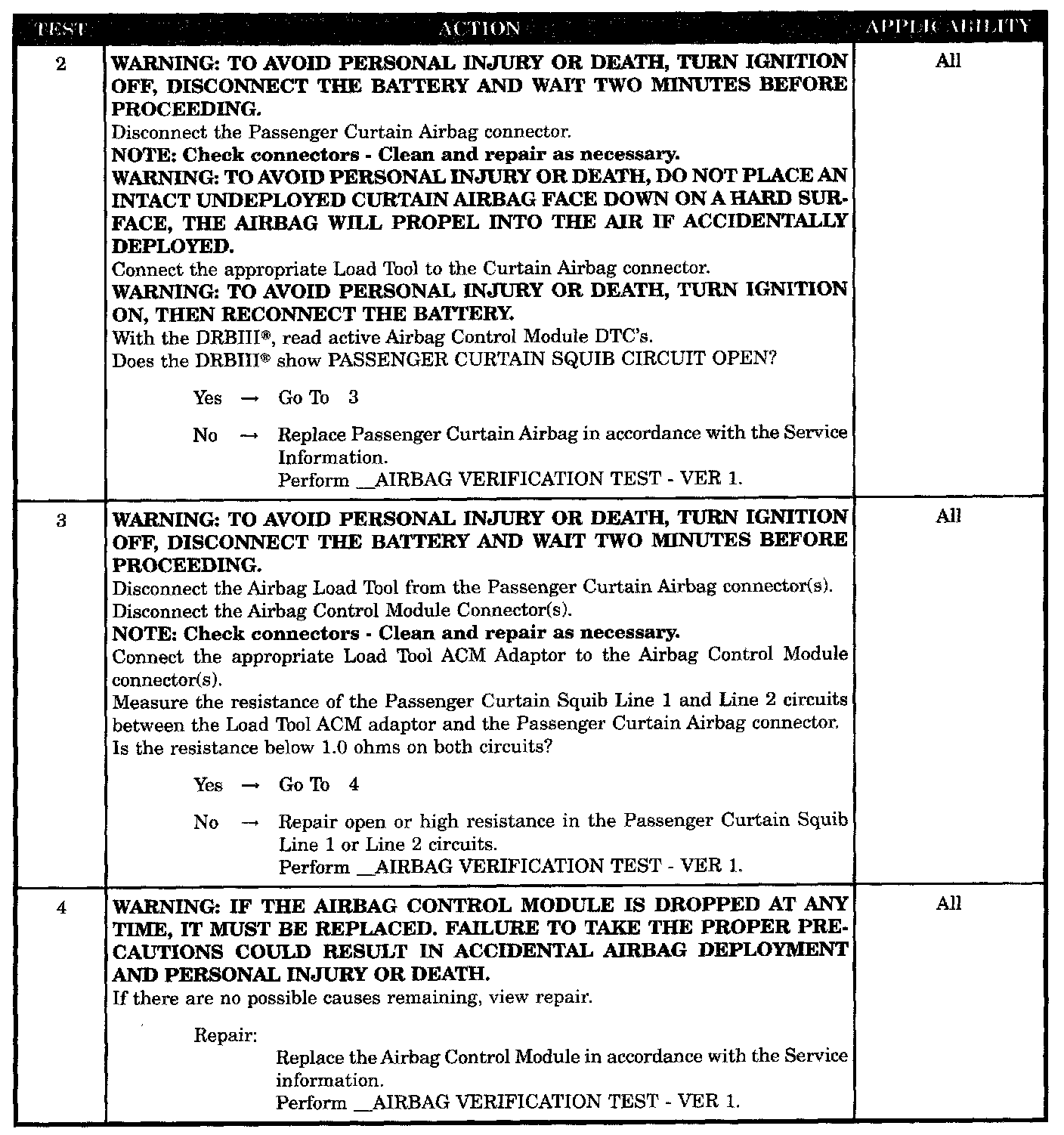

Test 2 - 4:

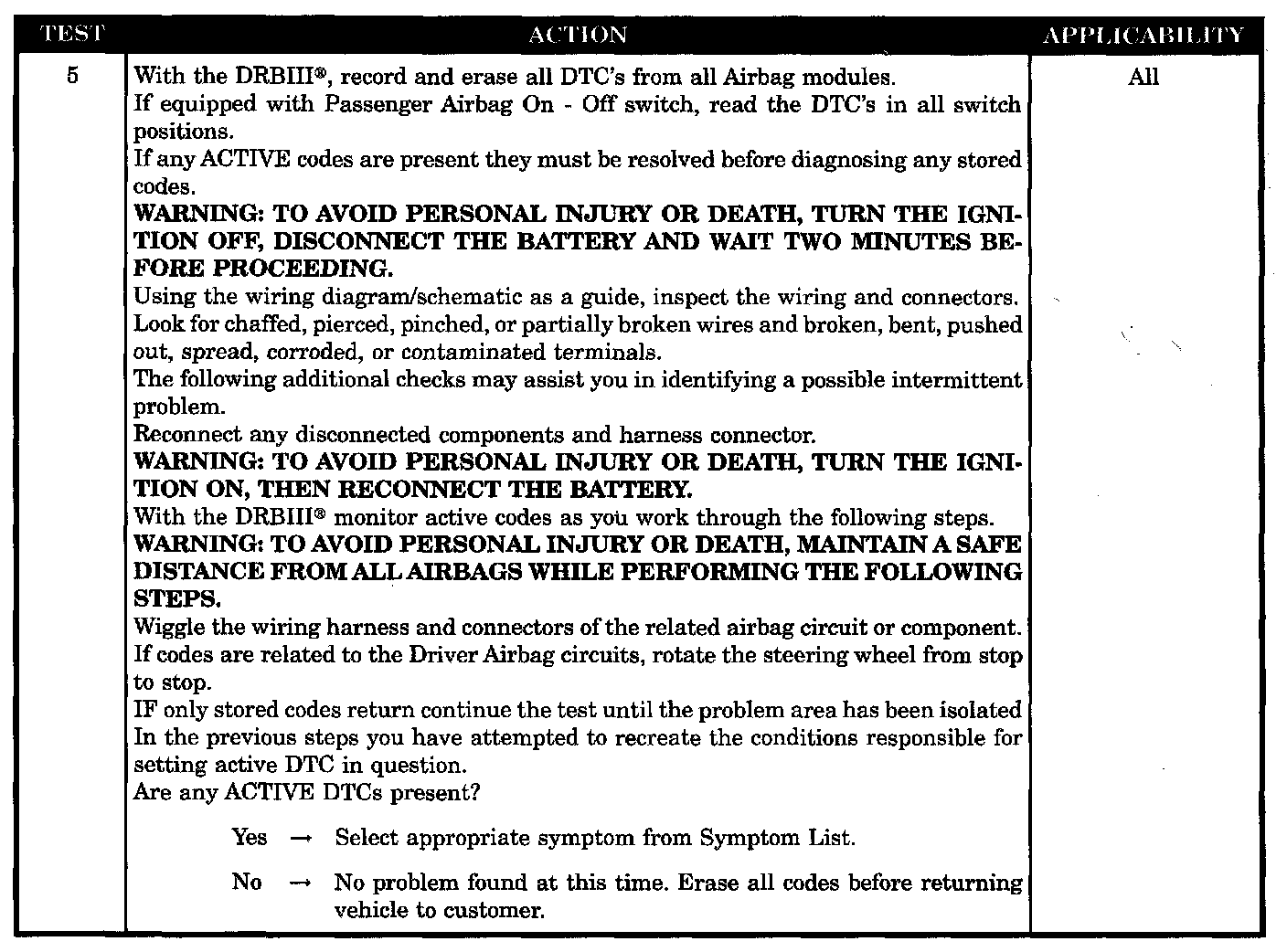

Test 5:

SYMPTOM
PASSENGER CURTAIN SQUIB CIRCUIT OPEN

WHEN MONITORED
With the ignition on, the ACM monitors the resistance of the Passenger Curtain Squib circuits.

SET CONDITION
When the ACM detects an open circuit or high resistance on the Curtain Squib circuits.

POSSIBLE CAUSES
- Passenger curtain airbag circuit open
- Passenger curtain squib line 1 or line 2 circuit open
- ACM, passenger curtain squib circuit open
- Stored code or intermittent condition
- Active code present
