Driver Curtain Squib Shorted to Battery

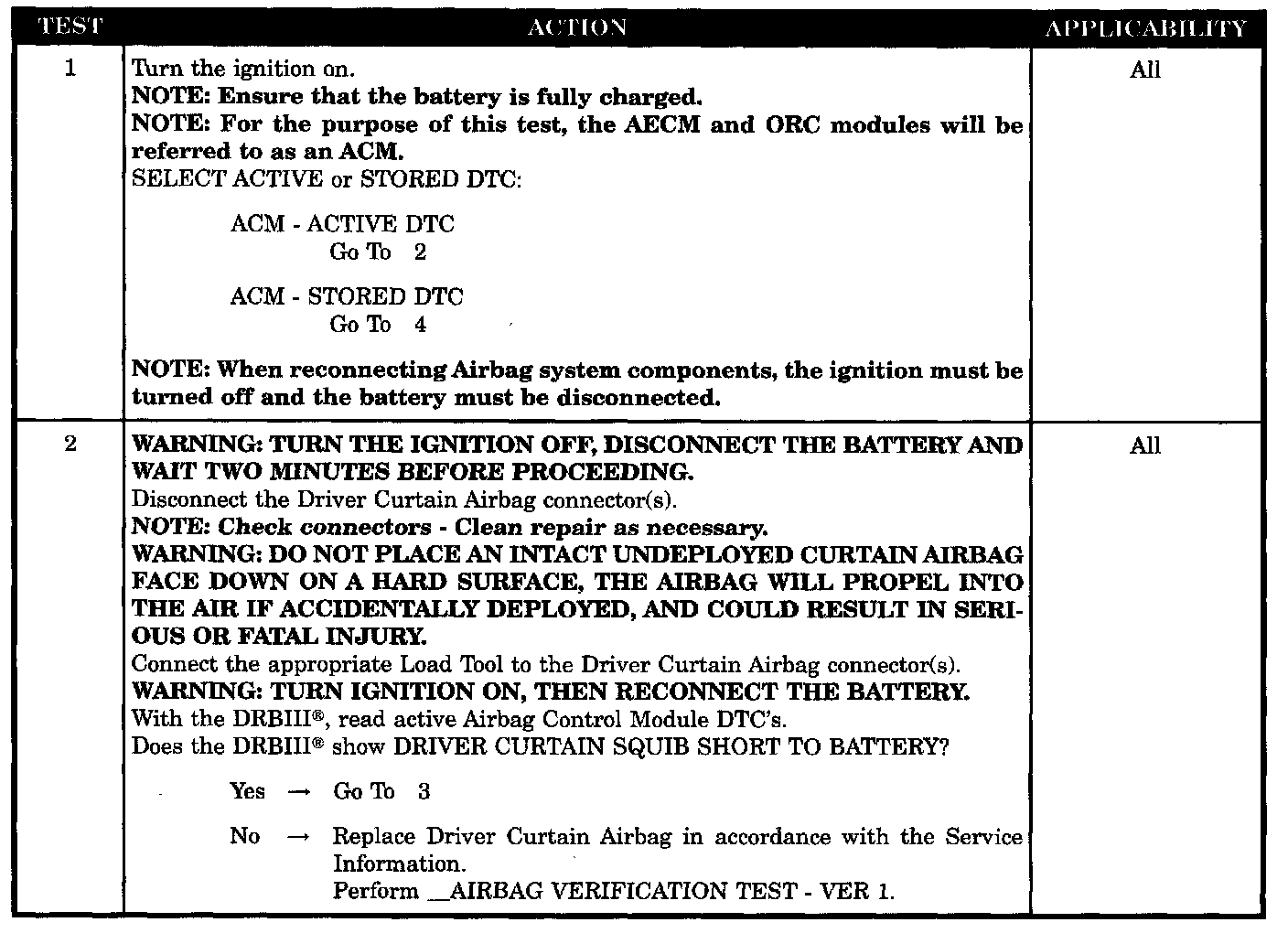

Test 1 - 2:

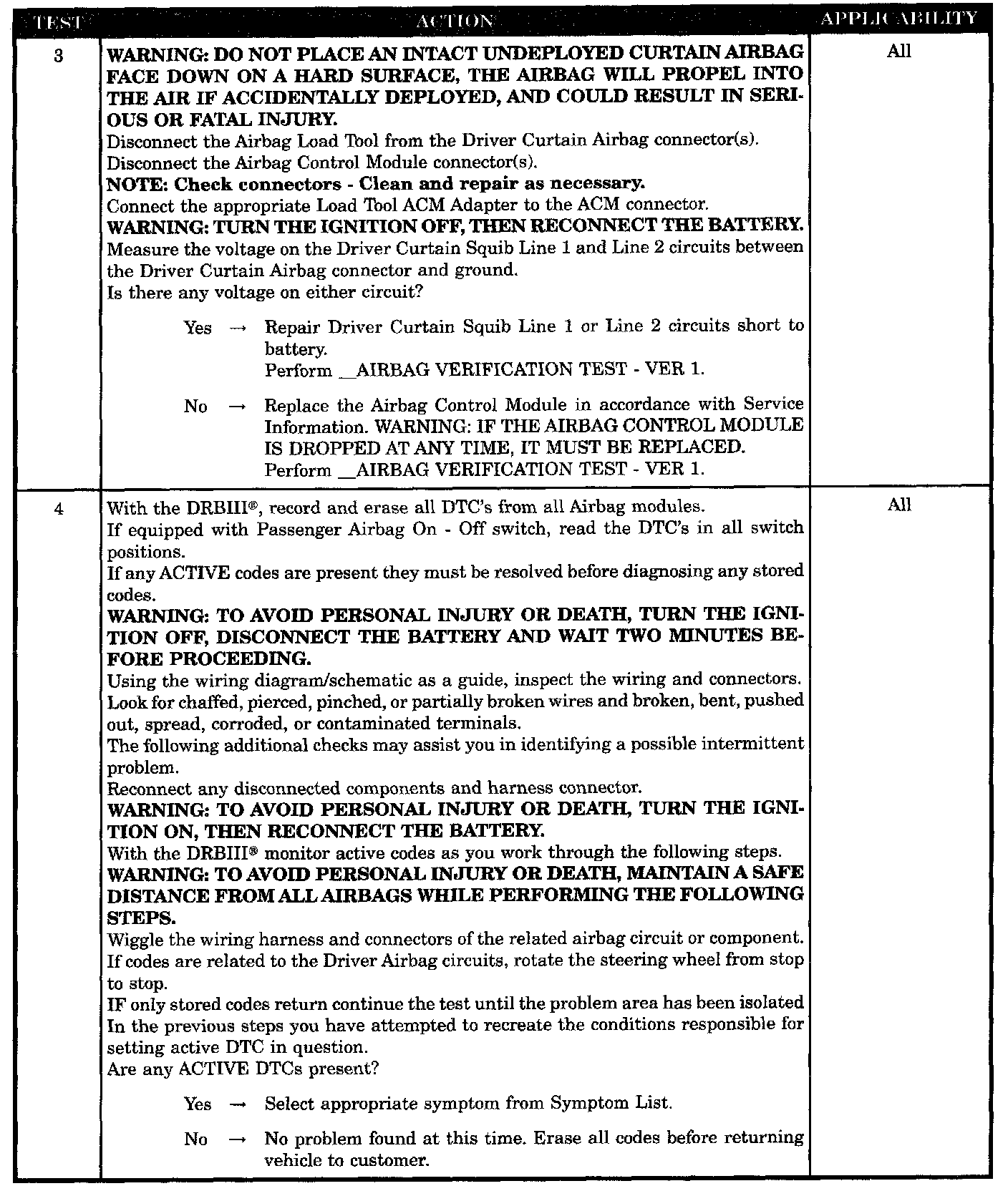

Test 3 - 4:

SYMPTOM
DRIVER CURTAIN SQUIB SHORT TO BATTERY

WHEN MONITORED
With the ignition on, the ACM monitors the voltage of the Driver Curtain Squib circuits.

SET CONDITION
When the ACM detects voltage on the Curtain Squib circuits.

POSSIBLE CAUSES
- Driver curtain squib short to battery
- Driver curtain squib line 1 or line 2 short to battery
- ACM, driver curtain squib short to battery
- Stored code or intermittent condition
- Active code present
