Airbag Warning Indicator Driver

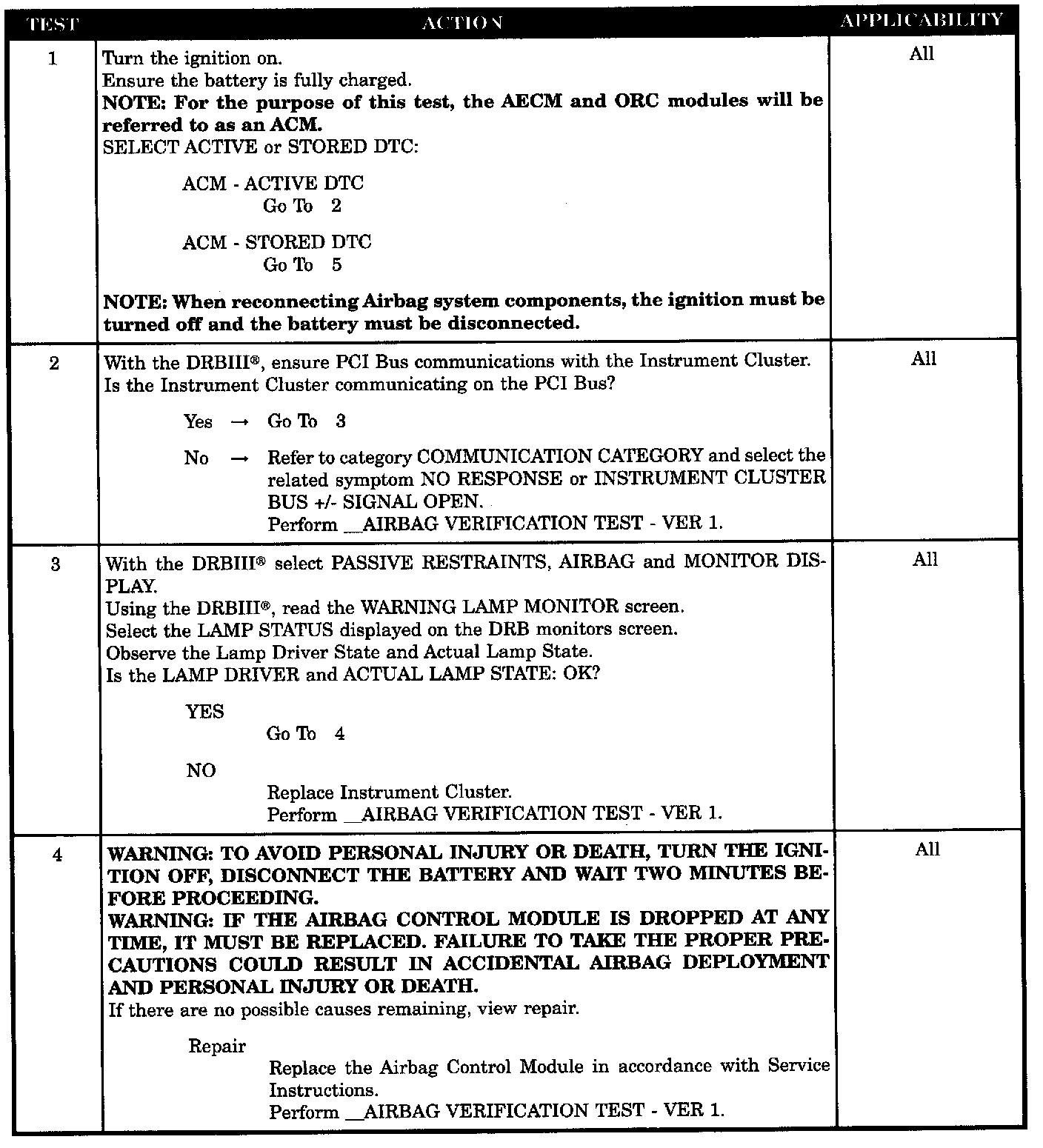

Test 1 - 4:

Test 5:

SYMPTOM
AIRBAG WARNING INDICATOR DRIVER

WHEN MONITORED
With ignition on the ACM monitors the PCI Bus for a message from the MIC containing the airbag warning indicator status. The ACM request the warning lamp status from the MIC once every second.

SET CONDITION
This DTC will set if the ACM receives a bus message indicating that the airbag lamp driver has failed.

POSSIBLE CAUSES
- MIC, communication failure
- Warning indicator
- ACM, warning indicator
- Stored code or intermittent condition
- Active code present
