Head Status Rx Failure - ATC

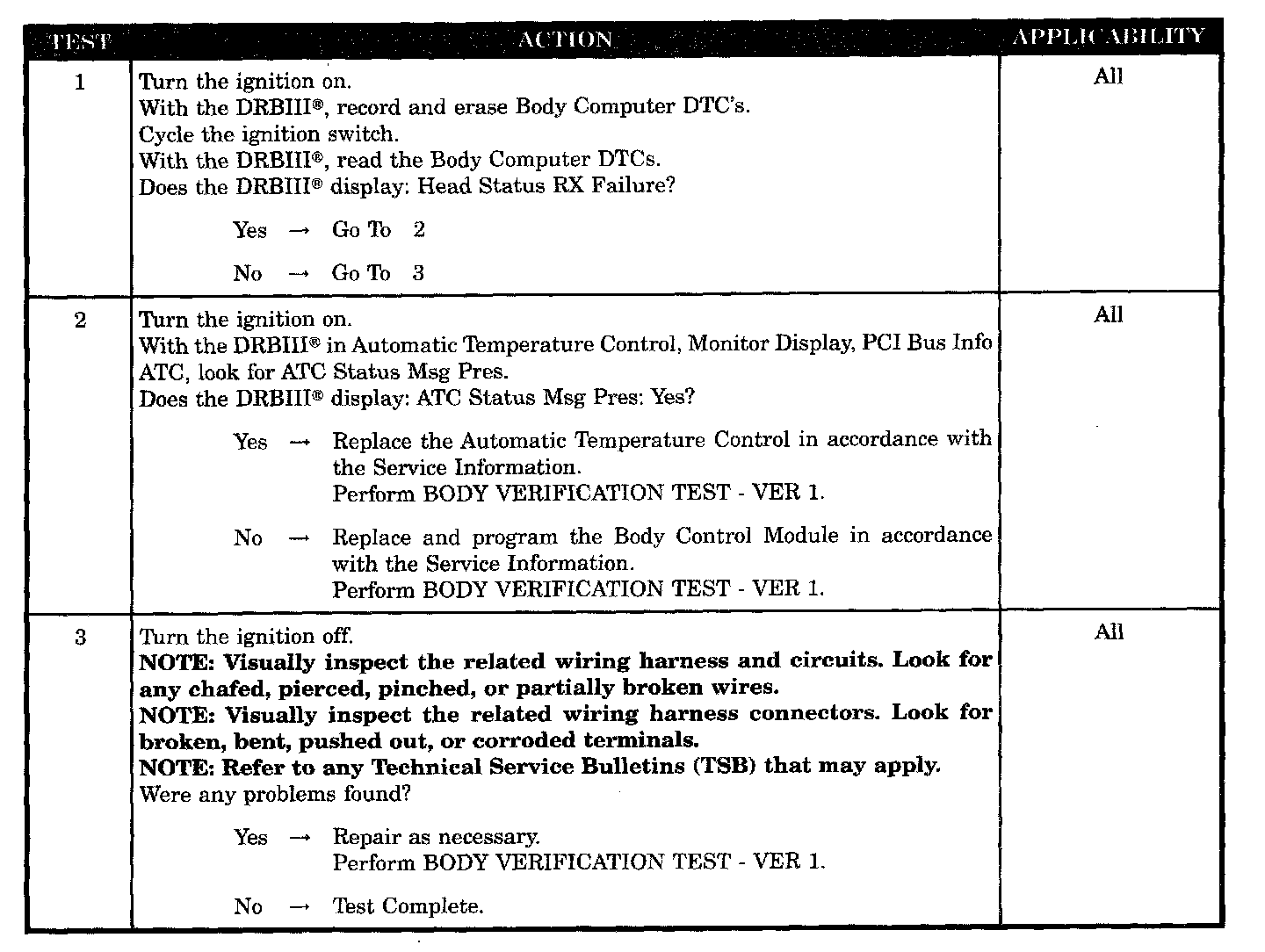

Test 1 - 3:

SYMPTOM
HEAD STATUS RX FAILURE - ATC

WHEN MONITORED
With the ignition on.

SET CONDITION
This DTC will set if the Automatic Temperature Control does not receive the message from the Body Control Module for more than 2 seconds. This message operates the VF Segments and LEDs in the ATC display panel,

POSSIBLE CAUSES
- Automatic temperature control
- Body control module
- Wiring causing intermittent condition
