Home >> Chrysler >> 2005 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Compass/Mini-Trip Computer >> Compass Failure

Compass Failure

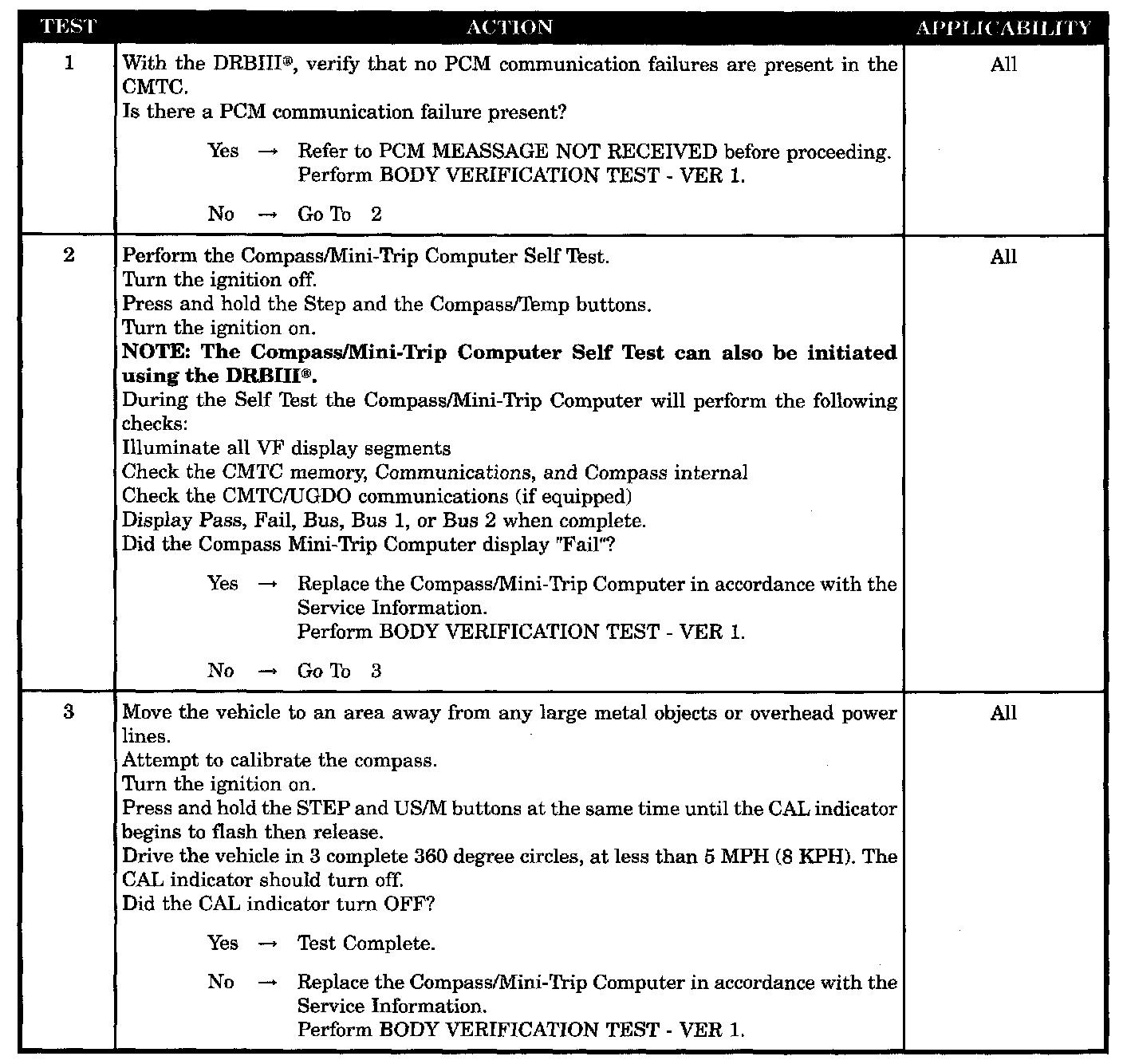

Test 1 - 3:

SYMPTOM
COMPASS FAILURE

POSSIBLE CAUSES
- PCM message not received
- Compass/Mini-trip computer
