MIC Messages Not Received

Symptom:
MIC MESSAGES NOT RECEIVED

When Monitored:
Ignition On - Continuously

Set Condition:
When the ABM detects the MIC is not connected or not functioning correctly for 10 seconds.

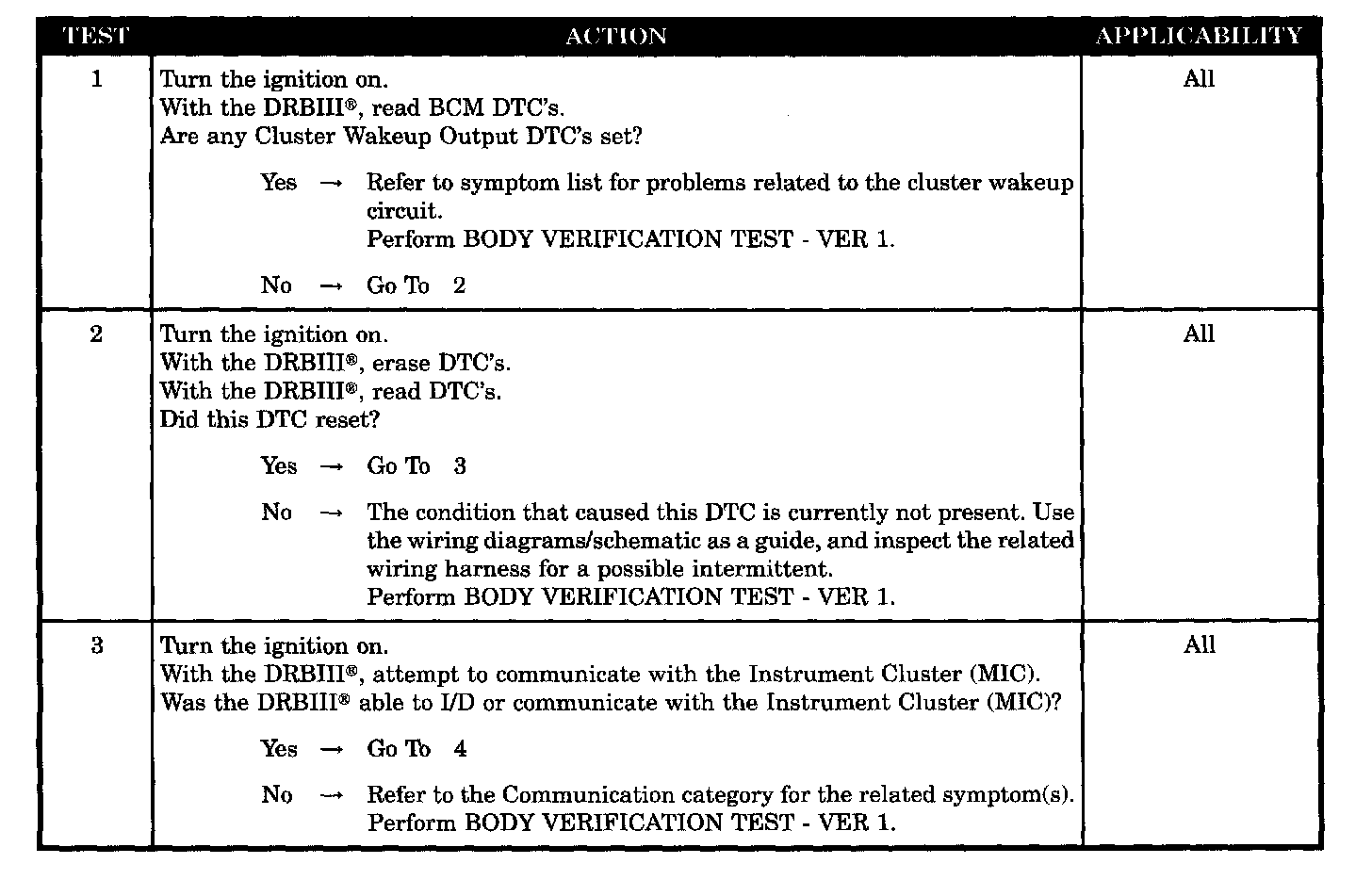

Test 1-3:

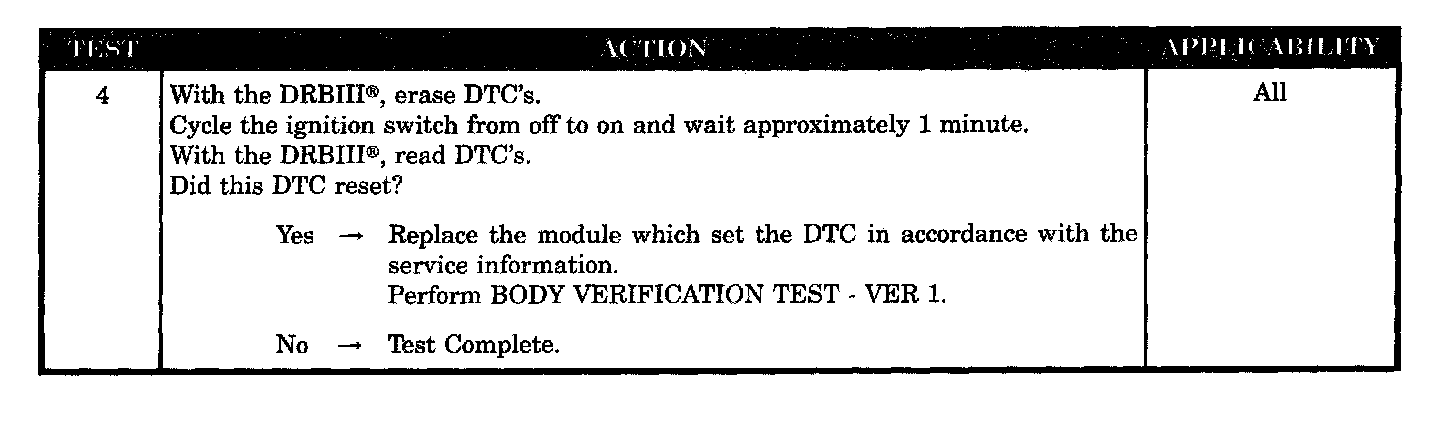

Test 4:

POSSIBLE CAUSES
- CHECK FOR DTCS
- VERIFY DTC
- ATTEMPT TO COMMUNICATE WITH THE MIC
- MODULE
