Instrument Cluster Bulb

Symptom:
INSTRUMENT CLUSTER BULB

When Monitored:
Ignition On - Continuously

Set Condition:
When the mechanical instrument cluster informs the ABM that the ABS, Brake, and TCS (if equipped) indicators failed and can't be illuminated.

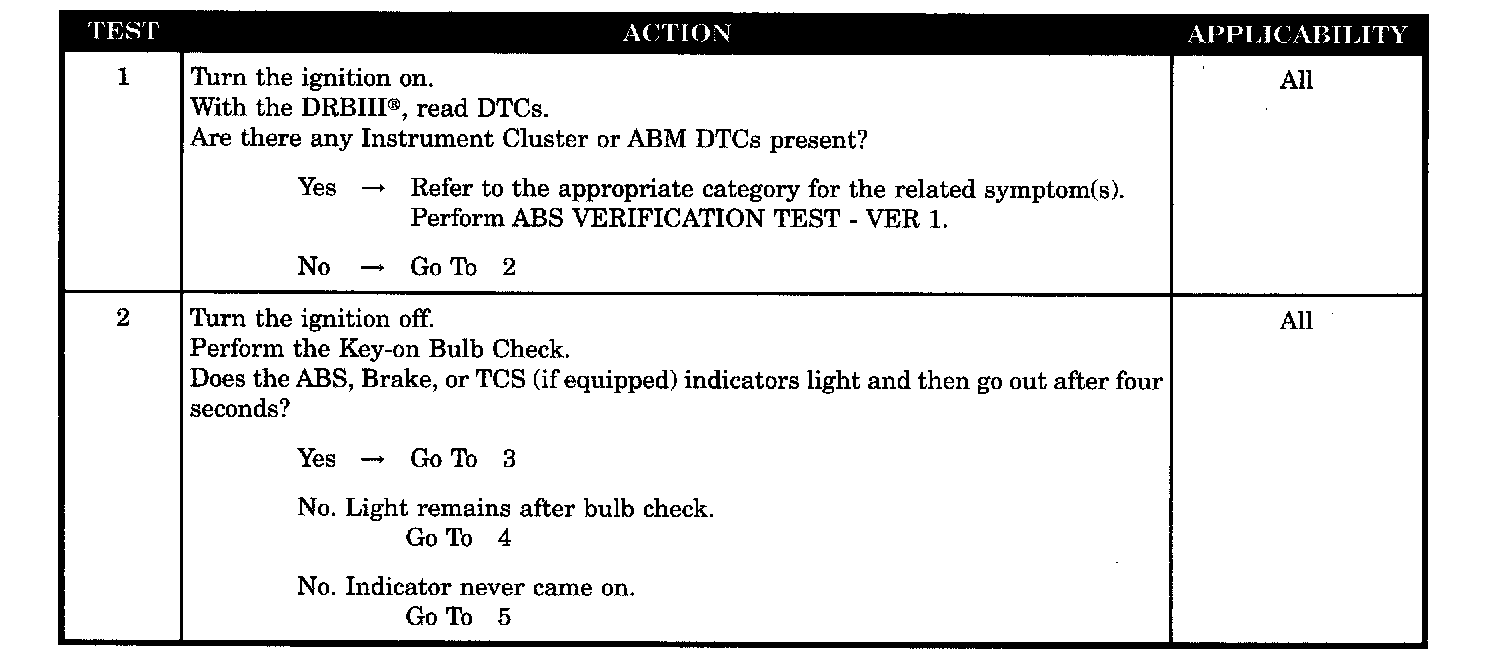

Test 1-2:

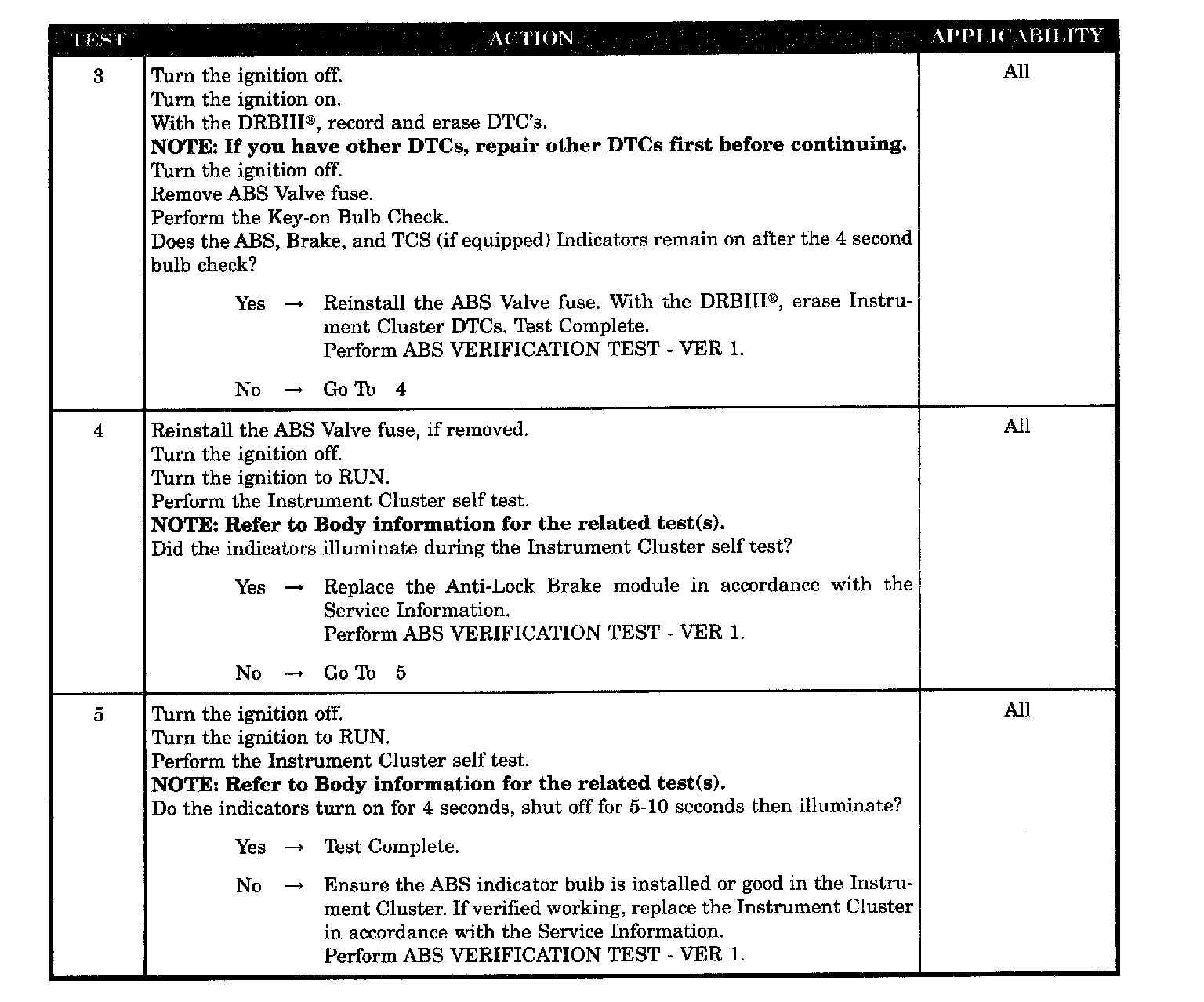

Test 3-5:

POSSIBLE CAUSES
- INSTRUMENT CLUSTER OR ABM DTC PRESENT
- CHECKING INSTRUMENT CLUSTER OPERATION
- INSTRUMENT CLUSTER SELF-TEST
- INSTRUMENT CLUSTER INTERNAL FAULT
- ABM - INTERNAL FAULT
