Shift Selector Shaft Bushing

SHIFT SELECTOR SHAFT BUSHING

REMOVAL
1. Remove selector shaft.
2. Thread tool #6786 into bushing.

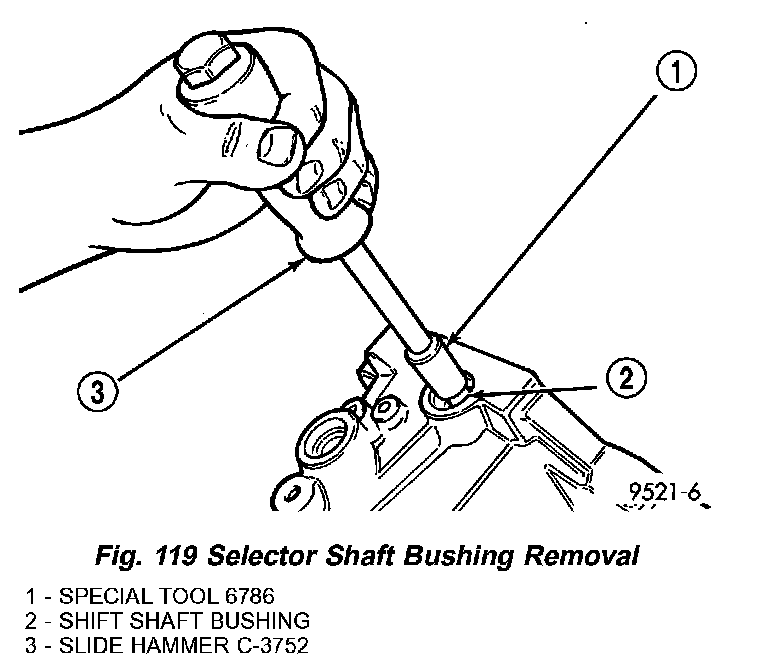

3. Install slide hammer #3752 onto tool and remove bushing using slide hammer (Fig. 119).

INSTALLATION
1. Position replacement bushing over selector shaft bore.

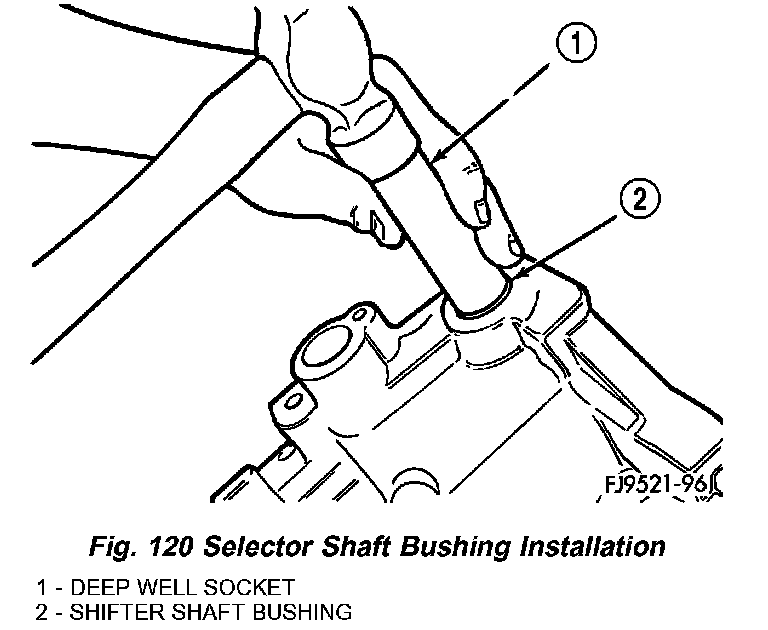

2. Using an appropriate size deep-well socket, install bushing in selector shaft bore (Fig. 120).
