Installation

41TE TRANSAXLE

VALVE BODY

INSTALLATION

NOTE: If valve body assembly is being replaced or reconditioned, it is necessary to perform the PCM Quick Learn Procedure.

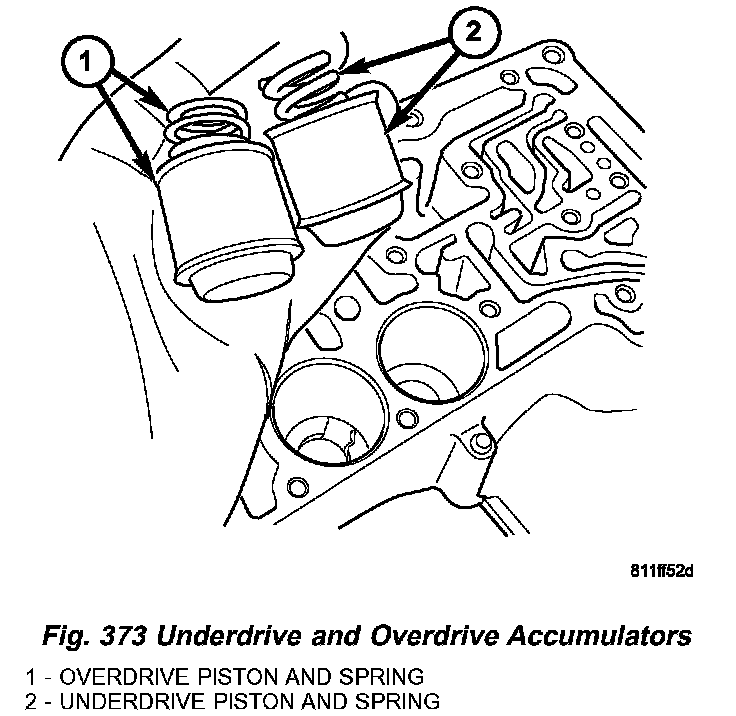

1. Install underdrive and overdrive accumulators (Fig. 373).

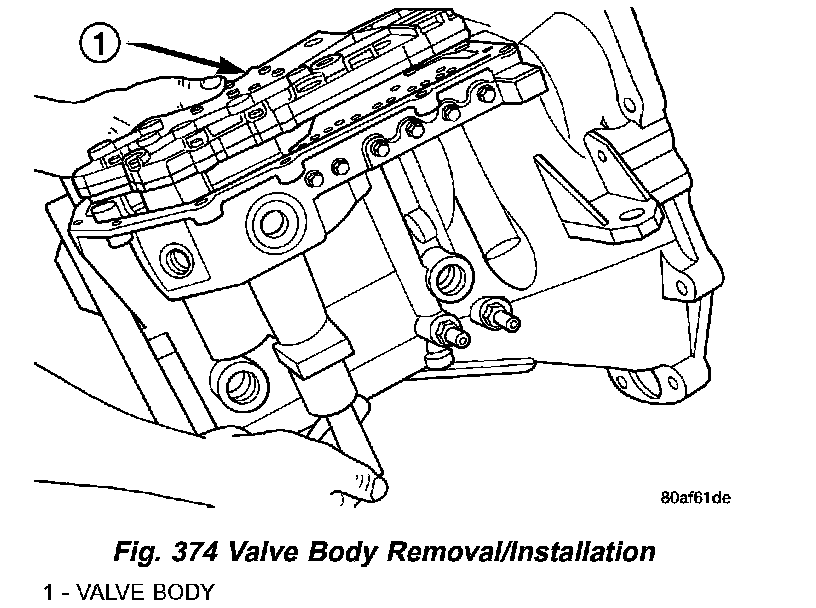

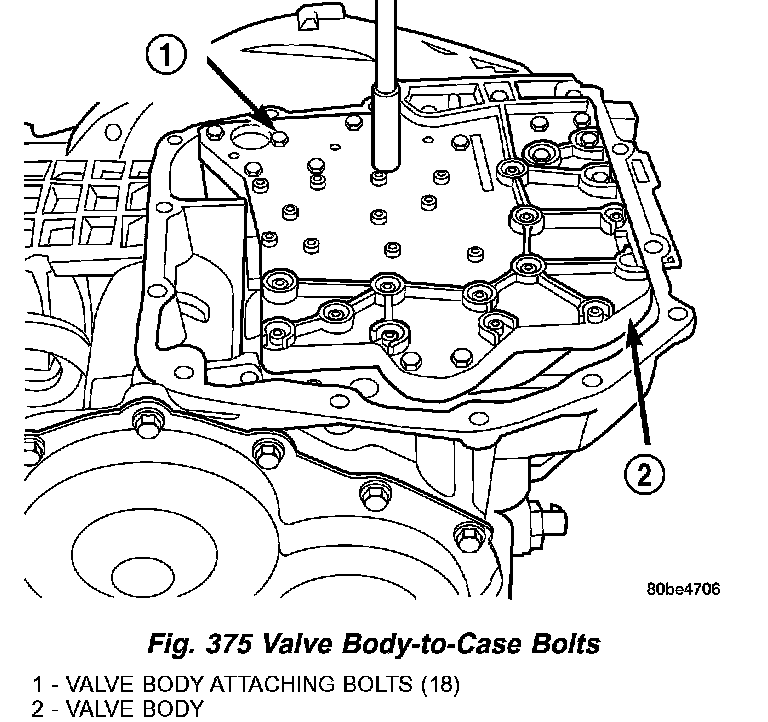

2. Install valve body assembly to transaxle (Fig. 374). Install and torque valve body-to-transaxle case bolts (Fig. 375) to 12 Nm (105 inch lbs.).

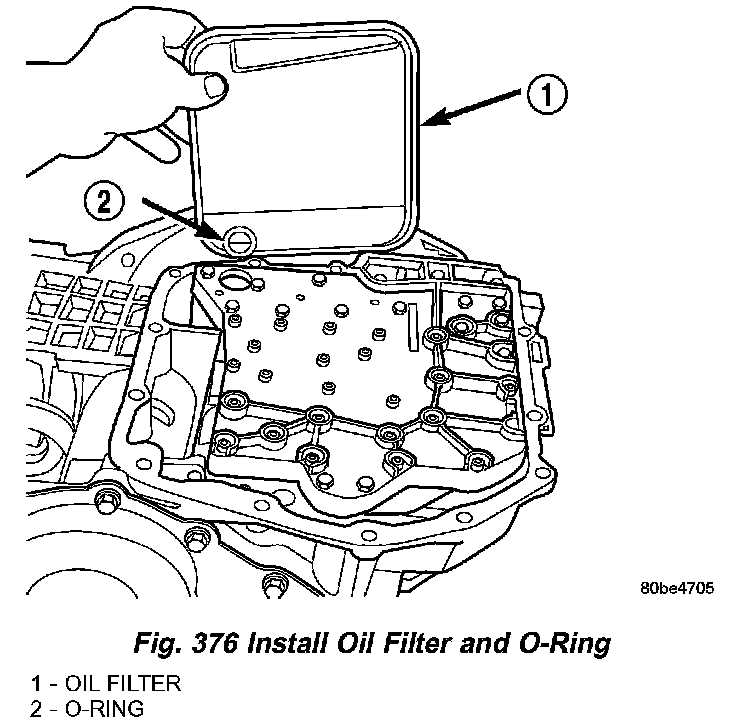

3. Install transaxle oil filter (Fig. 376). Inspect the O-ring and replace if necessary.

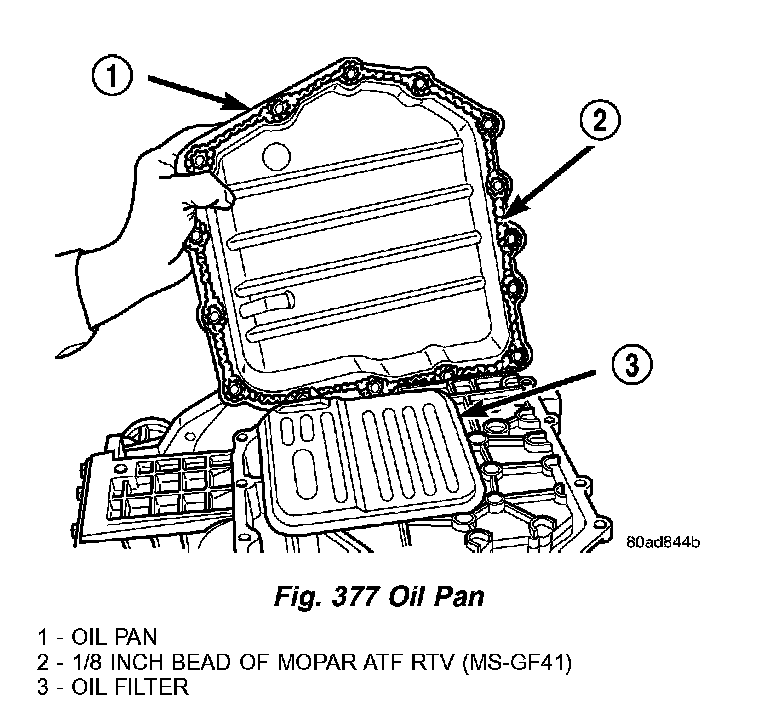

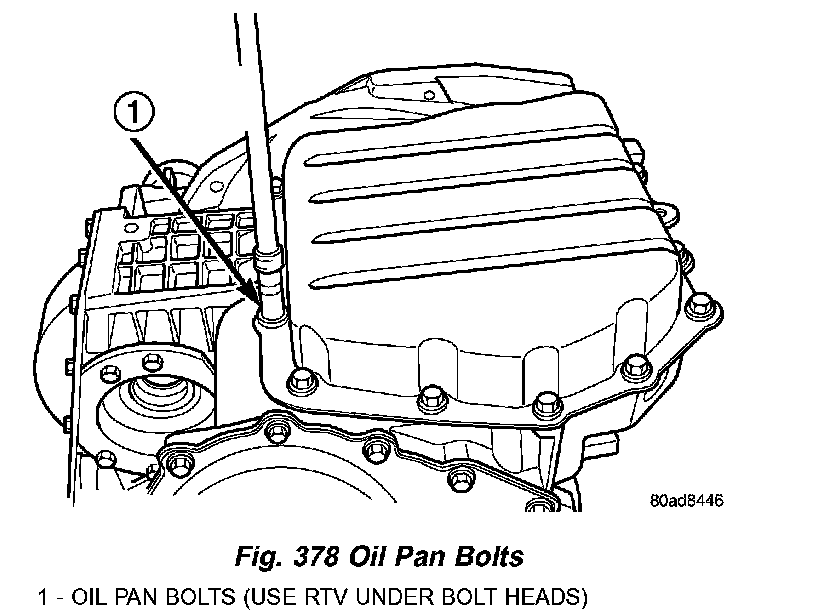

4. Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install an 1/8" bead of Mopar(R) ATF RTV (MS-GF41) to the oil pan and install (Fig. 377). Torque oil pan-to-transaxle case bolts (Fig. 378) to 19 Nm (165 inch lbs.).
5. Lower vehicle.
6. Connect transmission range sensor connector.
7. Install manual valve lever to manual shaft.
8. Install gearshift cable to manual valve lever.
9. Connect battery negative cable.
10. Fill transaxle with Mopar(R) ATF +4 Transmission fluid.
