Crankshaft Gear/Sprocket

CAUTION: The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Special Tool 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.

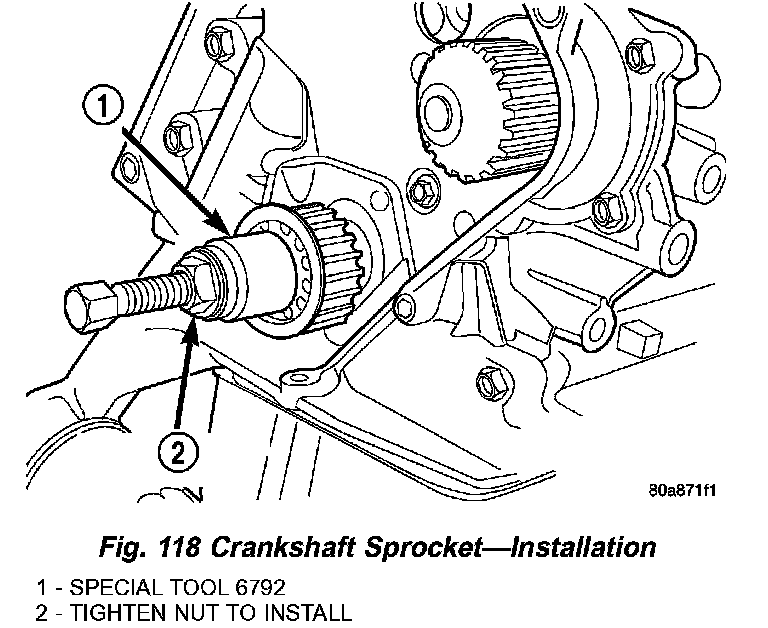

Install crankshaft sprocket using Special Tool 6792 (Fig. 118).
