No Response From PCM With A No Start Condition

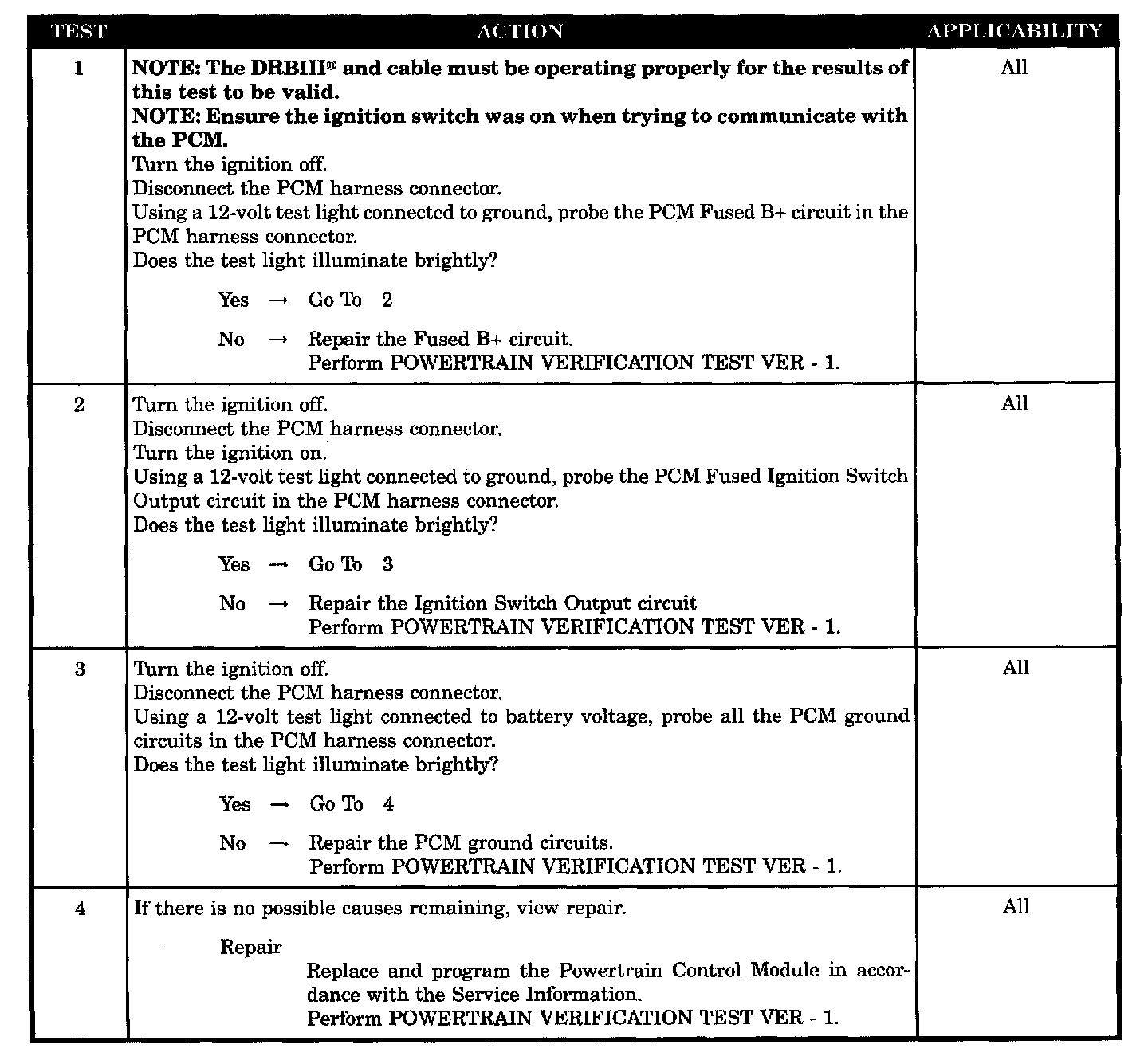

Test 1 - 4:






SYMPTOM
NO RESPONSE FROM PCM WITH A NO START CONDITION

POSSIBLE CAUSES
- PCM fused B+ circuit
- PCM fused ignition switch output circuit
- PCM ground circuits
- PCM
