Checking the PCM Power and Ground Circuits

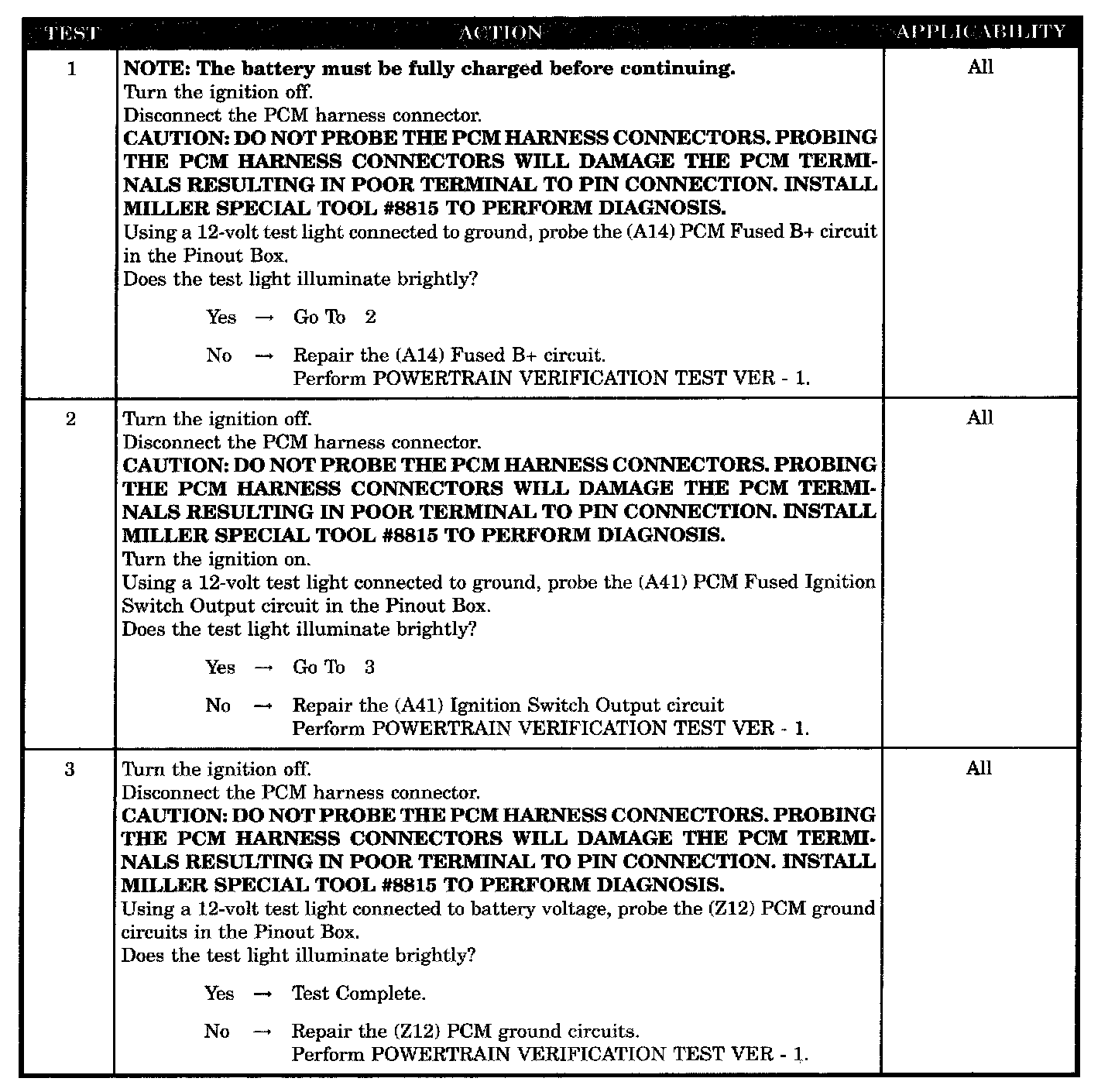

Test 1 - 3:






SYMPTOM
CHECKING PCM POWER AND GROUND CIRCUITS

POSSIBLE CAUSES
- (A14) PCM fused B+ circuit
- (A41) PCM fused ignition switch output circuit
- (Z12) PCM ground circuits
