Home >> Chrysler >> 2005 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Daytime Running Lamp Control Unit >> Locations >> Component Locations

Component Locations

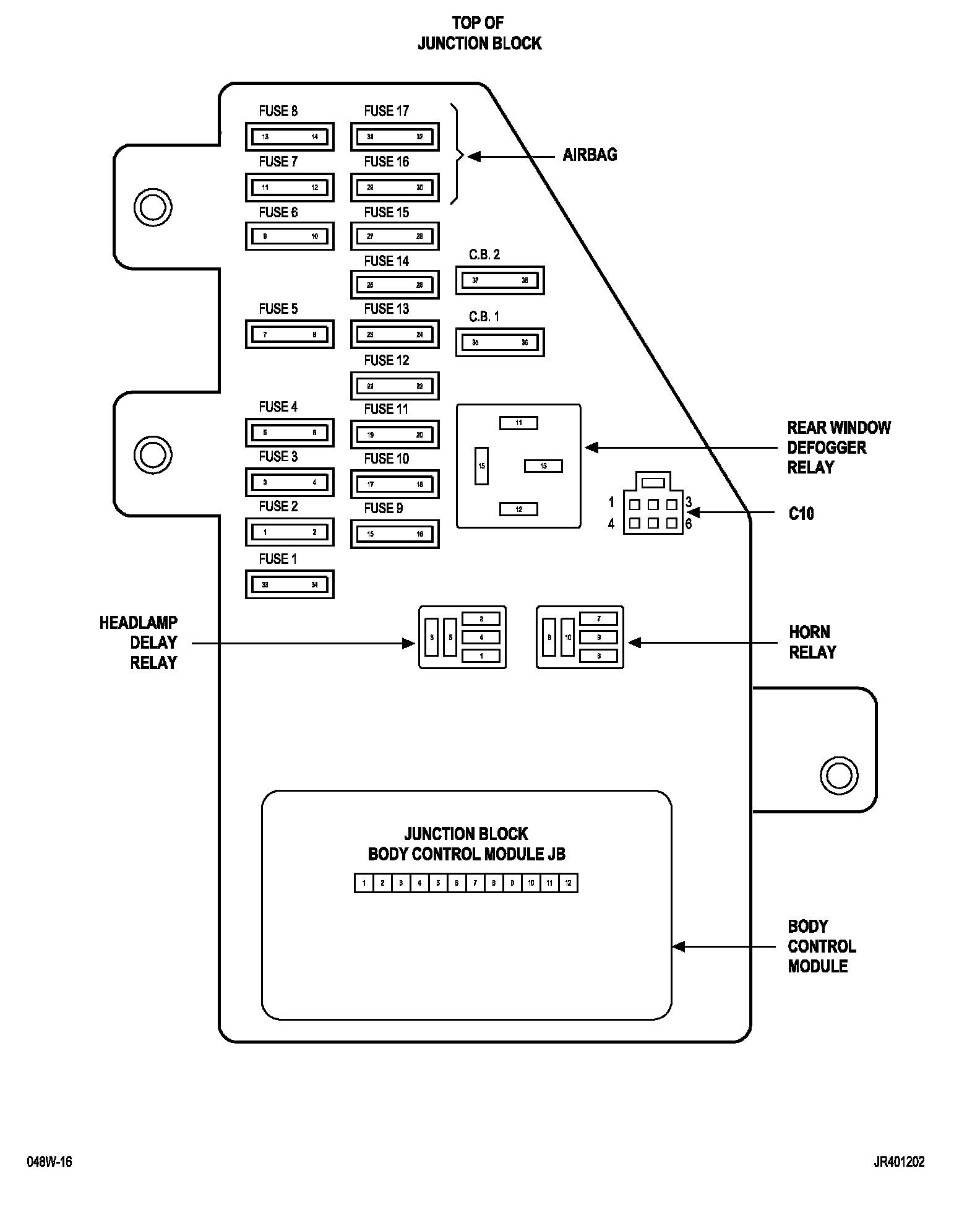

8w-12-2 (Top Of Junction Block):

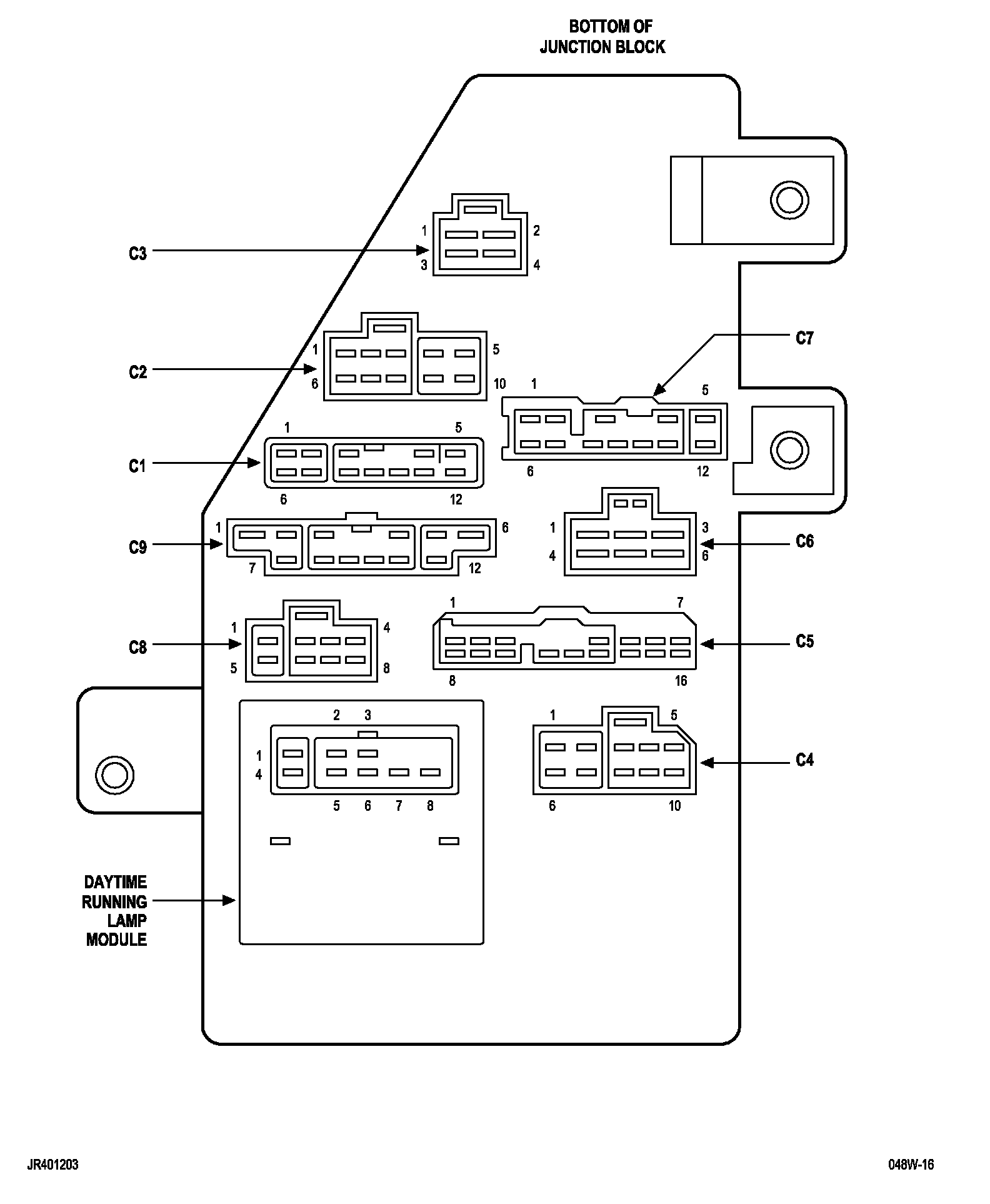

8w-12-3 (Bottom Of Junction Block):

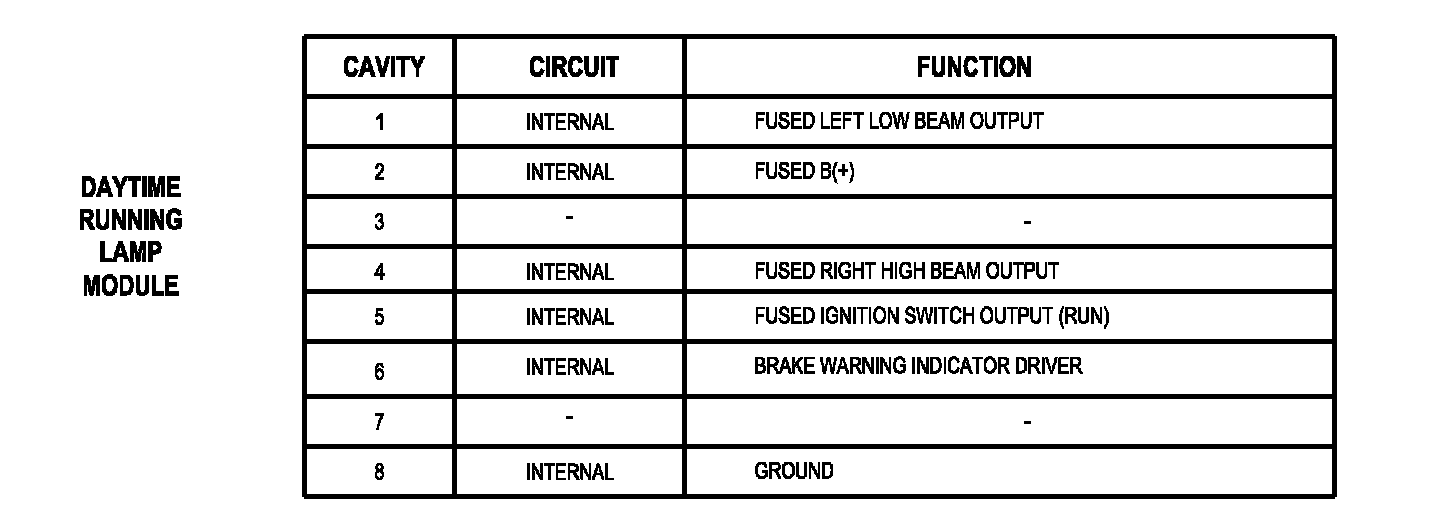

Daytime Running Lamp Module:
