Timing Components: Specifications

Timing Belt Tensioner Lock Bolt 25 Nm (220 inch lbs.)
Timing Belt Tensioner Assembly-Bolts 61 Nm (45 ft. lbs.)
Timing Belt Idler Pulley 61 Nm (45 ft. lbs.)

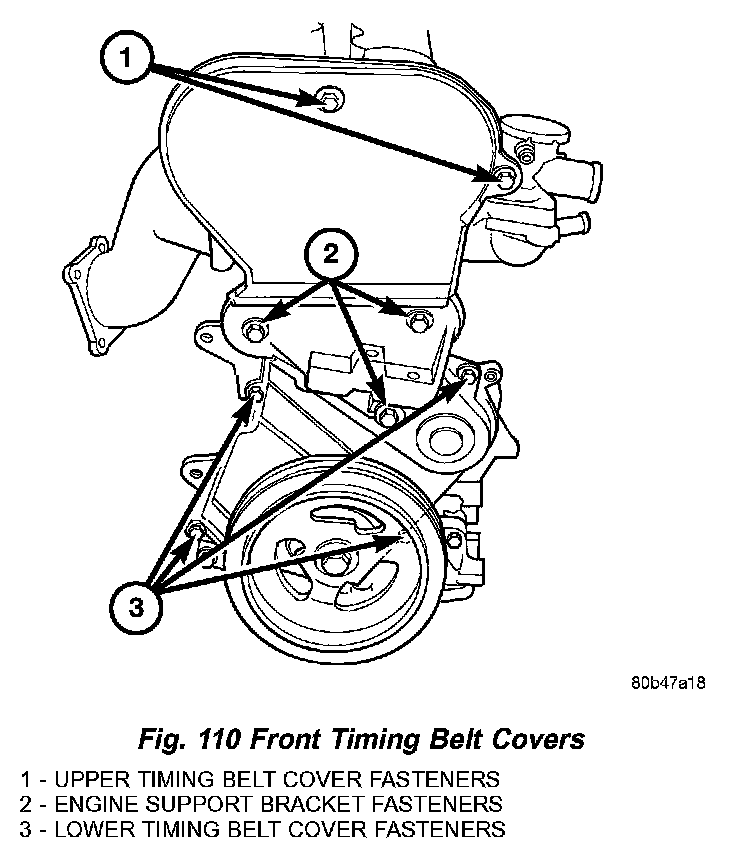

Timing Belt Covers
Front Covers to Rear Cover-Screws 6 Nm (50 inch lbs.)

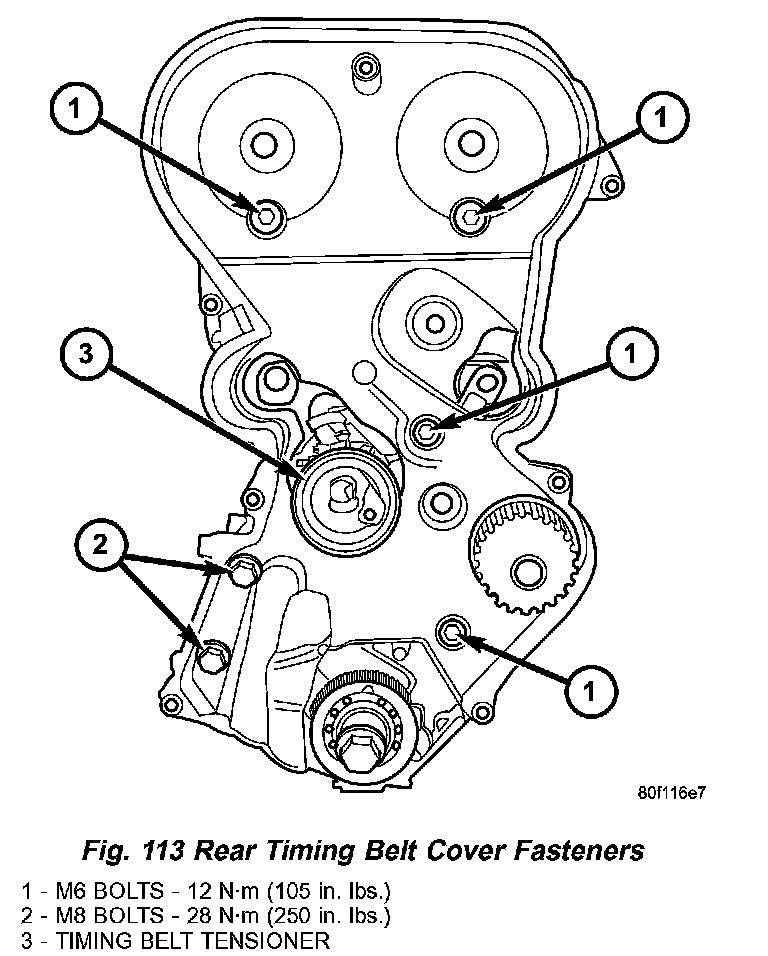

Rear Cover
M6 Bolts 12 Nm (105 inch lbs.)
M8 Bolts 28 Nm (250 inch lbs.)

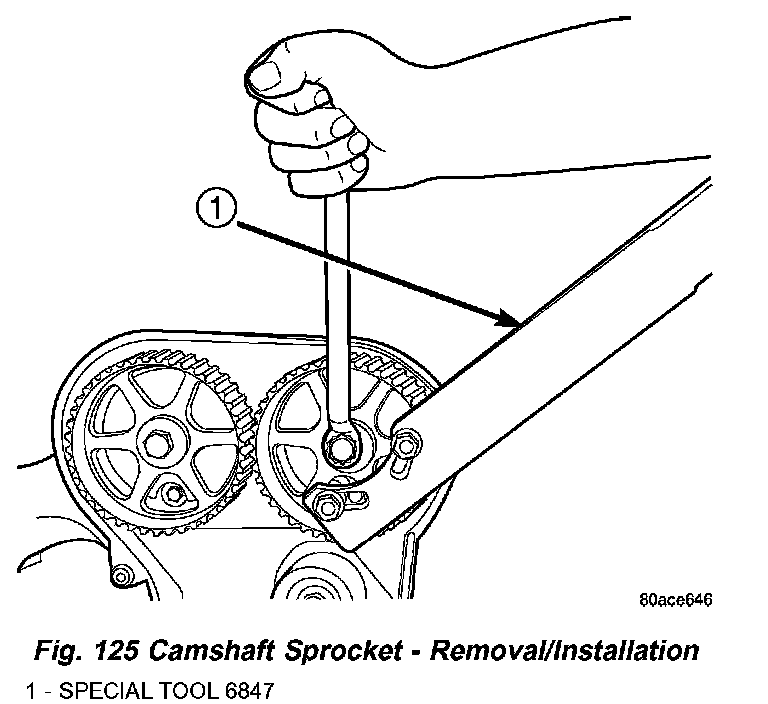

Install camshaft sprockets. Use Special Tool 6847 to hold sprockets (Fig. 125)
torque bolts to 115 Nm (85 ft. lbs.).
