Harmonic Balancer - Crankshaft Pulley: Service and Repair

VIBRATION DAMPER
REMOVAL
1. Disconnect negative battery cable.
2. Support engine under oil pan with wooden block and floor jack.
3. Remove three right side engine mount vertical bolts to front engine bracket.
4. Raise vehicle on hoist.
5. Remove right front wheel and belt splash shield.





6. Support engine under oil pan with a wooden block and screw jack (Fig. 73).
7. Remove front and rear engine mount through bolts.
8. Slowly lower engine down with screw jack.
9. Remove accessory drive belts.
10. Remove crankshaft damper bolt.

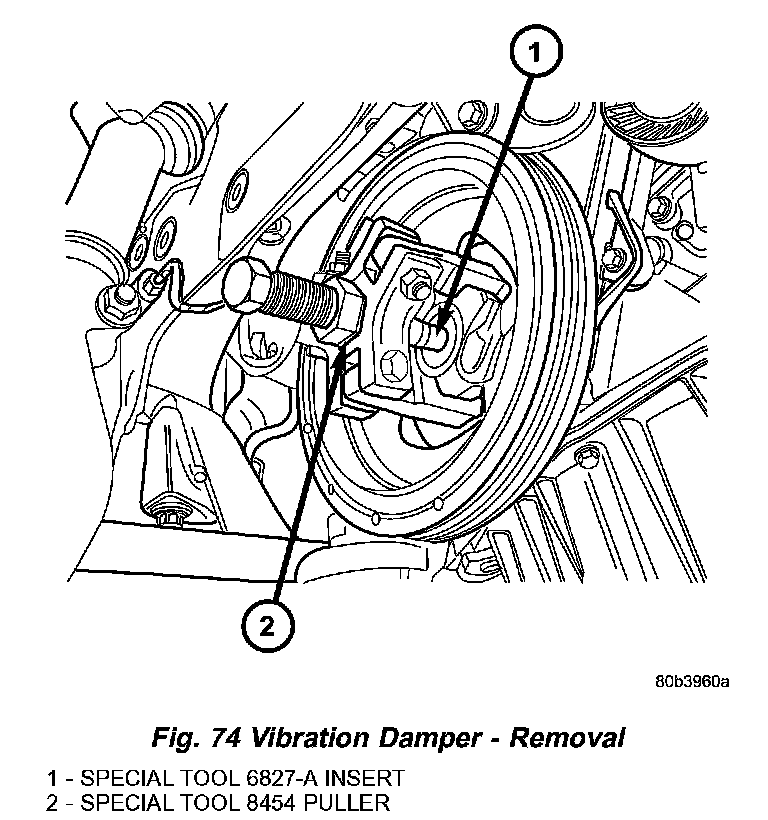

11. Remove damper using Special Tool 8454 Puller and Insert 6827-A (Fig. 74).

INSTALLATION

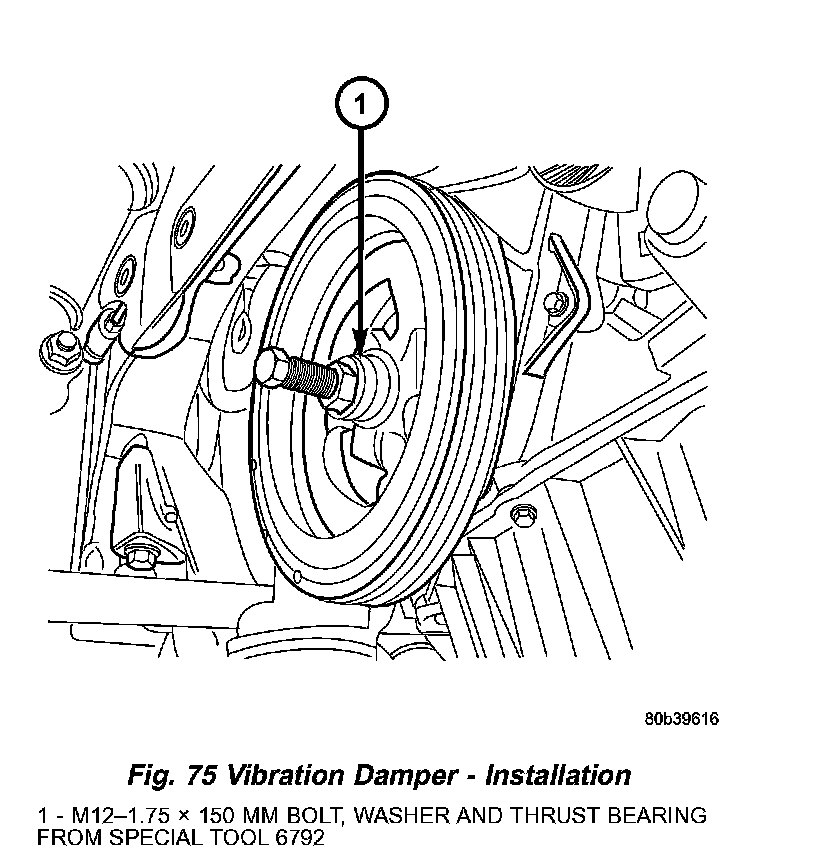

1. Install crankshaft vibration damper using M12 1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792 (Fig. 75).
2. Install crankshaft vibration damper bolt and tighten to 136 Nm (100 ft. lbs.).
3. Install accessory drive belts.
4. Raise engine with screw jack enough to install front and rear engine mount through bolts. Torque fasteners to 61 Nm (45 ft. lbs.).
5. Install belt splash shield and right front wheel.
6. Lower vehicle.
7. Support engine under oil pan with wooden block and floor jack.
8. Slowly raise engine with floor jack until engine mount bracket aligns with right side engine mount. Install three vertical bolts to front engine bracket. Torque fasteners to 61 Nm (45 ft. lbs.).
9. Remove floor jack.
10. Connect negative battery cable.
