Home >> Chrysler >> 2005 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom

Diagnosis By Symptom

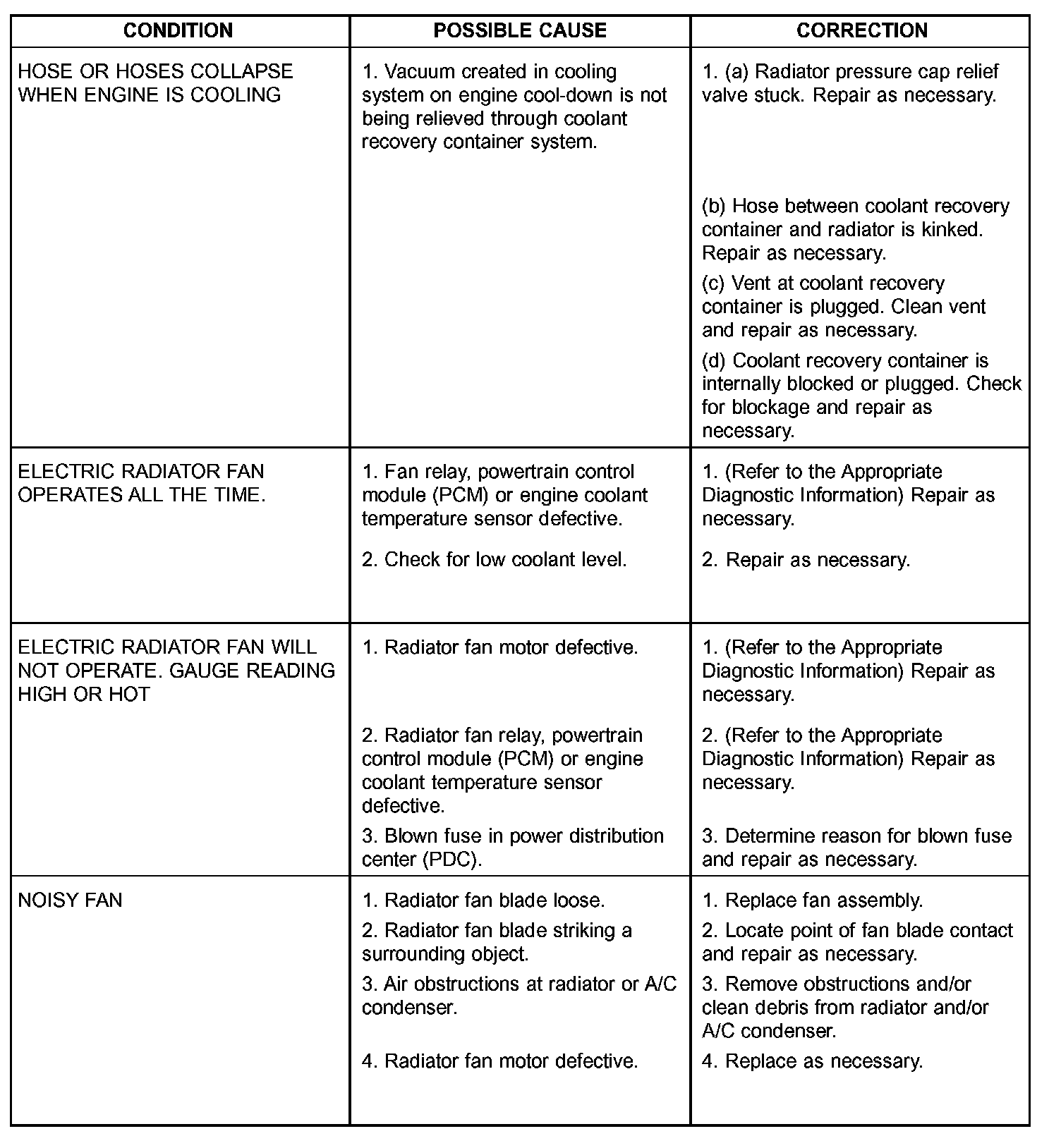

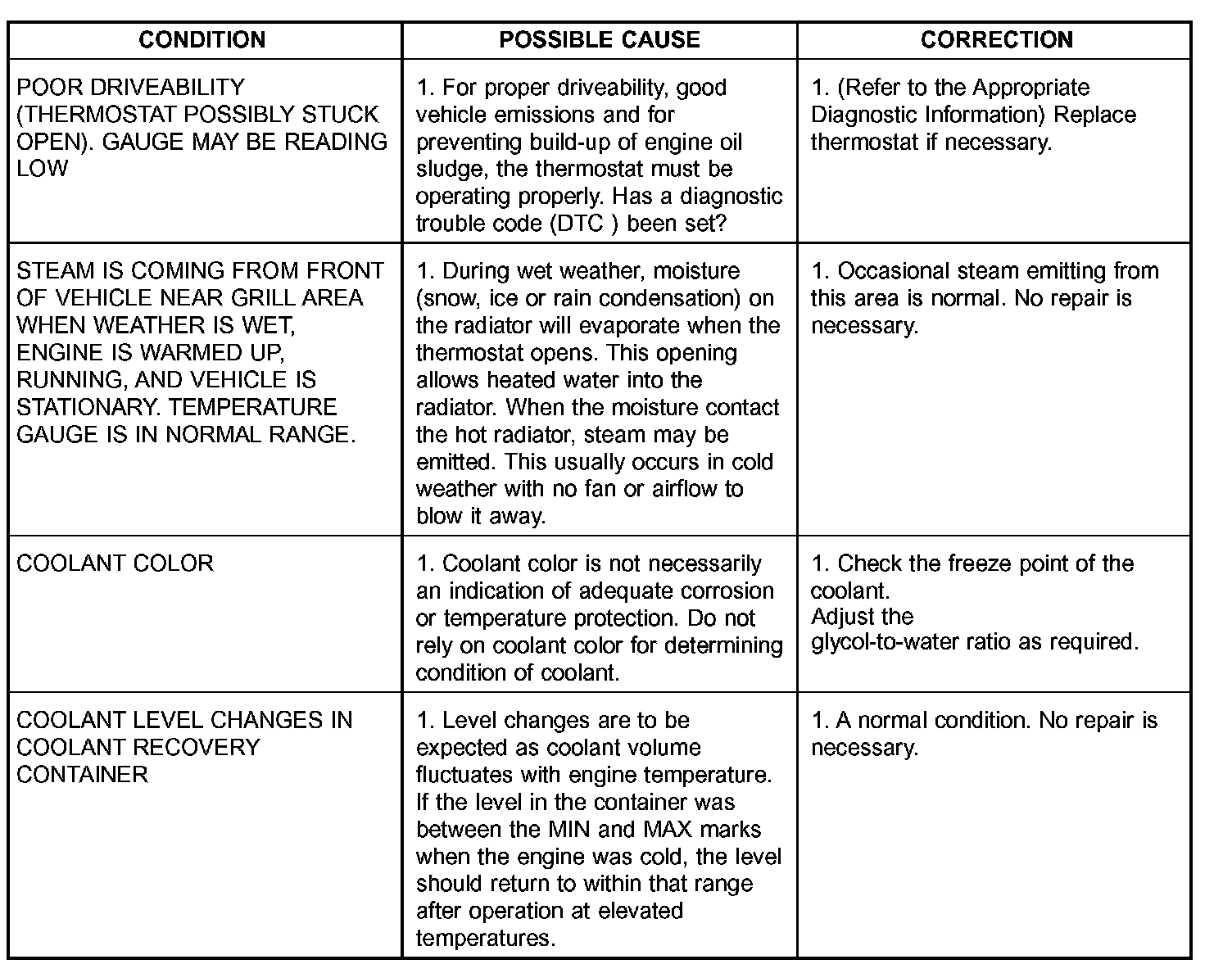

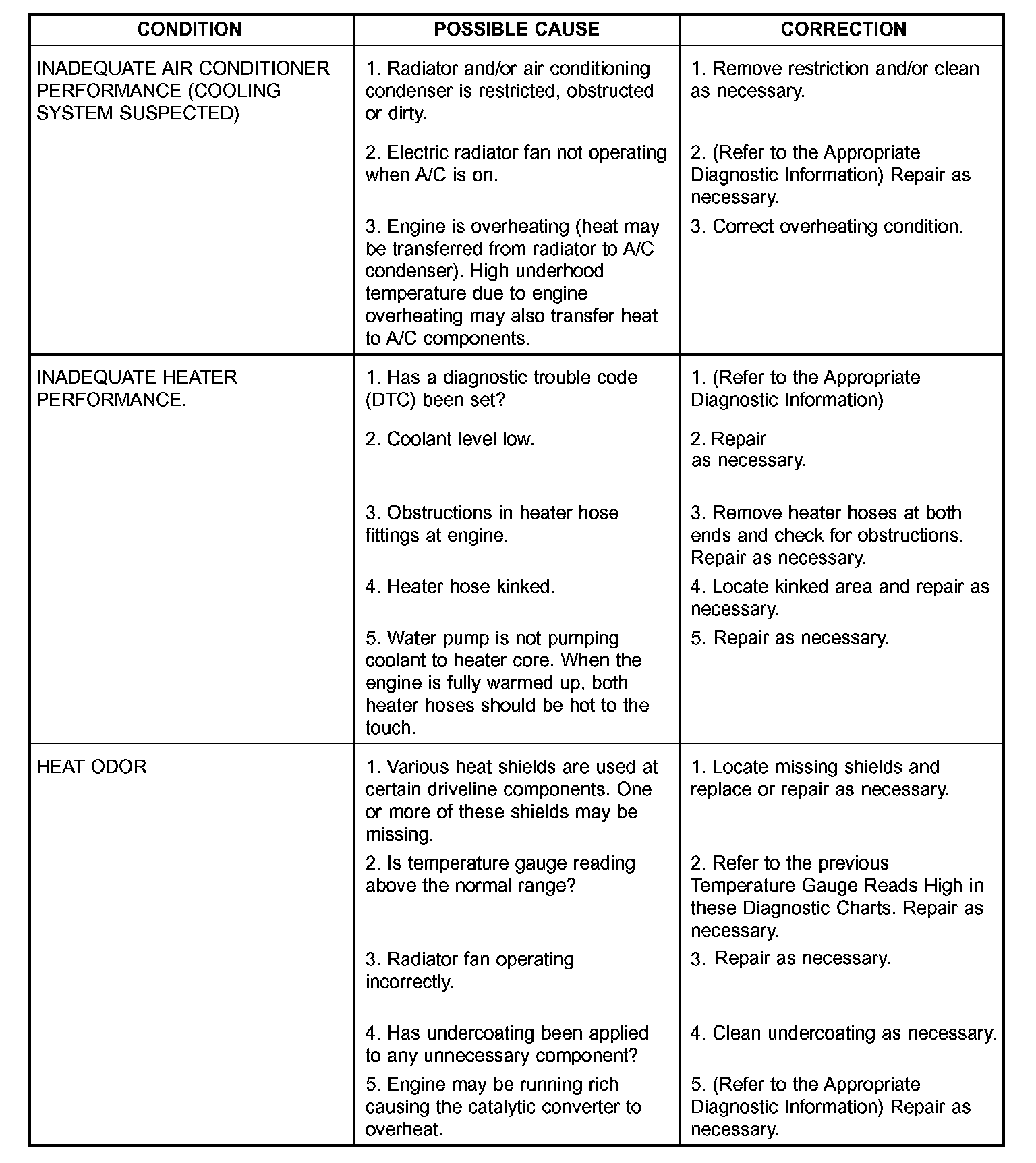

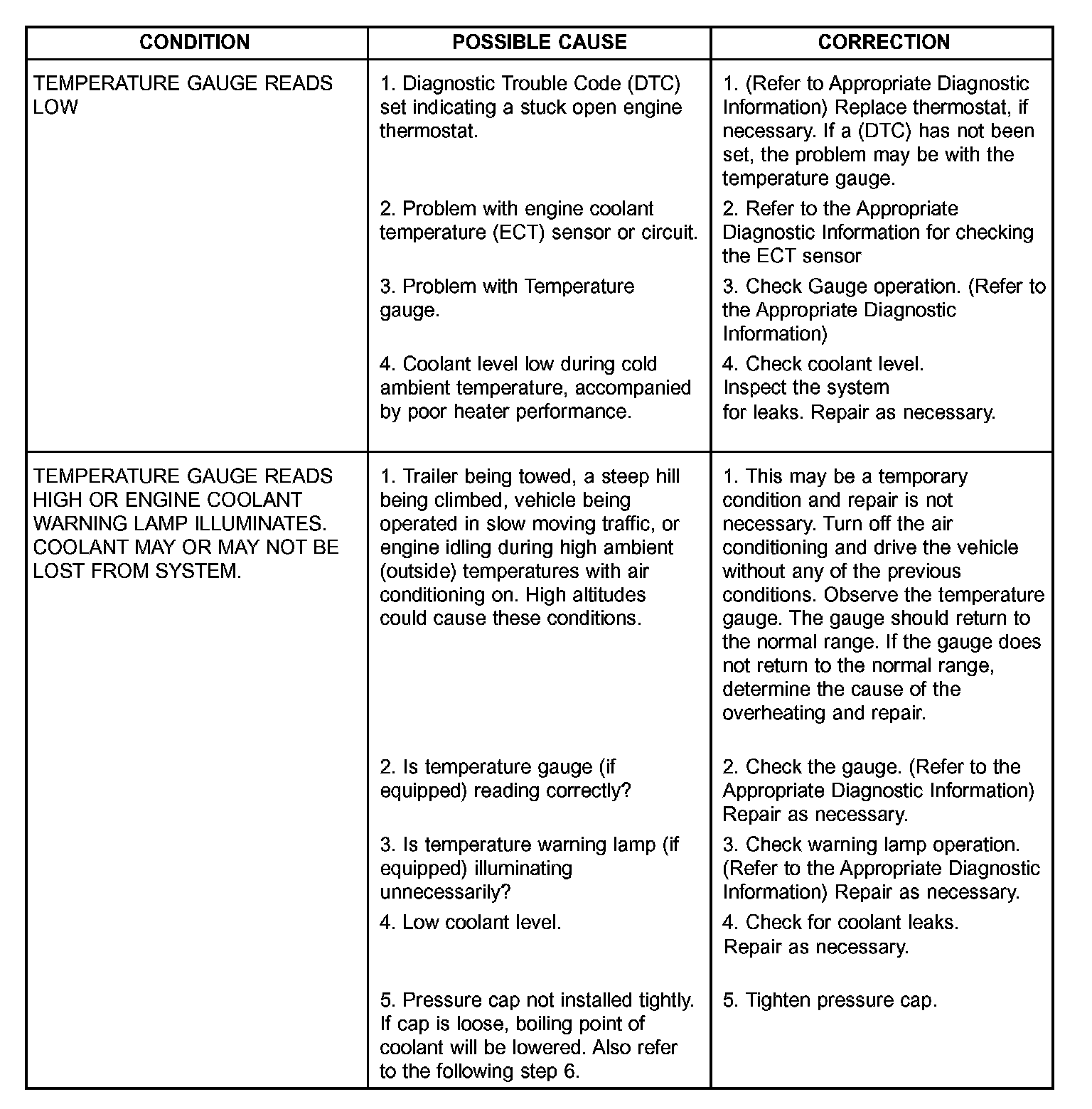

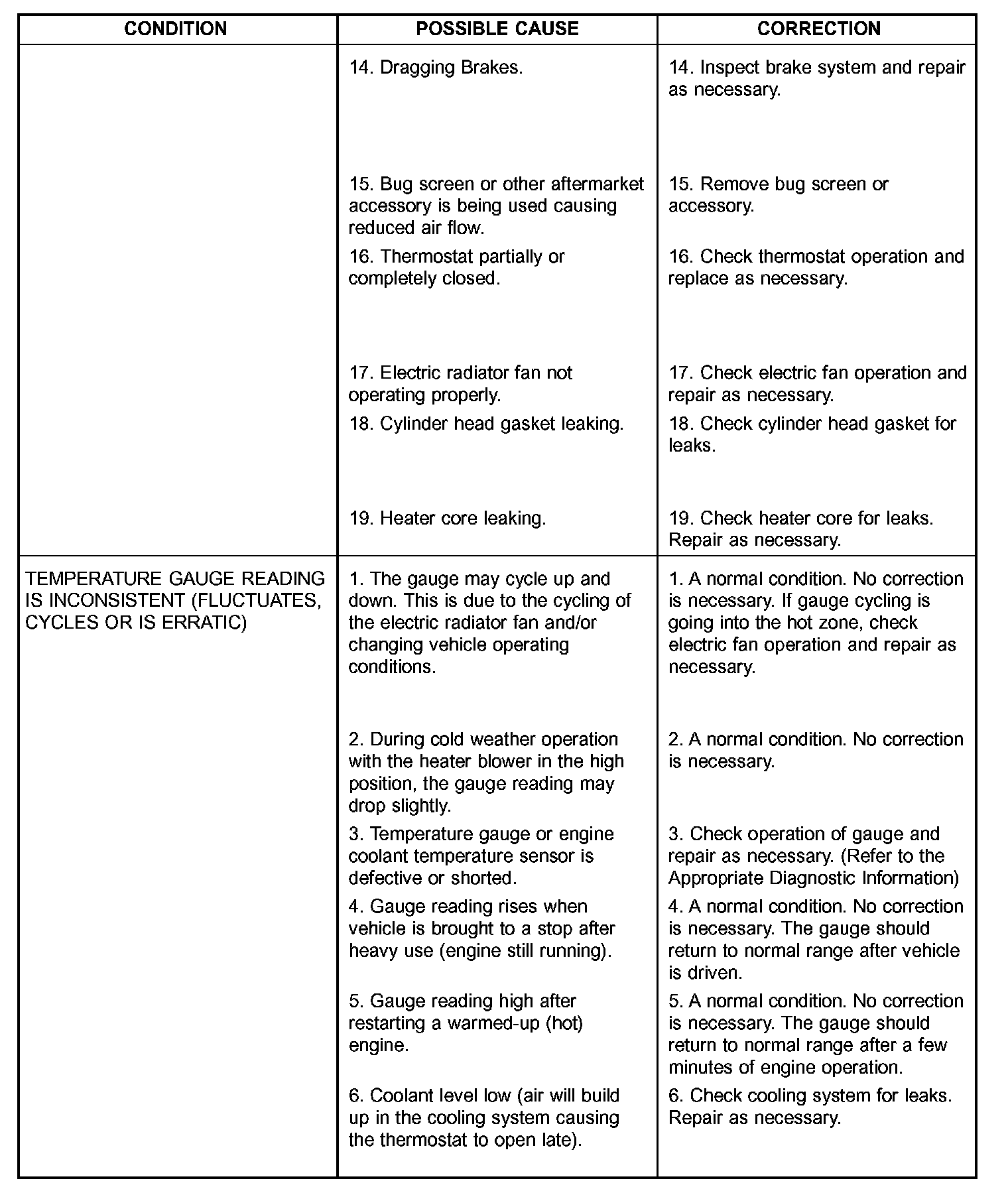

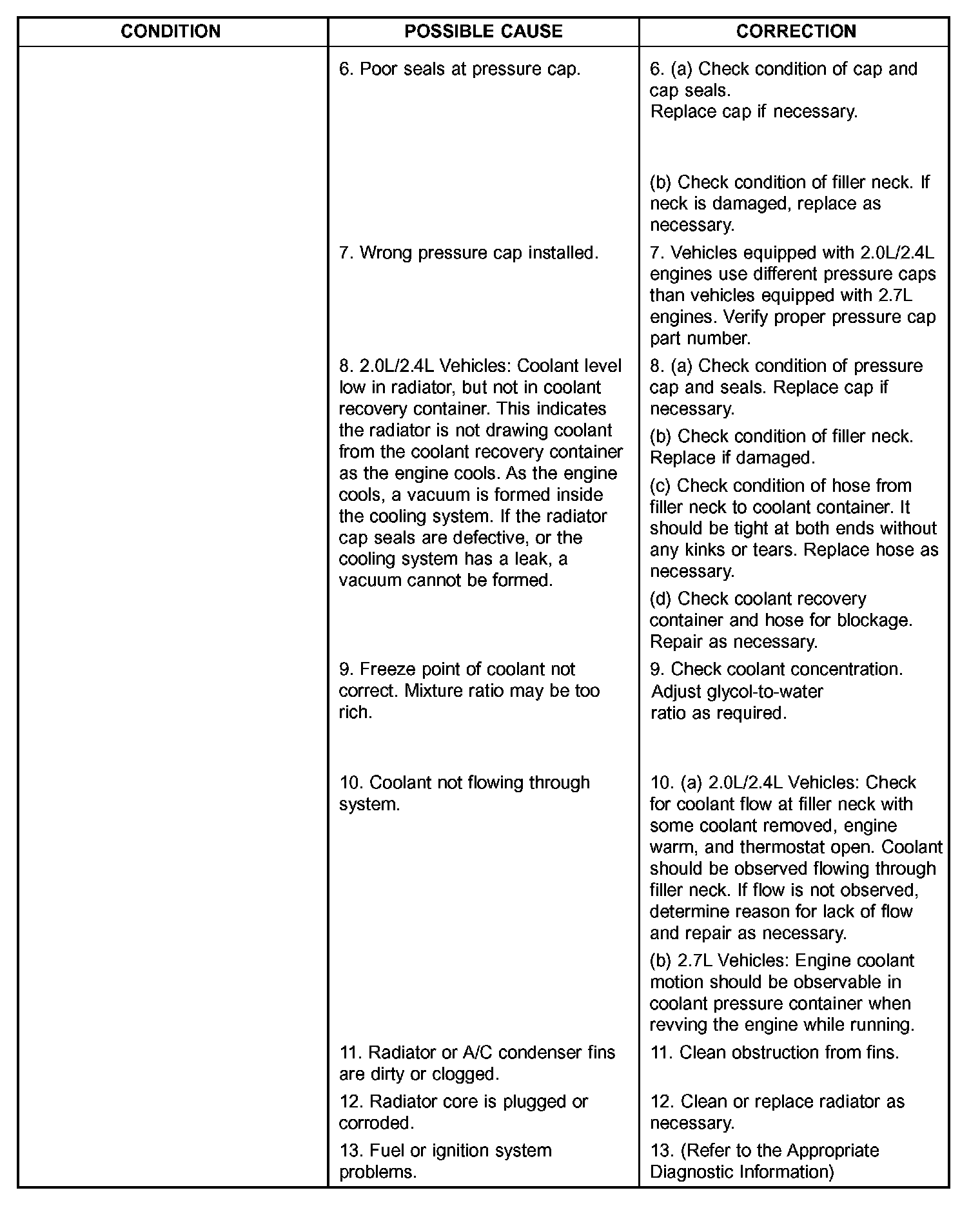

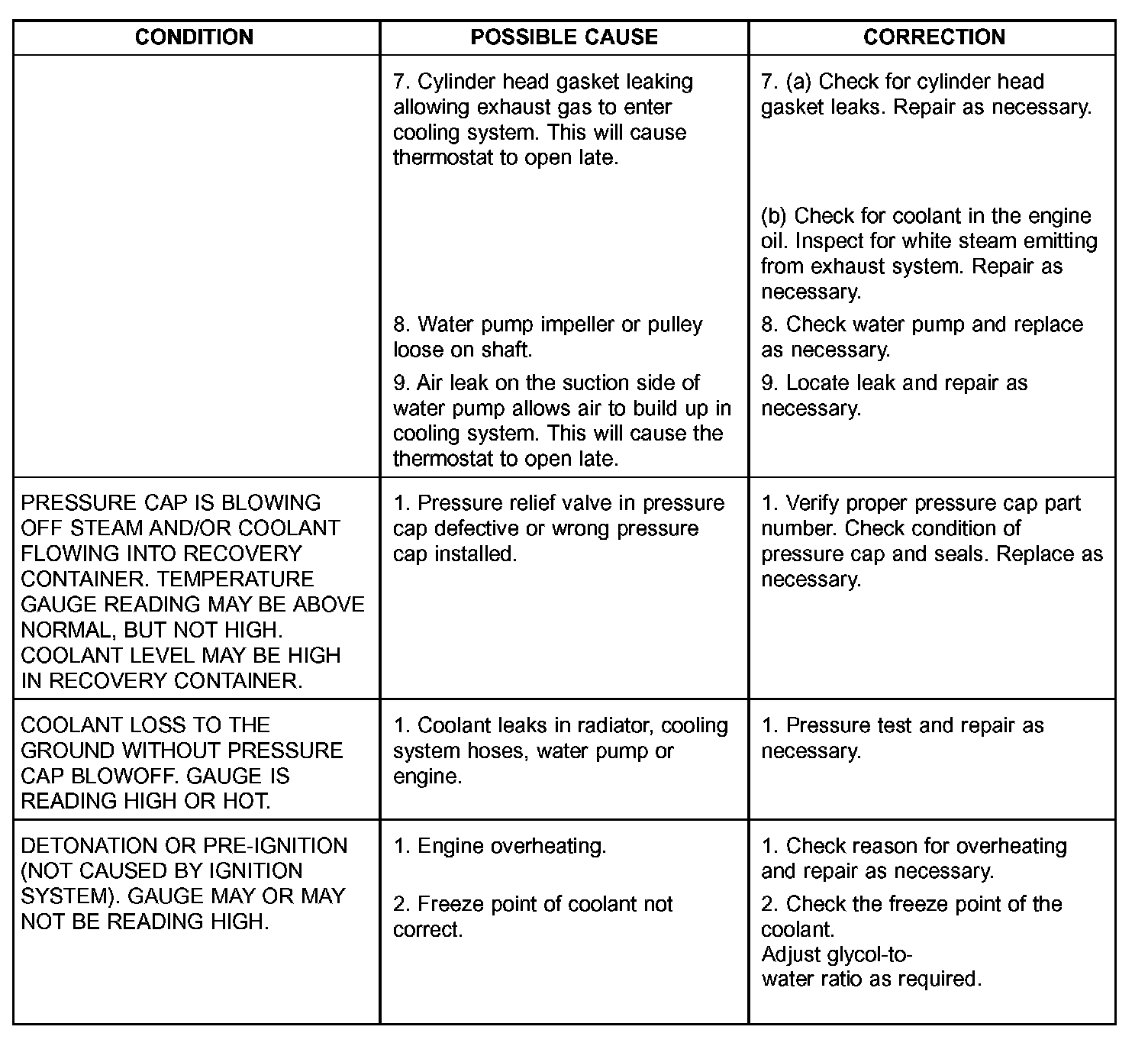

DIAGNOSIS AND TESTING - COOLING SYSTEM DIAGNOSIS
